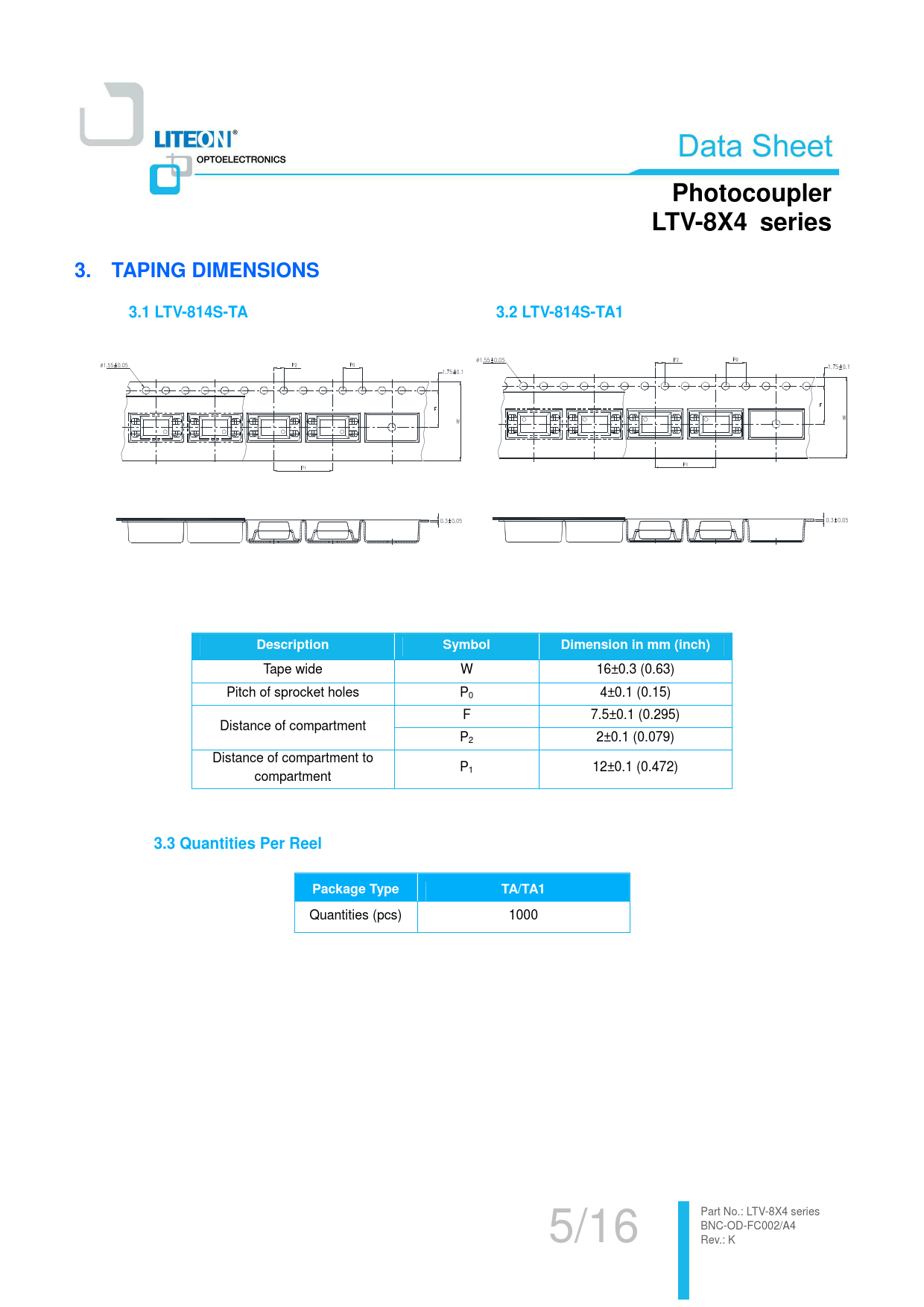

Photocoupler. LTV-8X4 series. 3. TAPING DIMENSIONS. 3.1 LTV-814S-TA 3.2 LTV-814S-TA1. Description. Symbol. Dimension in mm (inch)
Model Line for this Datasheet
Text Version of Document
Photocoupler LTV-8X4 series 3. TAPING DIMENSIONS 3.1 LTV-814S-TA 3.2 LTV-814S-TA1 Description Symbol Dimension in mm (inch)
Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15)
F 7.5±0.1 (0.295) Distance of compartment P2 2±0.1 (0.079)
Distance of compartment to P1 12±0.1 (0.472) compartment
3.3 Quantities Per Reel Package Type TA/TA1
Quantities (pcs) 1000
