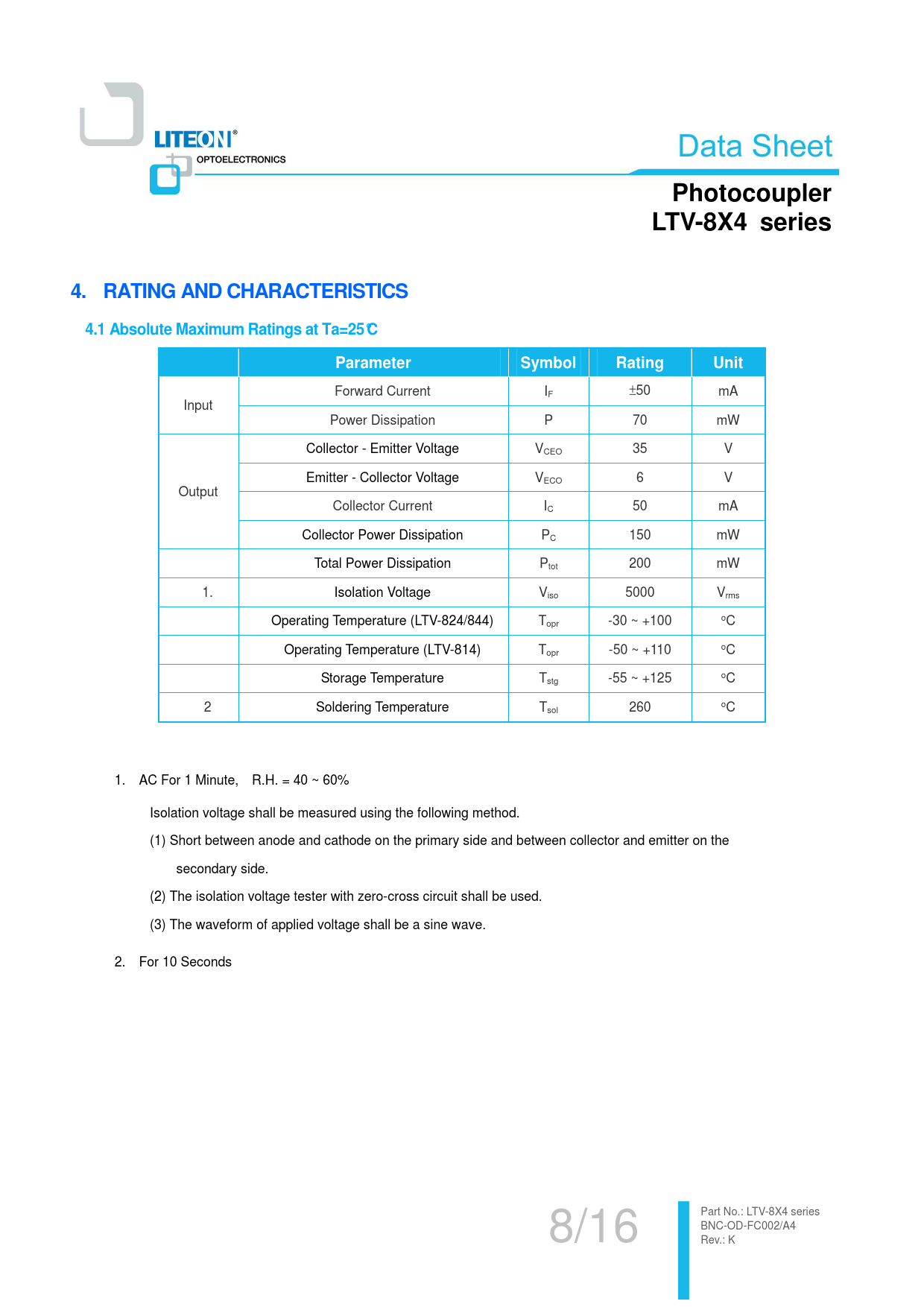

Photocoupler. LTV-8X4 series. 4. RATING AND CHARACTERISTICS. 4.1 Absolute Maximum Ratings at Ta=25°C. Parameter. Symbol. Rating. Unit
Model Line for this Datasheet
Text Version of Document
Photocoupler LTV-8X4 series 4. RATING AND CHARACTERISTICS 4.1 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Rating Unit
Forward Current IF ±50 mA Input Power Dissipation P 70 mW Collector - Emitter Voltage VCEO 35 V Emitter - Collector Voltage VECO 6 V Output Collector Current IC 50 mA Collector Power Dissipation PC 150 mW Total Power Dissipation Ptot 200 mW 1. Isolation Voltage Viso 5000 Vrms Operating Temperature (LTV-824/844) Topr -30 ~ +100 oC Operating Temperature (LTV-814) Topr -50 ~ +110 oC Storage Temperature Tstg -55 ~ +125 oC 2 Soldering Temperature Tsol 260 oC 1. AC For 1 Minute, R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. 2. For 10 Seconds
8/16 P art N o.: L TV-8 X4 s eries BNC-OD-FC002/A4 Rev.: K
Forward Current IF ±50 mA Input Power Dissipation P 70 mW Collector - Emitter Voltage VCEO 35 V Emitter - Collector Voltage VECO 6 V Output Collector Current IC 50 mA Collector Power Dissipation PC 150 mW Total Power Dissipation Ptot 200 mW 1. Isolation Voltage Viso 5000 Vrms Operating Temperature (LTV-824/844) Topr -30 ~ +100 oC Operating Temperature (LTV-814) Topr -50 ~ +110 oC Storage Temperature Tstg -55 ~ +125 oC 2 Soldering Temperature Tsol 260 oC 1. AC For 1 Minute, R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. 2. For 10 Seconds
8/16 P art N o.: L TV-8 X4 s eries BNC-OD-FC002/A4 Rev.: K
