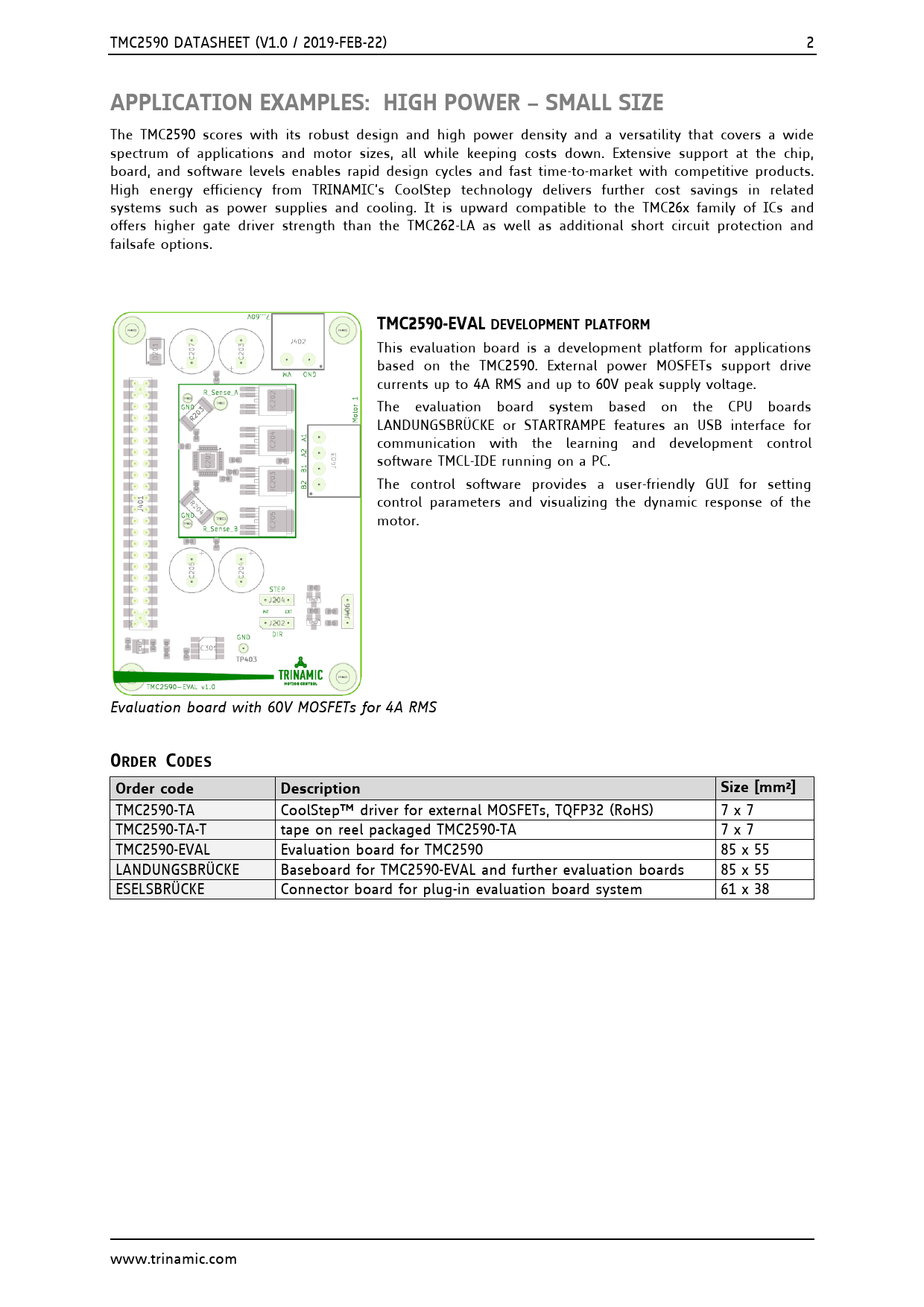

APPLICATION EXAMPLES: HIGH POWER – SMALL SIZE
The TMC2590 scores with its robust design and high power density and a versatility that covers a wide spectrum of applications and motor sizes, all while keeping costs down. Extensive support at the chip, board, and software levels enables rapid design cycles and fast time-to-market with competitive products. High energy efficiency from TRINAMIC’s CoolStep technology delivers further cost savings in related systems such as power supplies and cooling. It is upward compatible to the TMC26x family of ICs and offers higher gate driver strength than the TMC262-LA as well as additional short circuit protection and failsafe options.
TMC2590-EVAL DEVELOPMENT PLATFORM
This evaluation board is a development platform for applications based on the TMC2590. External power MOSFETs support drive currents up to 4A RMS and up to 60V peak supply voltage. The evaluation board system based on the CPU boards LANDUNGSBRÜCKE or STARTRAMPE features an USB interface for communication with the learning and development control software TMCL-IDE running on a PC. The control software provides a user-friendly GUI for setting control parameters and visualizing the dynamic response of the motor. Evaluation board with 60V MOSFETs for 4A RMS
ORDER CODES Order code Description Size [mm²]
TMC2590-TA CoolStep™ driver for external MOSFETs, TQFP32 (RoHS) 7 x 7 TMC2590-TA-T tape on reel packaged TMC2590-TA 7 x 7 TMC2590-EVAL Evaluation board for TMC2590 85 x 55 LANDUNGSBRÜCKE Baseboard for TMC2590-EVAL and further evaluation boards 85 x 55 ESELSBRÜCKE Connector board for plug-in evaluation board system 61 x 38
