TPS7A02 www.ti.com
SBVS277 – JULY 2019
7 Detailed Description 7.1 Overview
The TPS7A02 is a ultra-low IQ linear voltage regulator that is optimized for excellent transient performance. These characteristics make the device ideal for most battery-powered applications. This low-dropout linear regulator (LDO) offers optional active discharge, foldback current limit, shutdown, and thermal protection.

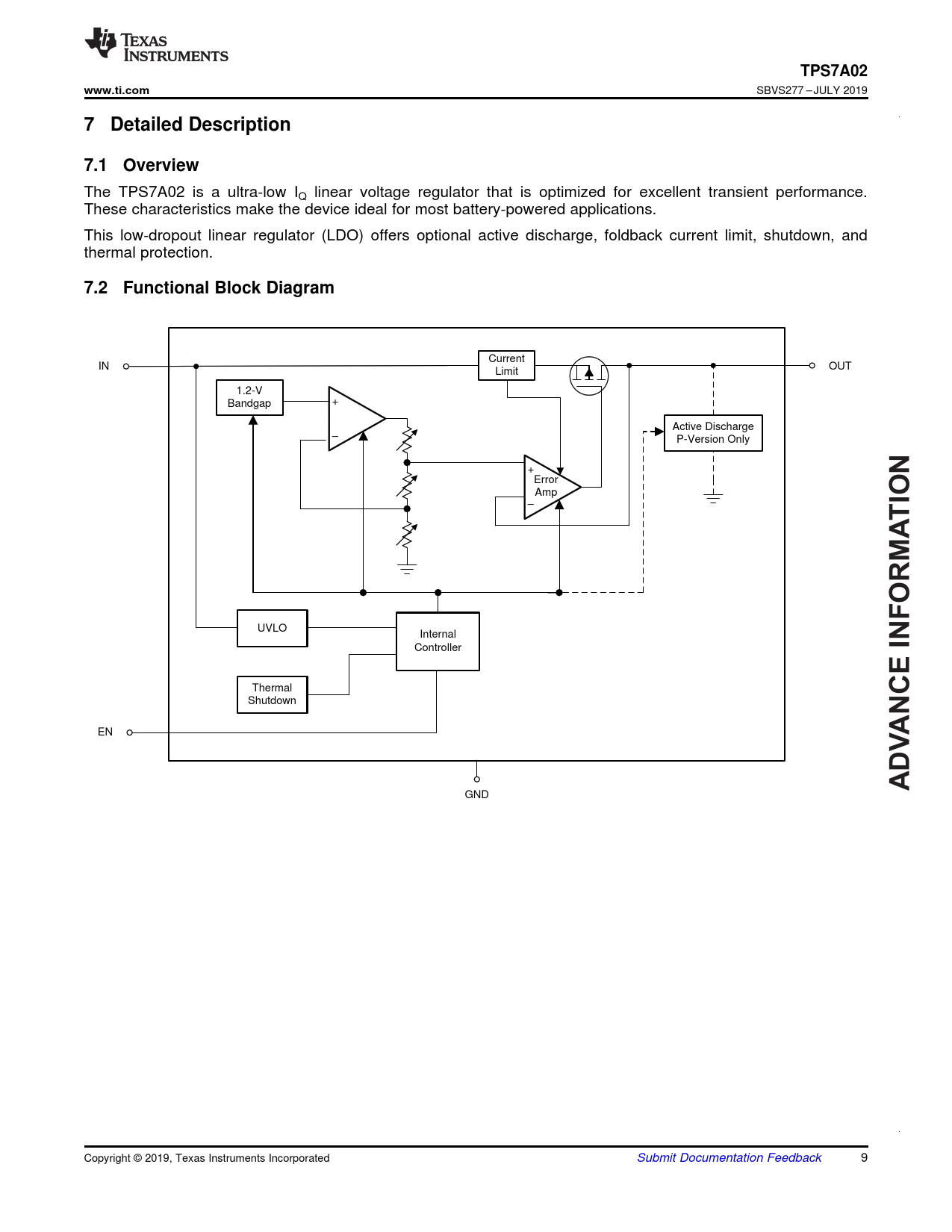

7.2 Functional Block Diagram
Current IN OUT Limit 1.2-V Bandgap + Active Discharge ± P-Version Only + Error Amp ±
TION
UVLO Internal Controller Thermal Shutdown
ANCEINFORMA
EN
ADV
