Data Sheet Very High CMR, Wide VCC Logic Gate Optocouplers

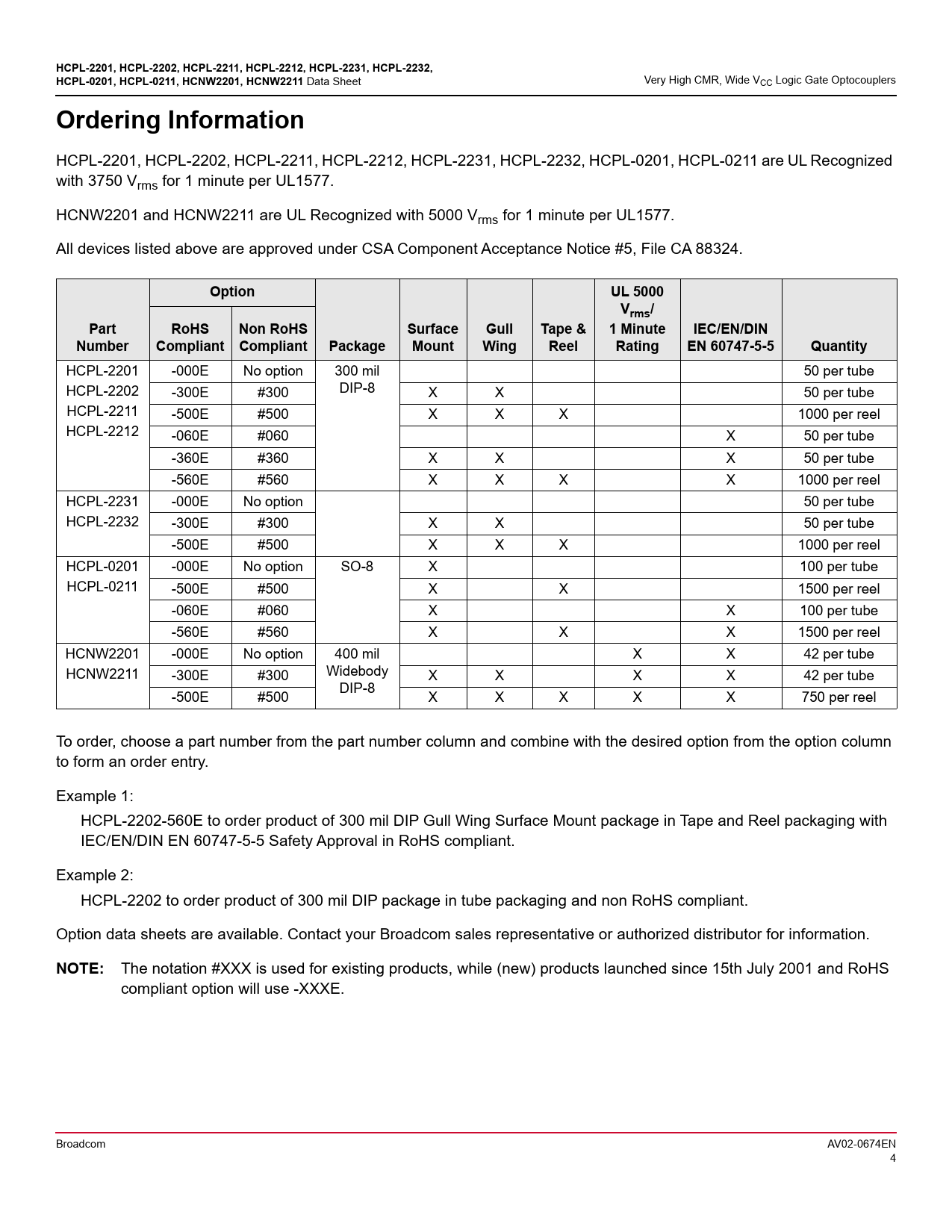

Ordering Information
HCPL-2201, HCPL-2202, HCPL-2211, HCPL-2212, HCPL-2231, HCPL-2232, HCPL-0201, HCPL-0211 are UL Recognized with 3750 Vrms for 1 minute per UL1577. HCNW2201 and HCNW2211 are UL Recognized with 5000 Vrms for 1 minute per UL1577. All devices listed above are approved under CSA Component Acceptance Notice #5, File CA 88324.
Option UL 5000 Vrms/ Part RoHS Non RoHS Surface Gull Tape & 1 Minute IEC/EN/DIN Number Compliant Compliant Package Mount Wing Reel Rating EN 60747-5-5 Quantity
HCPL-2201 -000E No option 300 mil 50 per tube HCPL-2202 DIP-8 -300E #300 X X 50 per tube HCPL-2211 -500E #500 X X X 1000 per reel HCPL-2212 -060E #060 X 50 per tube -360E #360 X X X 50 per tube -560E #560 X X X X 1000 per reel HCPL-2231 -000E No option 50 per tube HCPL-2232 -300E #300 X X 50 per tube -500E #500 X X X 1000 per reel HCPL-0201 -000E No option SO-8 X 100 per tube HCPL-0211 -500E #500 X X 1500 per reel -060E #060 X X 100 per tube -560E #560 X X X 1500 per reel HCNW2201 -000E No option 400 mil X X 42 per tube HCNW2211 Widebody -300E #300 X X X X 42 per tube DIP-8 -500E #500 X X X X X 750 per reel To order, choose a part number from the part number column and combine with the desired option from the option column to form an order entry. Example 1: HCPL-2202-560E to order product of 300 mil DIP Gull Wing Surface Mount package in Tape and Reel packaging with IEC/EN/DIN EN 60747-5-5 Safety Approval in RoHS compliant. Example 2: HCPL-2202 to order product of 300 mil DIP package in tube packaging and non RoHS compliant. Option data sheets are available. Contact your Broadcom sales representative or authorized distributor for information.
NOTE:
The notation #XXX is used for existing products, while (new) products launched since 15th July 2001 and RoHS compliant option will use -XXXE. Broadcom AV02-0674EN 4 Document Outline Description Features Applications Functional Diagram Selection Guide Schematic Ordering Information Package Outline Drawings 8-Pin DIP Package (HCPL-2201/02/11/12/31/32) 8-Pin DIP Package with Gull Wing Surface Mount Option 300 (HCPL-2201/02/11/12/31/32) Small-Outline SO-8 Package (HCPL-0201/11) 8-Pin Widebody DIP Package (HCNW2201/11) 8-Pin Widebody DIP Package with Gull Wing Surface Mount Option 300 (HCNW2201/11) Solder Reflow Profile Regulatory Information Insulation and Safety Related Specifications IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (Option 060) IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (HCNW22xx Option 060 ONLY) Absolute Maximum Ratings Recommended Operating Conditions Electrical Specifications Switching Specifications (AC) Package Characteristics
