PRODUCT SUMMARY. SKY65728-11: Shielded Low-Noise Amplifier Front-End Module with GPS L5 Pre-Filter. Applications. Features
Model Line for this Datasheet
Text Version of Document
PRODUCT SUMMARY SKY65728-11: Shielded Low-Noise Amplifier Front-End Module with GPS L5 Pre-Filter Applications
GPS L5 radio receivers Fitness/activity trackers Smartphones Laptop PCs and tablets
Features
Innovative proprietary shielded technology Wideband pre-filter

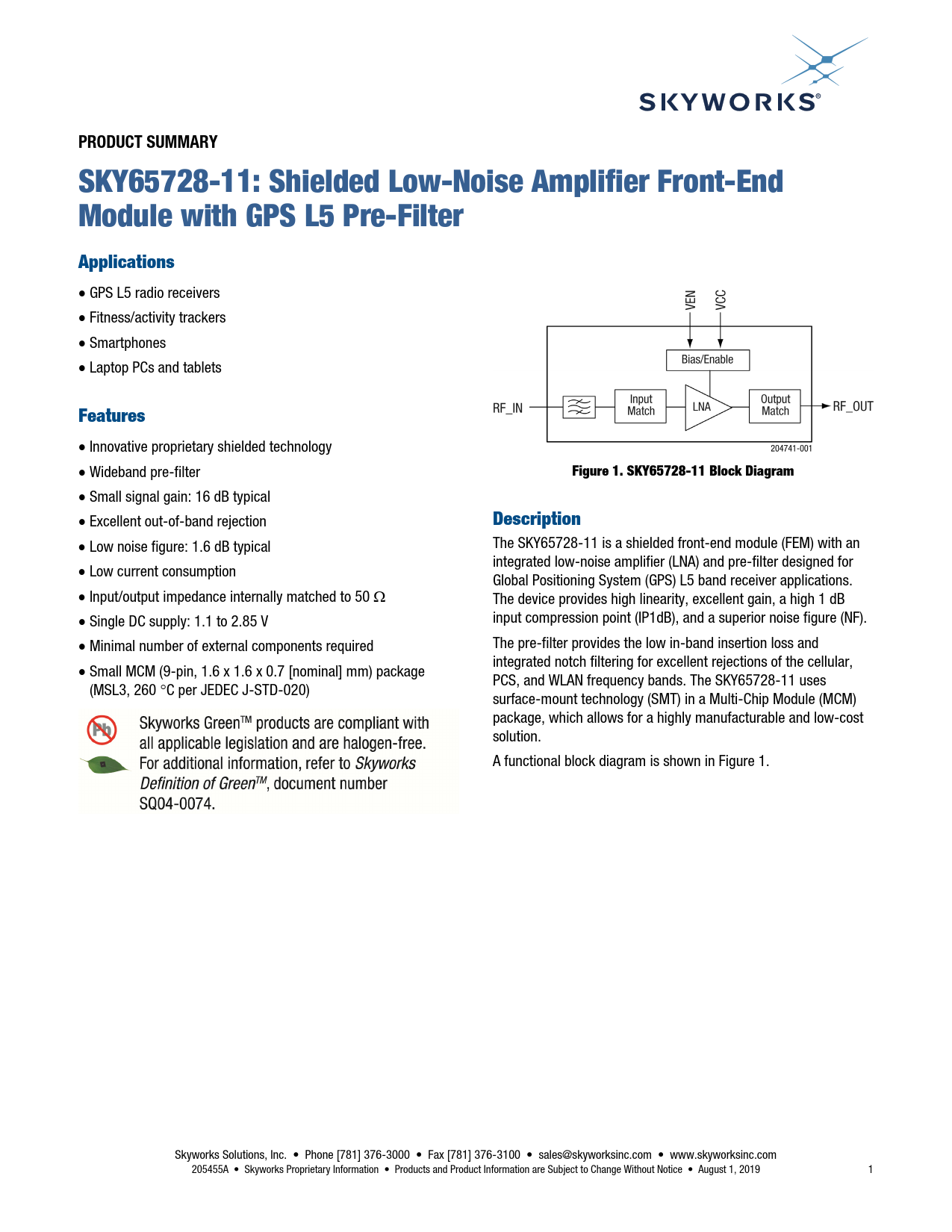

Figure 1. SKY65728-11 Block Diagram
Small signal gain: 16 dB typical Excellent out-of-band rejection
Description
Low noise figure: 1.6 dB typical The SKY65728-11 is a shielded front-end module (FEM) with an integrated low-noise amplifier (LNA) and pre-filter designed for Low current consumption Global Positioning System (GPS) L5 band receiver applications. Input/output impedance internally matched to 50 The device provides high linearity, excellent gain, a high 1 dB Single DC supply: 1.1 to 2.85 V input compression point (IP1dB), and a superior noise figure (NF). Minimal number of external components required The pre-filter provides the low in-band insertion loss and integrated notch filtering for excellent rejections of the cellular, Small MCM (9-pin, 1.6 x 1.6 x 0.7 [nominal] mm) package PCS, and WLAN frequency bands. The SKY65728-11 uses (MSL3, 260 C per JEDEC J-STD-020) surface-mount technology (SMT) in a Multi-Chip Module (MCM) package, which allows for a highly manufacturable and low-cost solution. A functional block diagram is shown in Figure 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 205455A • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • August 1, 2019 1
