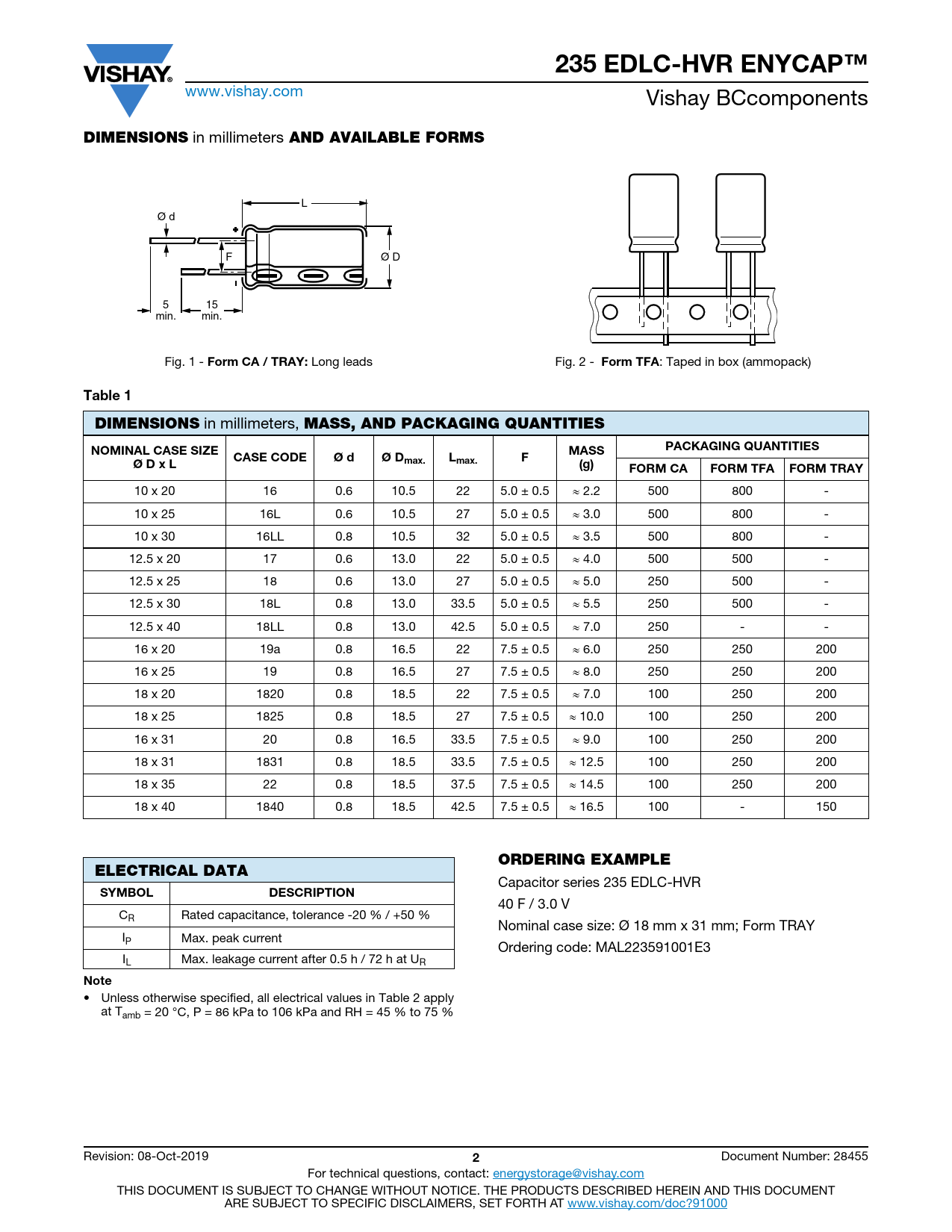

235 EDLC-HVR ENYCAP™. DIMENSIONS. AND AVAILABLE FORMS. Form CA / TRAY:. Form TFA. Table 1. MASS, AND PACKAGING QUANTITIES
Model Line for this Datasheet
- MAL223531001E3 MAL223531002E3 MAL223531003E3 MAL223531004E3 MAL223531006E3 MAL223531007E3 MAL223531008E3 MAL223531011E3 MAL223531012E3 MAL223531013E3 MAL223531014E3 MAL223531015E3 MAL223531016E3 MAL223551001E3 MAL223551002E3 MAL223551003E3 MAL223551004E3 MAL223551006E3 MAL223551007E3 MAL223551008E3 MAL223551009E3 MAL223551011E3 MAL223551012E3 MAL223551013E3 MAL223551014E3 MAL223551015E3 MAL223551016E3 MAL223551017E3 MAL223591001E3
Text Version of Document
235 EDLC-HVR ENYCAP™
www.vishay.com Vishay BCcomponents
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
L Ø d F Ø D 5 15 min. min. Fig. 1 -
Form CA / TRAY:
Long leads Fig. 2 -
Form TFA
: Taped in box (ammopack)
Table 1 DIMENSIONS
in millimeters,
MASS, AND PACKAGING QUANTITIES NOMINAL CASE SIZE MASS PACKAGING QUANTITIES CASE CODE Ø d Ø D Ø D x L max. Lmax. F (g) FORM CA FORM TFA FORM TRAY
10 x 20 16 0.6 10.5 22 5.0 ± 0.5 2.2 500 800 - 10 x 25 16L 0.6 10.5 27 5.0 ± 0.5 3.0 500 800 - 10 x 30 16LL 0.8 10.5 32 5.0 ± 0.5 3.5 500 800 - 12.5 x 20 17 0.6 13.0 22 5.0 ± 0.5 4.0 500 500 - 12.5 x 25 18 0.6 13.0 27 5.0 ± 0.5 5.0 250 500 - 12.5 x 30 18L 0.8 13.0 33.5 5.0 ± 0.5 5.5 250 500 - 12.5 x 40 18LL 0.8 13.0 42.5 5.0 ± 0.5 7.0 250 - - 16 x 20 19a 0.8 16.5 22 7.5 ± 0.5 6.0 250 250 200 16 x 25 19 0.8 16.5 27 7.5 ± 0.5 8.0 250 250 200 18 x 20 1820 0.8 18.5 22 7.5 ± 0.5 7.0 100 250 200 18 x 25 1825 0.8 18.5 27 7.5 ± 0.5 10.0 100 250 200 16 x 31 20 0.8 16.5 33.5 7.5 ± 0.5 9.0 100 250 200 18 x 31 1831 0.8 18.5 33.5 7.5 ± 0.5 12.5 100 250 200 18 x 35 22 0.8 18.5 37.5 7.5 ± 0.5 14.5 100 250 200 18 x 40 1840 0.8 18.5 42.5 7.5 ± 0.5 16.5 100 - 150
ORDERING EXAMPLE ELECTRICAL DATA
Capacitor series 235 EDLC-HVR
SYMBOL DESCRIPTION
40 F / 3.0 V CR Rated capacitance, tolerance -20 % / +50 % Nominal case size: Ø 18 mm x 31 mm; Form TRAY IP Max. peak current Ordering code: MAL223591001E3 IL Max. leakage current after 0.5 h / 72 h at UR
Note
• Unless otherwise specified, all electrical values in Table 2 apply at Tamb = 20 °C, P = 86 kPa to 106 kPa and RH = 45 % to 75 % Revision: 08-Oct-2019
2
Document Number: 28455 For technical questions, contact: energystorage@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
