235 EDLC-HVR ENYCAP™. Table 2. ELECTRICAL DATA AND ORDERING INFORMATION. MAX. STORED. SPECIFIC. LEAKAGE. UMT (1) UCT (2). NOMINAL. ENERGY
Model Line for this Datasheet
- MAL223531001E3 MAL223531002E3 MAL223531003E3 MAL223531004E3 MAL223531006E3 MAL223531007E3 MAL223531008E3 MAL223531011E3 MAL223531012E3 MAL223531013E3 MAL223531014E3 MAL223531015E3 MAL223531016E3 MAL223551001E3 MAL223551002E3 MAL223551003E3 MAL223551004E3 MAL223551006E3 MAL223551007E3 MAL223551008E3 MAL223551009E3 MAL223551011E3 MAL223551012E3 MAL223551013E3 MAL223551014E3 MAL223551015E3 MAL223551016E3 MAL223551017E3 MAL223591001E3
Text Version of Document
235 EDLC-HVR ENYCAP™
www.vishay.com Vishay BCcomponents

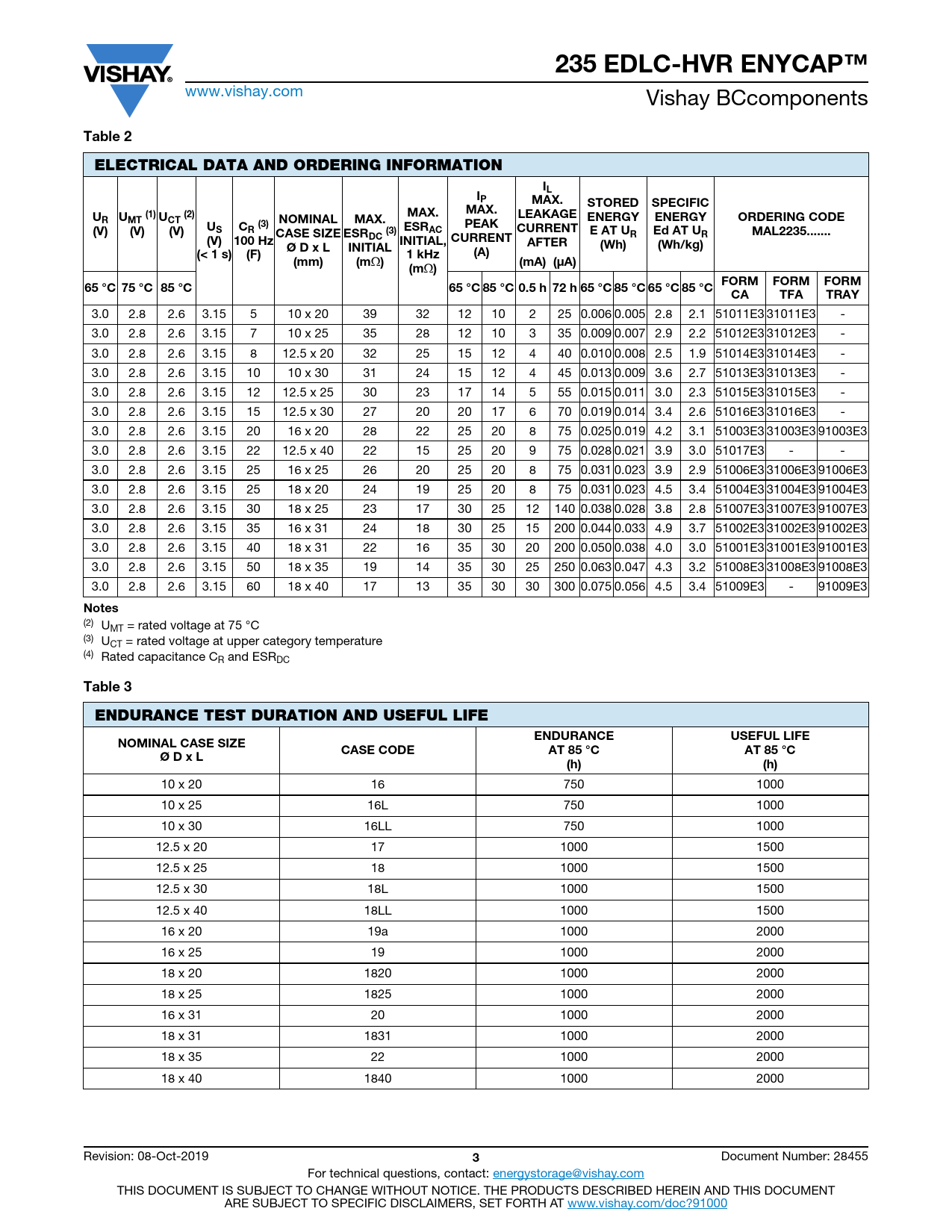

Table 2 ELECTRICAL DATA AND ORDERING INFORMATION IL IP MAX. STORED SPECIFIC MAX. U MAX. LEAKAGE R UMT (1) UCT (2) NOMINAL MAX. ENERGY ENERGY ORDERING CODE PEAK (V) (V) (V) US CR (3) ESR CASE SIZE ESR AC CURRENT E AT UR Ed AT UR MAL2235... (V) 100 Hz DC (3) INITIAL, CURRENT Ø D x L INITIAL AFTER (Wh) (Wh/kg) (< 1 s) (F) 1 kHz (A) (mm) (m ) (mA) (μA) (m ) FORM FORM FORM 65 °C 75 °C 85 °C 65 °C 85 °C 0.5 h 72 h 65 °C 85 °C 65 °C 85 °C CA TFA TRAY
3.0 2.8 2.6 3.15 5 10 x 20 39 32 12 10 2 25 0.006 0.005 2.8 2.1 51011E3 31011E3 - 3.0 2.8 2.6 3.15 7 10 x 25 35 28 12 10 3 35 0.009 0.007 2.9 2.2 51012E3 31012E3 - 3.0 2.8 2.6 3.15 8 12.5 x 20 32 25 15 12 4 40 0.010 0.008 2.5 1.9 51014E3 31014E3 - 3.0 2.8 2.6 3.15 10 10 x 30 31 24 15 12 4 45 0.013 0.009 3.6 2.7 51013E3 31013E3 - 3.0 2.8 2.6 3.15 12 12.5 x 25 30 23 17 14 5 55 0.015 0.011 3.0 2.3 51015E3 31015E3 - 3.0 2.8 2.6 3.15 15 12.5 x 30 27 20 20 17 6 70 0.019 0.014 3.4 2.6 51016E3 31016E3 - 3.0 2.8 2.6 3.15 20 16 x 20 28 22 25 20 8 75 0.025 0.019 4.2 3.1 51003E3 31003E3 91003E3 3.0 2.8 2.6 3.15 22 12.5 x 40 22 15 25 20 9 75 0.028 0.021 3.9 3.0 51017E3 - - 3.0 2.8 2.6 3.15 25 16 x 25 26 20 25 20 8 75 0.031 0.023 3.9 2.9 51006E3 31006E3 91006E3 3.0 2.8 2.6 3.15 25 18 x 20 24 19 25 20 8 75 0.031 0.023 4.5 3.4 51004E3 31004E3 91004E3 3.0 2.8 2.6 3.15 30 18 x 25 23 17 30 25 12 140 0.038 0.028 3.8 2.8 51007E3 31007E3 91007E3 3.0 2.8 2.6 3.15 35 16 x 31 24 18 30 25 15 200 0.044 0.033 4.9 3.7 51002E3 31002E3 91002E3 3.0 2.8 2.6 3.15 40 18 x 31 22 16 35 30 20 200 0.050 0.038 4.0 3.0 51001E3 31001E3 91001E3 3.0 2.8 2.6 3.15 50 18 x 35 19 14 35 30 25 250 0.063 0.047 4.3 3.2 51008E3 31008E3 91008E3 3.0 2.8 2.6 3.15 60 18 x 40 17 13 35 30 30 300 0.075 0.056 4.5 3.4 51009E3 - 91009E3
Notes
(2) UMT = rated voltage at 75 °C (3) UCT = rated voltage at upper category temperature (4) Rated capacitance CR and ESRDC
Table 3 ENDURANCE TEST DURATION AND USEFUL LIFE ENDURANCE USEFUL LIFE NOMINAL CASE SIZE CASE CODE AT 85 °C AT 85 °C Ø D x L (h) (h)
10 x 20 16 750 1000 10 x 25 16L 750 1000 10 x 30 16LL 750 1000 12.5 x 20 17 1000 1500 12.5 x 25 18 1000 1500 12.5 x 30 18L 1000 1500 12.5 x 40 18LL 1000 1500 16 x 20 19a 1000 2000 16 x 25 19 1000 2000 18 x 20 1820 1000 2000 18 x 25 1825 1000 2000 16 x 31 20 1000 2000 18 x 31 1831 1000 2000 18 x 35 22 1000 2000 18 x 40 1840 1000 2000 Revision: 08-Oct-2019
3
Document Number: 28455 For technical questions, contact: energystorage@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
