Datasheet TB67B000HG (Toshiba) - 5
| Manufacturer | Toshiba |
| Description | Bi-CMOS Power Integrated Circuit Multi-Chip Package (MCP). High voltage 3-Phase Full-Wave Sine-Wave PWM Brushless Motor Driver |
| Pages / Page | 32 / 5 — Input/Output Equivalent Circuits |
| File Format / Size | PDF / 464 Kb |
| Document Language | English |
Input/Output Equivalent Circuits
Model Line for this Datasheet
Text Version of Document
TB67B000HG
Input/Output Equivalent Circuits

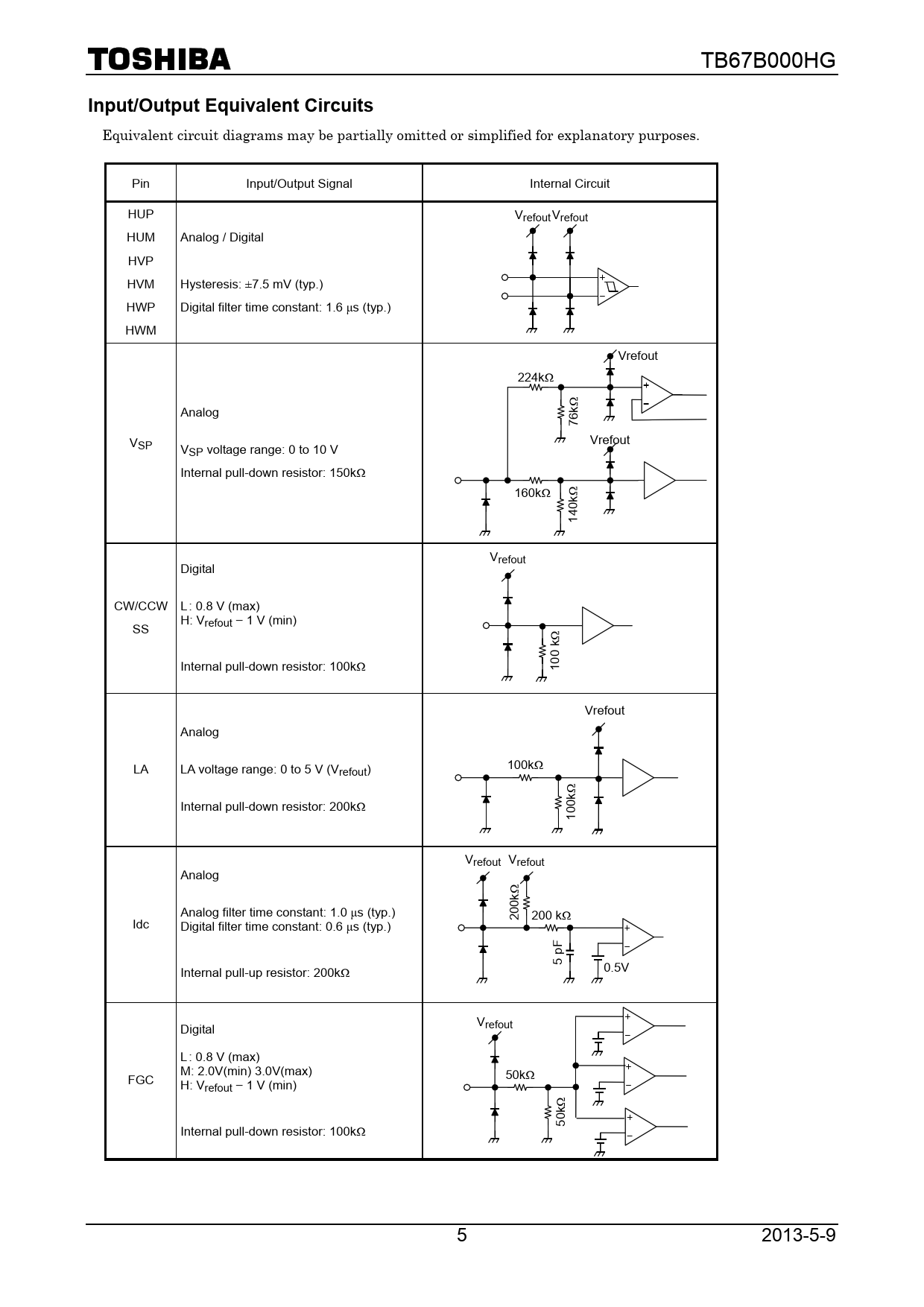

Equivalent circuit diagrams may be partially omitted or simplified for explanatory purposes. Pin Input/Output Signal Internal Circuit HUP VrefoutVrefout HUM Analog / Digital HVP HVM Hysteresis: ±7.5 mV (typ.) HWP Digital filter time constant: 1.6 μs (typ.) HWM Vrefout 224kΩ Ω Analog 76k VSP Vrefout VSP voltage range: 0 to 10 V Internal pull-down resistor: 150kΩ 160kΩ Ω 140k Vrefout Digital CW/CCW L : 0.8 V (max) H: V SS refout − 1 V (min) Ω Internal pull-down resistor: 100kΩ 100 k Vrefout Analog LA LA voltage range: 0 to 5 V (V 100kΩ refout) Ω Internal pull-down resistor: 200kΩ 100k Vrefout Vrefout Analog Ω Analog filter time constant: 1.0 μs (typ.) 200k 200 kΩ Idc Digital filter time constant: 0.6 μs (typ.) 5 pF Internal pull-up resistor: 200kΩ 0.5V V Digital refout L : 0.8 V (max) M: 2.0V(min) 3.0V(max) FGC 50kΩ H: Vrefout − 1 V (min) Ω 50k Internal pull-down resistor: 100kΩ 5 2013-5-9 Document Outline TOSHIBA Bi-CMOS Power Integrated Circuit Multi-Chip Package (MCP) Features Block Diagram Pin Assignment Pin Description Absolute Maximum Ratings (Ta = 25°C) Operating conditions (Ta = 25°C) Package Power Dissipation Electrical Characteristics (Ta = 25°C) Functional Description Timing Chart of FG Signal Timing Chart 1: Output waveform of sine-wave PWM drive Timing Chart 2: Output waveform of sine-wave PWM drive Timing Chart 3: Output waveform of wide-angle commutation Timing Chart 4: Output waveform of wide-angle commutation Timing Chart 5: Output waveform of square-wave drive Timing Chart 6: Output waveform of square-wave drive Timing Chart 7: Output waveform of square-wave drive Timing Chart 8: Output waveform of square-wave drive Application Circuit External Parts Package Dimensions
