PIC16(L)F184XX. Product Brief
Text Version of Document
PIC16(L)F184XX

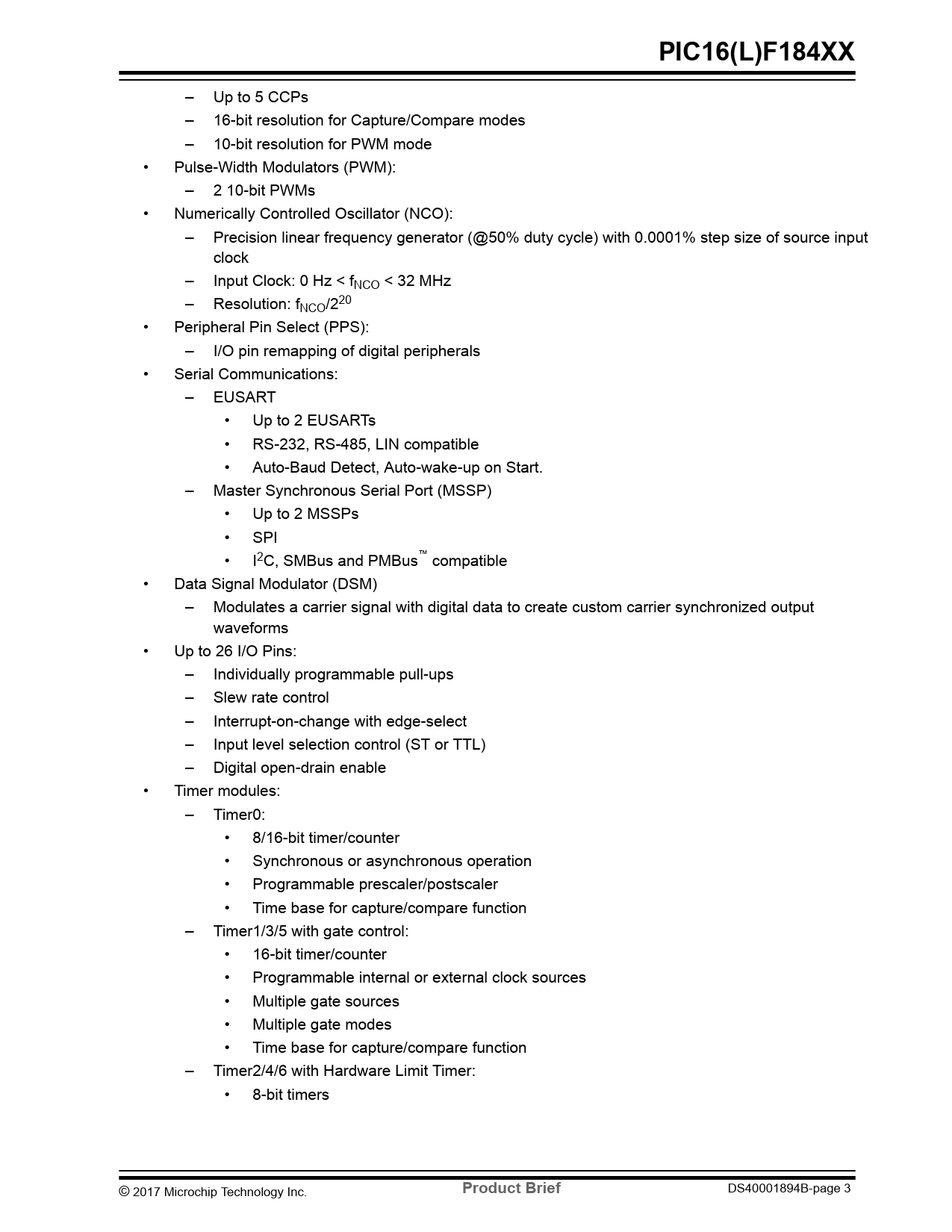

– Up to 5 CCPs – 16-bit resolution for Capture/Compare modes – 10-bit resolution for PWM mode • Pulse-Width Modulators (PWM): – 2 10-bit PWMs • Numerically Controlled Oscillator (NCO): – Precision linear frequency generator (@50% duty cycle) with 0.0001% step size of source input clock – Input Clock: 0 Hz < fNCO < 32 MHz – Resolution: fNCO/220 • Peripheral Pin Select (PPS): – I/O pin remapping of digital peripherals • Serial Communications: – EUSART • Up to 2 EUSARTs • RS-232, RS-485, LIN compatible • Auto-Baud Detect, Auto-wake-up on Start. – Master Synchronous Serial Port (MSSP) • Up to 2 MSSPs • SPI • I2C, SMBus and PMBus™ compatible • Data Signal Modulator (DSM) – Modulates a carrier signal with digital data to create custom carrier synchronized output waveforms • Up to 26 I/O Pins: – Individually programmable pull-ups – Slew rate control – Interrupt-on-change with edge-select – Input level selection control (ST or TTL) – Digital open-drain enable • Timer modules: – Timer0: • 8/16-bit timer/counter • Synchronous or asynchronous operation • Programmable prescaler/postscaler • Time base for capture/compare function – Timer1/3/5 with gate control: • 16-bit timer/counter • Programmable internal or external clock sources • Multiple gate sources • Multiple gate modes • Time base for capture/compare function – Timer2/4/6 with Hardware Limit Timer: • 8-bit timers © 2017 Microchip Technology Inc.
Product Brief
DS40001894B-page 3 Document Outline Description Core Features Memory Operating Characteristics Power-Saving Operation Modes eXtreme Low-Power (XLP) Features Digital Peripherals Analog Peripherals Flexible Oscillator Structure Family Types Packages Pin Diagrams 1. 14/16-Pin Diagrams 2. 20-Pin Diagrams 3. 28-Pin Diagrams Pin Allocation Tables 1. 14/16-Pin Allocation Table 2. 20-Pin Allocation Table 3. 28-Pin Allocation Table The Microchip Web Site Customer Change Notification Service Customer Support Microchip Devices Code Protection Feature Legal Notice Trademarks Quality Management System Certified by DNV Worldwide Sales and Service
