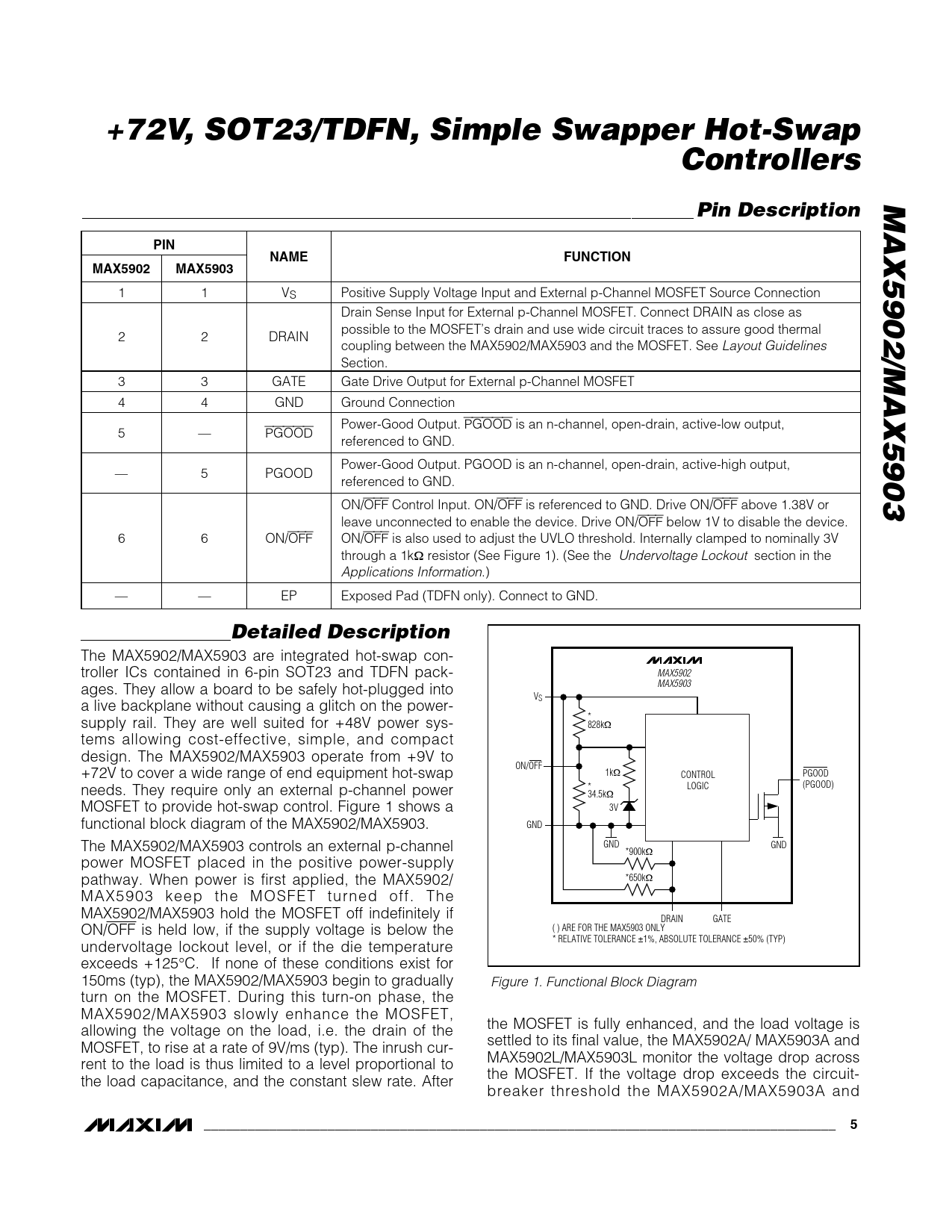

+72V, SOT23/TDFN, Simple Swapper Hot-Swap. Controllers. MAX5902/MAX5903. Pin Description. PIN. NAME. FUNCTION. MAX5902. MAX5903
Model Line for this Datasheet
- MAX5902AAETT+ MAX5902AAETT+T MAX5902AAEUT MAX5902AAEUT+ MAX5902AAEUT+T MAX5902ABEUT MAX5902ABEUT+ MAX5902ABEUT+T MAX5902ACEUT MAX5902ACEUT+ MAX5902ACEUT+T MAX5902ACEUT+TG11 MAX5902ACEUT-T MAX5902LAETT+ MAX5902LAETT+T MAX5902LAEUT MAX5902LAEUT+ MAX5902LAEUT+T MAX5902LAEUT-T MAX5902LBEUT+ MAX5902LBEUT+T MAX5902LCETT+ MAX5902LCETT+T MAX5902LCEUT MAX5902LCEUT+ MAX5902LCEUT+T MAX5902NNETT+ MAX5902NNEUT MAX5902NNEUT+ MAX5902NNEUT+T
- MAX5903AAETT+ MAX5903AAETT+T MAX5903AAEUT+ MAX5903AAEUT+T MAX5903ABETT+ MAX5903ABETT+T MAX5903ABEUT+ MAX5903ABEUT+T MAX5903ACETT+ MAX5903ACETT+T MAX5903ACEUT+ MAX5903ACEUT+T MAX5903LAEUT+ MAX5903LAEUT+T MAX5903LBEUT+ MAX5903LBEUT+T MAX5903LCEUT+ MAX5903LCEUT+T MAX5903NNETT+ MAX5903NNETT+T MAX5903NNEUT+ MAX5903NNEUT+T
Text Version of Document
+72V, SOT23/TDFN, Simple Swapper Hot-Swap Controllers MAX5902/MAX5903 Pin Description PIN NAME FUNCTION MAX5902 MAX5903
1 1 VS Positive Supply Voltage Input and External p-Channel MOSFET Source Connection Drain Sense Input for External p-Channel MOSFET. Connect DRAIN as close as possible to the MOSFET’s drain and use wide circuit traces to assure good thermal 2 2 DRAIN coupling between the MAX5902/MAX5903 and the MOSFET. See Layout Guidelines Section. 3 3 GATE Gate Drive Output for External p-Channel MOSFET 4 4 GND Ground Connection Power-Good Output. PGOOD is an n-channel, open-drain, active-low output, 5 — PGOOD referenced to GND. Power-Good Output. PGOOD is an n-channel, open-drain, active-high output, — 5 PGOOD referenced to GND. ON/OFF Control Input. ON/OFF is referenced to GND. Drive ON/OFF above 1.38V or leave unconnected to enable the device. Drive ON/OFF below 1V to disable the device. 6 6 ON/OFF ON/OFF is also used to adjust the UVLO threshold. Internally clamped to nominally 3V through a 1kΩ resistor (See Figure 1). (See the Undervoltage Lockout section in the Applications Information.) — — EP Exposed Pad (TDFN only). Connect to GND.
