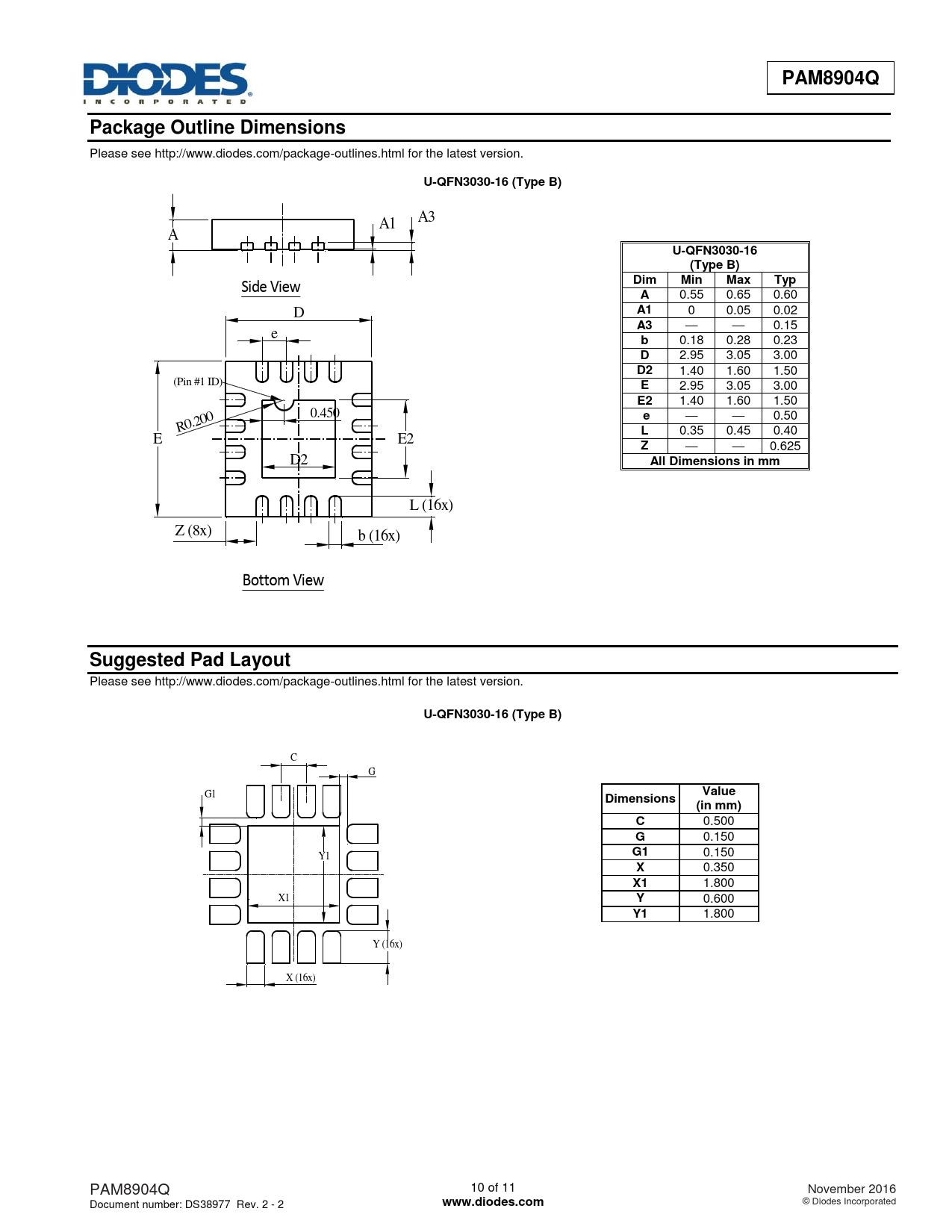

PAM8904Q Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
U-QFN3030-16 (Type B)
A3

A1 A
U-QFN3030-16 (Type B) Dim Min Max Typ
Side View
A
0.55 0.65 0.60
A1
0 0.05 0.02 D
A3
— — 0.15 e
b
0.18 0.28 0.23
D
2.95 3.05 3.00
D2
1.40 1.60 1.50

(Pin #1 ID)
E
2.95 3.05 3.00
E2
1.40 1.60 1.50 0.450
e
— — 0.50

R0.200
L
0.35 0.45 0.40

E E2
Z
— — 0.625

D2
All Dimensions in mm
L (16x)

Z (8x)

b (16x)

Bottom View
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
U-QFN3030-16 (Type B)
C

G
Value
G1
Dimensions (in mm) C
0.500
G
0.150
G1
0.150

Y1
X
0.350
X1
1.800

X1
Y
0.600
Y1
1.800

Y (16x)

X (16x)
