| Pages / Page | 45 / 5 — 4. Pin layout |
| File Format / Size | PDF / 767 Kb |
| Document Language | English |
4. Pin layout
Model Line for this Datasheet
Text Version of Document
TB9045FNG-150
4. Pin layout

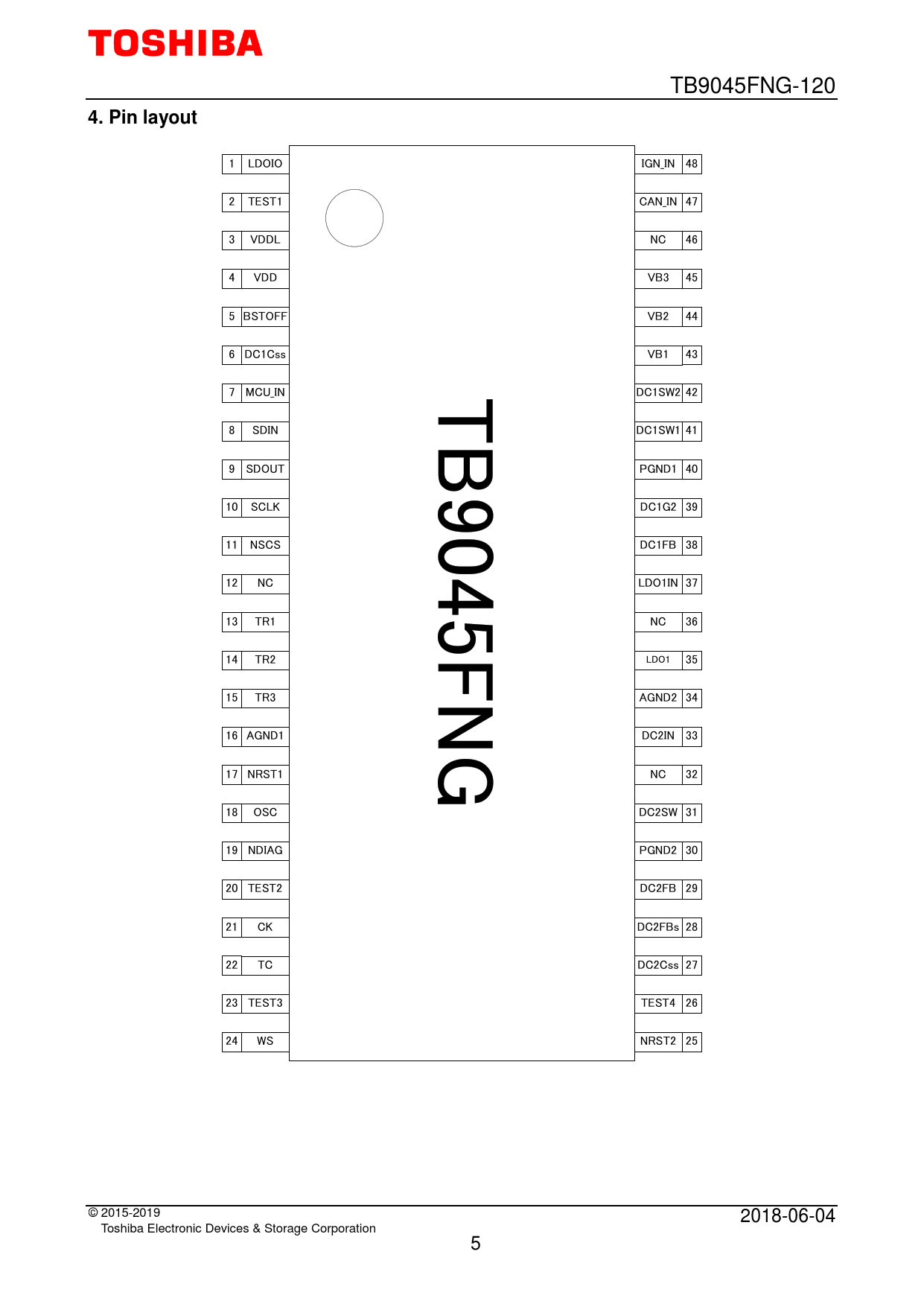

1 LDOIO IGN_IN 48 2 TEST1 CAN_IN 47 3 VDDL NC 46 4 VDD VB3 45 5 BSTOFF VB2 44 6 DC1Css VB1 43 7 MCU_IN DC1SW2 42 8 SDIN DC1SW1 41 9 SDOUT PGND1 40 10 SCLK DC1G2 39 11 NSCS DC1FB 38 12 NC LDO1IN 37 13 TR1 NC 36 14 TR2 LDO1 35 15 TR3 AGND2 34 16 AGND1 DC2IN 33 17 NRST1 NC 32 18 OSC DC2SW 31 19 NDIAG PGND2 30 20 TEST2 DC2FB 29 21 CK DC2FBs 28 22 TC DC2Css 27 23 TEST3 TEST4 26 24 WS NRST2 25 © 2015-2019 2018-06-04 Toshiba Electronic Devices & Storage Corporation 5
