Datasheet ZVN4210G (Diodes)

ManufacturerDiodes
DescriptionSOT223 N-Channel Enhancement Mode Vertical DMOS FET
Pages / Page5 / 1 — ZVN4210G. SOT223 N-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET. Product …
File Format / SizePDF / 473 Kb
Document LanguageEnglish

ZVN4210G. SOT223 N-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET. Product Summary. Mechanical Data. BVDSS. RDS(ON). A = +25°

Datasheet ZVN4210G Diodes

Model Line for this Datasheet

Text Version of Document

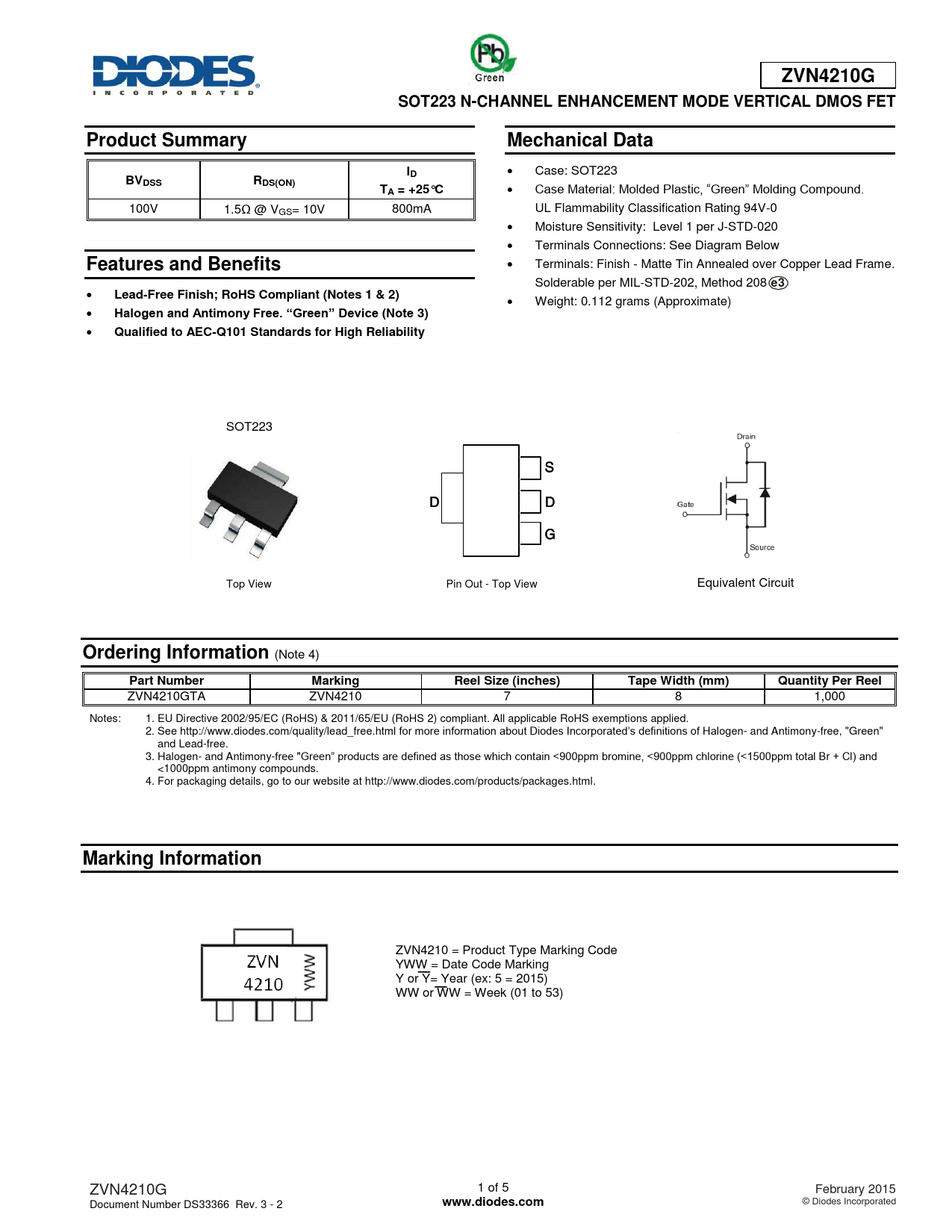

ZVN4210G SOT223 N-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET Product Summary Mechanical Data I D
Case: SOT223
N BVDSS RDS(ON) T
Case Material: Molded Plastic, “Green” Molding Compound.
O A = +25° C I
100V 1.5Ω @ VGS= 10V 800mA UL Flammability Classification Rating 94V-0
T
Moisture Sensitivity: Level 1 per J-STD-020
A
Terminals Connections: See Diagram Below
M Features and Benefits
Terminals: Finish - Matte Tin Annealed over Copper Lead Frame.
R
Solderable per MIL-STD-202, Method 208
e3 O Lead-Free Finish; RoHS Compliant (Notes 1 & 2) FT
Weight: 0.112 grams (Approximate)
Halogen and Antimony Free. “Green” Device (Note 3) NIC Qualified to AEC-Q101 Standards for High Reliability UE DCO N RA P V
SOT223
DW AE N
Top View Pin Out - Top View Equivalent Circuit
Ordering Information
(Note 4)
Part Number Marking Reel Size (inches) Tape Width (mm) Quantity Per Reel
ZVN4210GTA ZVN4210 7 8 1,000 Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
ZVN4210 = Product Type Marking Code YWW = Date Code Marking Y or Y= Year (ex: 5 = 2015) WW or WW = Week (01 to 53) ZVN4210G 1 of 5 February 2015 Document Number DS33366 Rev. 3 - 2
