STPMIC1. Pinout and pin description. 2.2. Figure 2. Pin configuration WFQFN 44L top view. Table 3. Pin description. Pin name
Model Line for this Datasheet
Text Version of Document
link to page 6

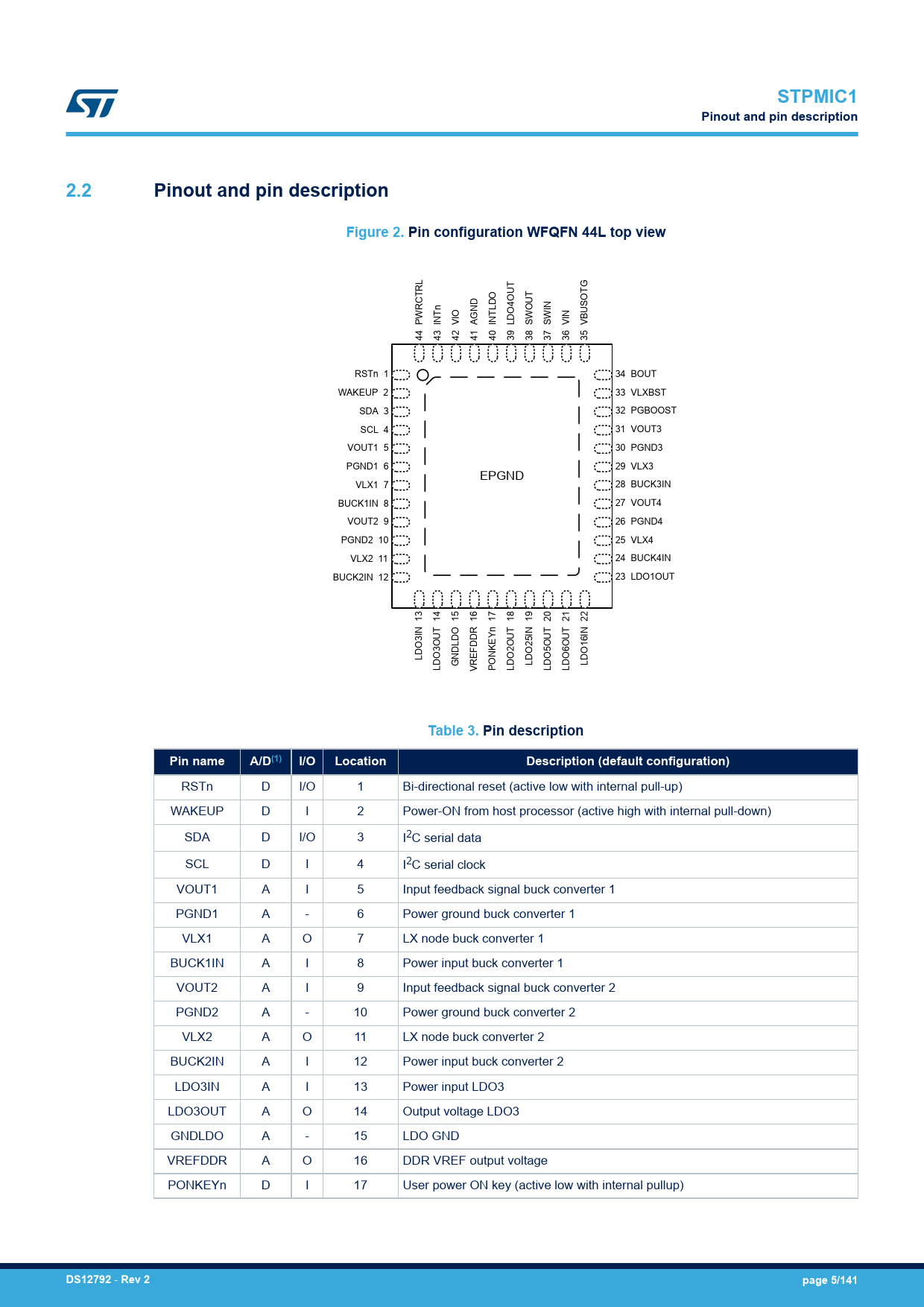

STPMIC1 Pinout and pin description 2.2 Pinout and pin description Figure 2. Pin configuration WFQFN 44L top view
4OUT 44 PWRCTRL 43 INTn 42 VIO 41 AGND 40 INTLDO 39 LDO 38 SWOUT 37 SWIN 36 VIN 35 VBUSOTG RSTn 1 34 BOUT WAKEUP 2 33 VLXBST SDA 3 32 PGBOOST SCL 4 31 VOUT3 VOUT1 5 30 PGND3 PGND1 6 29 VLX3 EPGND VLX1 7 28 BUCK3IN BUCK1IN 8 27 VOUT4 VOUT2 9 26 PGND4 PGND2 10 25 VLX4 VLX2 11 24 BUCK4IN BUCK2IN 12 23 LDO1OUT LDO3IN 13 LDO3OUT 14 GNDLDO 15 VREFDDR 16 PONKEYn 17 LDO2OUT 18 LDO25IN 19 LDO5OUT 20 LDO6OUT 21 LDO16IN 22
Table 3. Pin description Pin name A/D(1) I/O Location Description (default configuration)
RSTn D I/O 1 Bi-directional reset (active low with internal pull-up) WAKEUP D I 2 Power-ON from host processor (active high with internal pull-down) SDA D I/O 3 I2C serial data SCL D I 4 I2C serial clock VOUT1 A I 5 Input feedback signal buck converter 1 PGND1 A - 6 Power ground buck converter 1 VLX1 A O 7 LX node buck converter 1 BUCK1IN A I 8 Power input buck converter 1 VOUT2 A I 9 Input feedback signal buck converter 2 PGND2 A - 10 Power ground buck converter 2 VLX2 A O 11 LX node buck converter 2 BUCK2IN A I 12 Power input buck converter 2 LDO3IN A I 13 Power input LDO3 LDO3OUT A O 14 Output voltage LDO3 GNDLDO A - 15 LDO GND VREFDDR A O 16 DDR VREF output voltage PONKEYn D I 17 User power ON key (active low with internal pullup)
DS12792
-
Rev 2 page 5/141
