Datasheet T5808 (TDK) - 7
| Manufacturer | TDK |
| Description | Bottom-Port SoundWire Digital Multi-Mode Microphone |
| Pages / Page | 41 / 7 — T5808. TABLE 10. ACOUSTICAL/ELECTRICAL CHARACTERISTICS – MODE 4-3 (POWER … |
| File Format / Size | PDF / 1.6 Mb |
| Document Language | English |

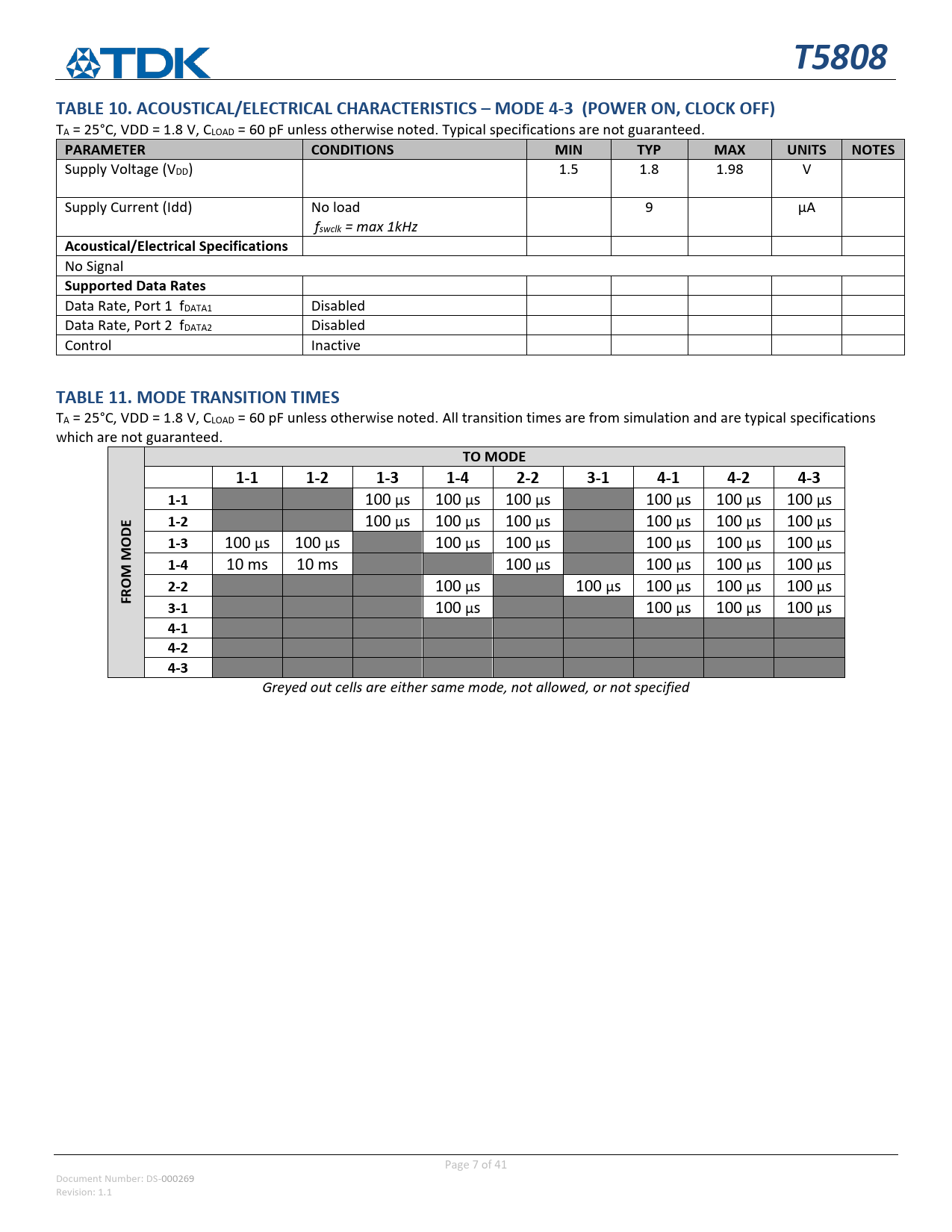

T5808. TABLE 10. ACOUSTICAL/ELECTRICAL CHARACTERISTICS – MODE 4-3 (POWER ON, CLOCK OFF). PARAMETER. CONDITIONS. MIN. TYP. MAX. UNITS
Model Line for this Datasheet
Text Version of Document
T5808 TABLE 10. ACOUSTICAL/ELECTRICAL CHARACTERISTICS – MODE 4-3 (POWER ON, CLOCK OFF)
TA = 25°C, VDD = 1.8 V, CLOAD = 60 pF unless otherwise noted. Typical specifications are not guaranteed.
PARAMETER CONDITIONS MIN TYP MAX UNITS NOTES
Supply Voltage (VDD) 1.5 1.8 1.98 V Supply Current (Idd) No load 9 µA fswclk = max 1kHz
Acoustical/Electrical Specifications
No Signal
Supported Data Rates
Data Rate, Port 1 fDATA1 Disabled Data Rate, Port 2 fDATA2 Disabled Control Inactive
TABLE 11. MODE TRANSITION TIMES
TA = 25°C, VDD = 1.8 V, CLOAD = 60 pF unless otherwise noted. All transition times are from simulation and are typical specifications which are not guaranteed.
TO MODE 1-1 1-2 1-3 1-4 2-2 3-1 4-1 4-2 4-3 1-1
100 µs 100 µs 100 µs 100 µs 100 µs 100 µs
E 1-2
100 µs 100 µs 100 µs 100 µs 100 µs 100 µs
OD 1-3
100 µs 100 µs 100 µs 100 µs 100 µs 100 µs 100 µs
M 1-4
10 ms 10 ms 100 µs 100 µs 100 µs 100 µs
2-2
100 µs 100 µs 100 µs 100 µs 100 µs
FROM 3-1
100 µs 100 µs 100 µs 100 µs
4-1 4-2 4-3
Greyed out cells are either same mode, not allowed, or not specified Page 7 of 41 Document Number: DS-000269 Revision: 1.1
