Datasheet LTC6101, LTC6101HV (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | High Voltage, High-Side Current Sense Amplifier in SOT-23 |
| Pages / Page | 22 / 2 — ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION. ORDER INFORMATION … |
| Revision | I |
| File Format / Size | PDF / 472 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION. ORDER INFORMATION http://www.linear.com/product/LTC6101#orderinfo
Model Line for this Datasheet
- LTC6101ACMS8#PBF LTC6101ACMS8#TRPBF LTC6101ACS5#TRMPBF LTC6101ACS5#TRPBF LTC6101AHMS8#PBF LTC6101AHMS8#TRPBF LTC6101AHS5#TRMPBF LTC6101AHS5#TRPBF LTC6101AIMS8#PBF LTC6101AIMS8#TRPBF LTC6101AIS5#TRMPBF LTC6101AIS5#TRPBF LTC6101BCS5#TRMPBF LTC6101BCS5#TRPBF LTC6101BHS5#TRMPBF LTC6101BHS5#TRPBF LTC6101BIS5#TRMPBF LTC6101BIS5#TRPBF LTC6101CCS5#TRMPBF LTC6101CCS5#TRPBF LTC6101CHS5#TRMPBF LTC6101CHS5#TRPBF LTC6101CIS5#TRMPBF LTC6101CIS5#TRPBF LTC6101HVACMS8#PBF LTC6101HVACMS8#TRPBF LTC6101HVACS5#TRMPBF LTC6101HVACS5#TRPBF LTC6101HVAHMS8#PBF LTC6101HVAHMS8#TRPBF LTC6101HVAHS5#TRMPBF LTC6101HVAHS5#TRPBF LTC6101HVAIMS8#PBF LTC6101HVAIMS8#TRPBF LTC6101HVAIS5#TRMPBF LTC6101HVAIS5#TRPBF LTC6101HVBCS5#TRMPBF LTC6101HVBCS5#TRPBF LTC6101HVBHS5#TRMPBF LTC6101HVBHS5#TRPBF LTC6101HVBIS5#TRMPBF LTC6101HVBIS5#TRPBF LTC6101HVCCS5#TRMPBF LTC6101HVCCS5#TRPBF LTC6101HVCHS5#TRMPBF LTC6101HVCHS5#TRPBF LTC6101HVCIS5#TRMPBF LTC6101HVCIS5#TRPBF LTC6101VHVACS5#TRMPBF LTC6101VHVACS5#TRPBF LTC6101VHVAHS5#TRMPBF LTC6101VHVAHS5#TRPBF LTC6101VHVAIS5#TRMPBF LTC6101VHVAIS5#TRPBF LTC6101VHVBCS5#TRMPBF LTC6101VHVBCS5#TRPBF LTC6101VHVBHS5#TRMPBF LTC6101VHVBHS5#TRPBF LTC6101VHVBIS5#TRMPBF LTC6101VHVBIS5#TRPBF LTC6101VHVCCS5#TRMPBF LTC6101VHVCCS5#TRPBF LTC6101VHVCHS5#TRMPBF LTC6101VHVCHS5#TRPBF LTC6101VHVCIS5#TRMPBF LTC6101VHVCIS5#TRPBF
Text Version of Document
LTC6101/LTC6101HV

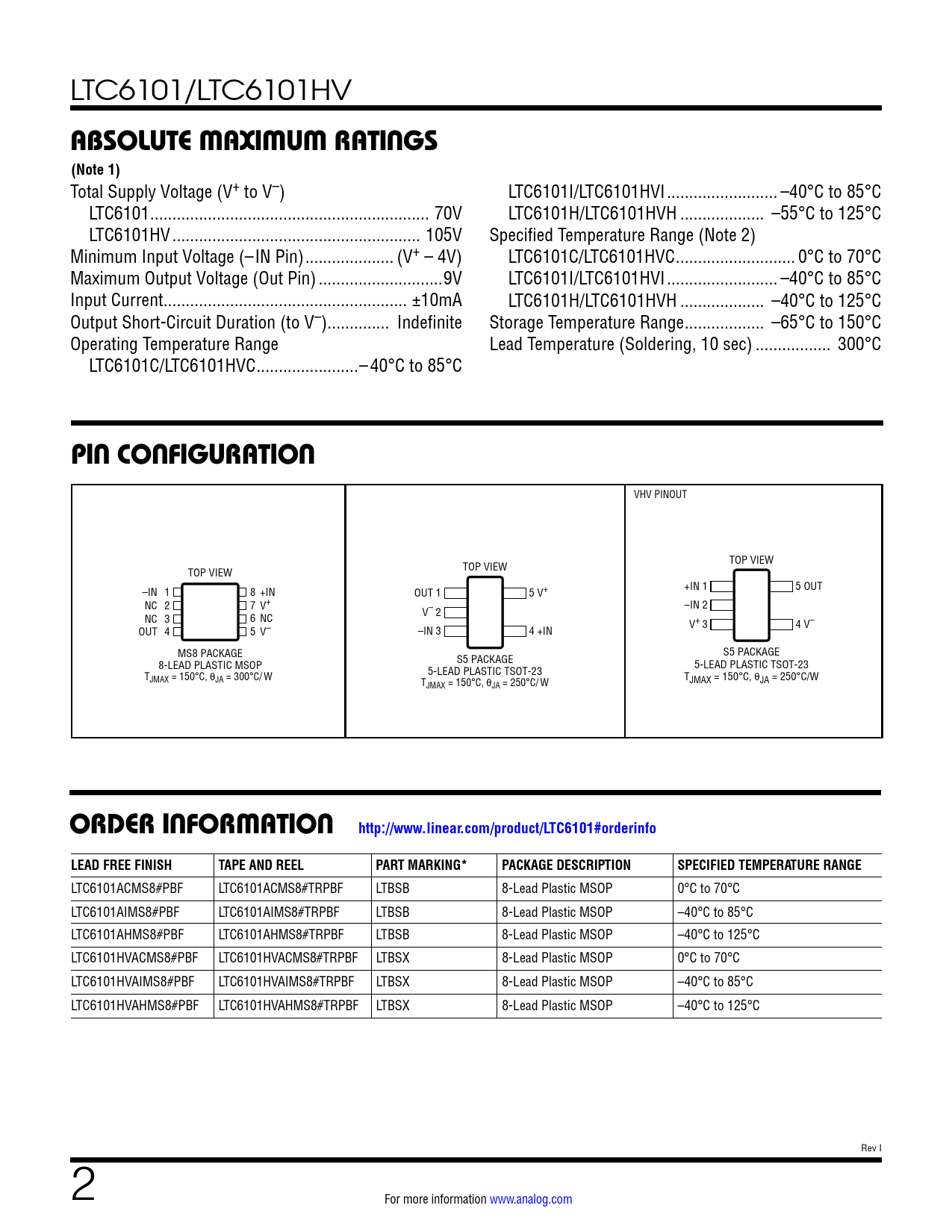

ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) LTC6101I/LTC6101HVI ... –40°C to 85°C LTC6101 ... 70V LTC6101H/LTC6101HVH ... –55°C to 125°C LTC6101HV .. 105V Specified Temperature Range (Note 2) Minimum Input Voltage (–IN Pin) .. (V+ – 4V) LTC6101C/LTC6101HVC ... 0°C to 70°C Maximum Output Voltage (Out Pin) ..9V LTC6101I/LTC6101HVI ... –40°C to 85°C Input Current ... ±10mA LTC6101H/LTC6101HVH ... –40°C to 125°C Output Short-Circuit Duration (to V–) .. Indefinite Storage Temperature Range .. –65°C to 150°C Operating Temperature Range Lead Temperature (Soldering, 10 sec) ... 300°C LTC6101C/LTC6101HVC ...–40°C to 85°C
PIN CONFIGURATION
VHV PINOUT TOP VIEW TOP VIEW TOP VIEW –IN 1 8 +IN +IN 1 5 OUT OUT 1 5 V+ NC 2 7 V+ –IN 2 NC 3 6 NC V– 2 V+ 4 V– OUT 4 5 V– –IN 3 4 +IN 3 MS8 PACKAGE S5 PACKAGE 8-LEAD PLASTIC MSOP S5 PACKAGE 5-LEAD PLASTIC TSOT-23 T 5-LEAD PLASTIC TSOT-23 JMAX = 150°C, θJA = 300°C/ W T TJMAX = 150°C, JA = 250°C/W JMAX = 150°C, θJA = 250°C/ W
ORDER INFORMATION http://www.linear.com/product/LTC6101#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6101ACMS8#PBF LTC6101ACMS8#TRPBF LTBSB 8-Lead Plastic MSOP 0°C to 70°C LTC6101AIMS8#PBF LTC6101AIMS8#TRPBF LTBSB 8-Lead Plastic MSOP –40°C to 85°C LTC6101AHMS8#PBF LTC6101AHMS8#TRPBF LTBSB 8-Lead Plastic MSOP –40°C to 125°C LTC6101HVACMS8#PBF LTC6101HVACMS8#TRPBF LTBSX 8-Lead Plastic MSOP 0°C to 70°C LTC6101HVAIMS8#PBF LTC6101HVAIMS8#TRPBF LTBSX 8-Lead Plastic MSOP –40°C to 85°C LTC6101HVAHMS8#PBF LTC6101HVAHMS8#TRPBF LTBSX 8-Lead Plastic MSOP –40°C to 125°C Rev I 2 For more information www.analog.com Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS BLOCK DIAGRAM APPLICATIONS INFORMATION TYPICAL APPLICATIONS PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) LTC6101I/LTC6101HVI ... –40°C to 85°C LTC6101 ... 70V LTC6101H/LTC6101HVH ... –55°C to 125°C LTC6101HV .. 105V Specified Temperature Range (Note 2) Minimum Input Voltage (–IN Pin) .. (V+ – 4V) LTC6101C/LTC6101HVC ... 0°C to 70°C Maximum Output Voltage (Out Pin) ..9V LTC6101I/LTC6101HVI ... –40°C to 85°C Input Current ... ±10mA LTC6101H/LTC6101HVH ... –40°C to 125°C Output Short-Circuit Duration (to V–) .. Indefinite Storage Temperature Range .. –65°C to 150°C Operating Temperature Range Lead Temperature (Soldering, 10 sec) ... 300°C LTC6101C/LTC6101HVC ...–40°C to 85°C
PIN CONFIGURATION
VHV PINOUT TOP VIEW TOP VIEW TOP VIEW –IN 1 8 +IN +IN 1 5 OUT OUT 1 5 V+ NC 2 7 V+ –IN 2 NC 3 6 NC V– 2 V+ 4 V– OUT 4 5 V– –IN 3 4 +IN 3 MS8 PACKAGE S5 PACKAGE 8-LEAD PLASTIC MSOP S5 PACKAGE 5-LEAD PLASTIC TSOT-23 T 5-LEAD PLASTIC TSOT-23 JMAX = 150°C, θJA = 300°C/ W T TJMAX = 150°C, JA = 250°C/W JMAX = 150°C, θJA = 250°C/ W
ORDER INFORMATION http://www.linear.com/product/LTC6101#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6101ACMS8#PBF LTC6101ACMS8#TRPBF LTBSB 8-Lead Plastic MSOP 0°C to 70°C LTC6101AIMS8#PBF LTC6101AIMS8#TRPBF LTBSB 8-Lead Plastic MSOP –40°C to 85°C LTC6101AHMS8#PBF LTC6101AHMS8#TRPBF LTBSB 8-Lead Plastic MSOP –40°C to 125°C LTC6101HVACMS8#PBF LTC6101HVACMS8#TRPBF LTBSX 8-Lead Plastic MSOP 0°C to 70°C LTC6101HVAIMS8#PBF LTC6101HVAIMS8#TRPBF LTBSX 8-Lead Plastic MSOP –40°C to 85°C LTC6101HVAHMS8#PBF LTC6101HVAHMS8#TRPBF LTBSX 8-Lead Plastic MSOP –40°C to 125°C Rev I 2 For more information www.analog.com Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS BLOCK DIAGRAM APPLICATIONS INFORMATION TYPICAL APPLICATIONS PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
