TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Efficiency, VOUT = 1V. Efficiency, VOUT = 1.2V
Model Line for this Datasheet
Text Version of Document
LTM8063

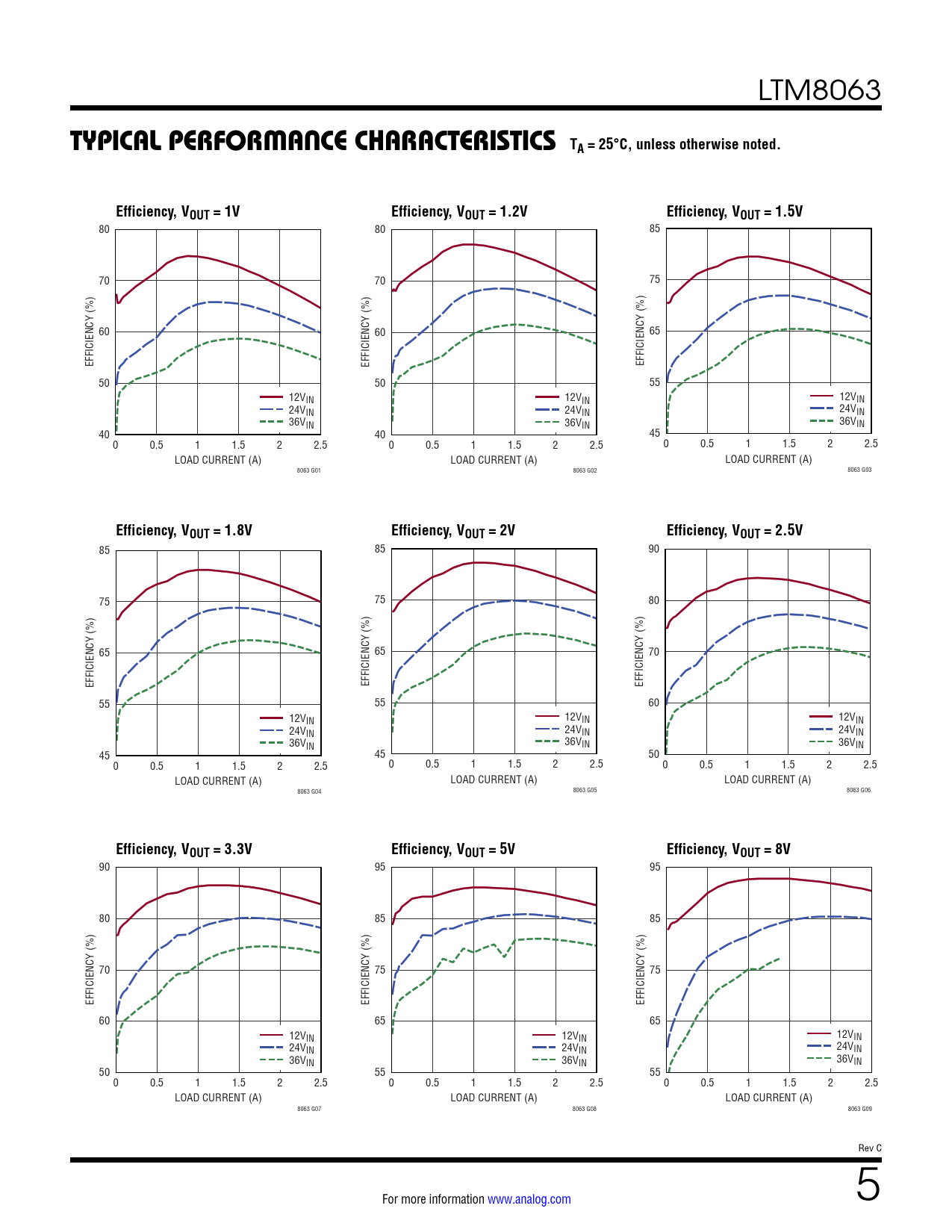

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Efficiency, VOUT = 1V Efficiency, VOUT = 1.2V Efficiency, VOUT = 1.5V
80 80 85 70 70 75 60 60 65 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 50 50 55 12VIN 12VIN 12VIN 24VIN 24VIN 24VIN 36VIN 36VIN 36VIN 40 40 45 0 0.5 1 1.5 2 2.5 0 0.5 1 1.5 2 2.5 0 0.5 1 1.5 2 2.5 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8063 G01 8063 G02 8063 G03
Efficiency, VOUT = 1.8V Efficiency, VOUT = 2V Efficiency, VOUT = 2.5V
85 85 90 75 75 80 65 65 70 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 55 55 60 12VIN 12VIN 12VIN 24VIN 24VIN 24VIN 36VIN 36VIN 36VIN 45 45 50 0 0.5 1 1.5 2 2.5 0 0.5 1 1.5 2 2.5 0 0.5 1 1.5 2 2.5 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8063 G04 8063 G05 8063 G06
Efficiency, VOUT = 3.3V Efficiency, VOUT = 5V Efficiency, VOUT = 8V
90 95 95 80 85 85 70 75 75 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 60 65 65 12VIN 12VIN 12VIN 24VIN 24VIN 24VIN 36VIN 36VIN 36VIN 50 55 55 0 0.5 1 1.5 2 2.5 0 0.5 1 1.5 2 2.5 0 0.5 1 1.5 2 2.5 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8063 G07 8063 G08 8063 G09 Rev C For more information www.analog.com 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Photo Package Description Revision History Typical Application Related Parts
