Nexperia. PESD2V8R1BSF. Ultra low capacitance bidirectional ESD protection diode. 9. Characteristics Table 6. Characteristics
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 4 link to page 4

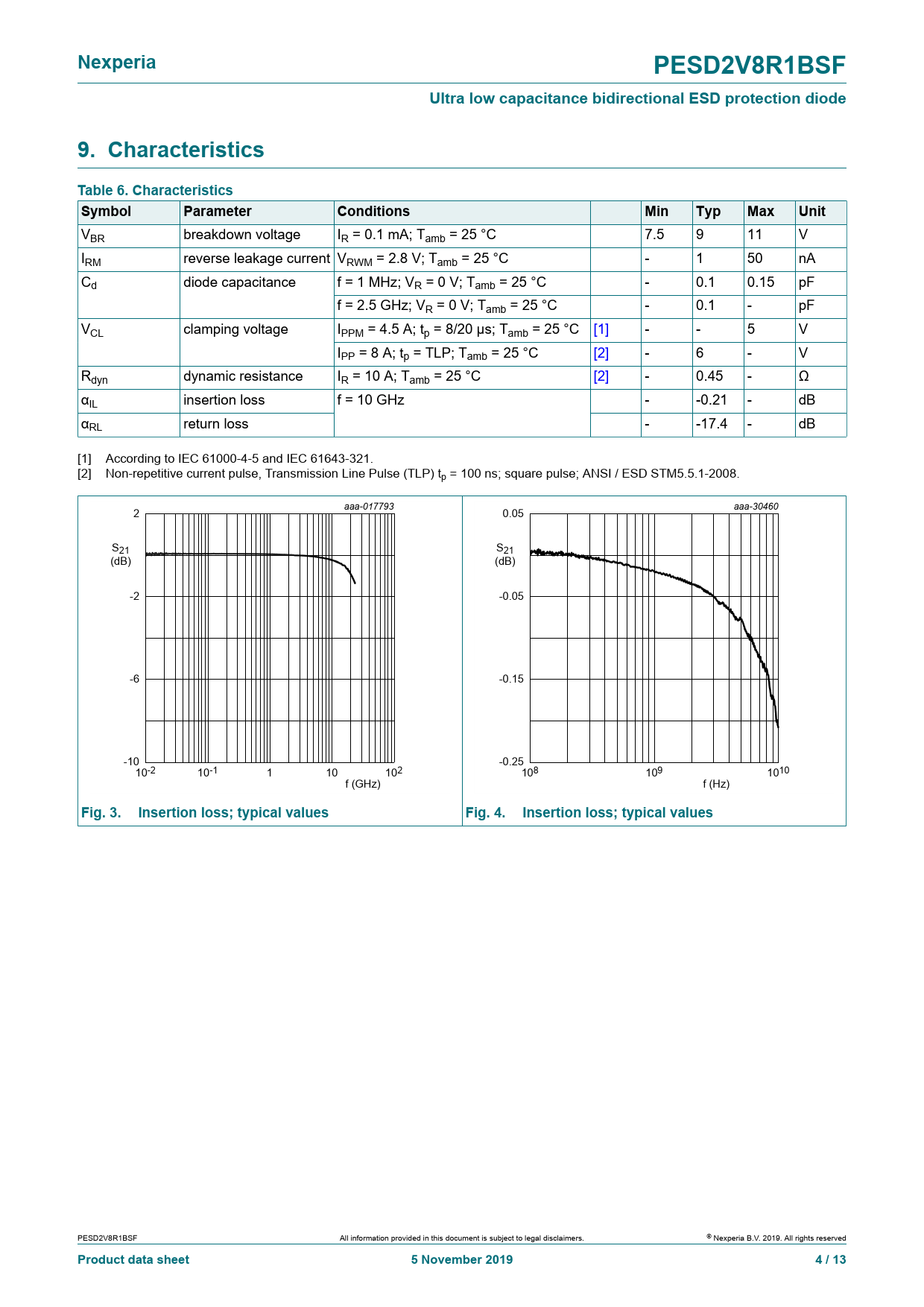

Nexperia PESD2V8R1BSF Ultra low capacitance bidirectional ESD protection diode 9. Characteristics Table 6. Characteristics Symbol Parameter Conditions Min Typ Max Unit
VBR breakdown voltage IR = 0.1 mA; Tamb = 25 °C 7.5 9 11 V IRM reverse leakage current VRWM = 2.8 V; Tamb = 25 °C - 1 50 nA Cd diode capacitance f = 1 MHz; VR = 0 V; Tamb = 25 °C - 0.1 0.15 pF f = 2.5 GHz; VR = 0 V; Tamb = 25 °C - 0.1 - pF VCL clamping voltage IPPM = 4.5 A; tp = 8/20 μs; Tamb = 25 °C [1] - - 5 V IPP = 8 A; tp = TLP; Tamb = 25 °C [2] - 6 - V Rdyn dynamic resistance IR = 10 A; Tamb = 25 °C [2] - 0.45 - Ω αIL insertion loss f = 10 GHz - -0.21 - dB αRL return loss - -17.4 - dB [1] According to IEC 61000-4-5 and IEC 61643-321. [2] Non-repetitive current pulse, Transmission Line Pulse (TLP) tp = 100 ns; square pulse; ANSI / ESD STM5.5.1-2008. aaa-017793 2 aaa-30460 0.05 S21 S21 (dB) (dB) -2 -0.05 -6 -0.15 -10 -0.25 10-2 10-1 1 102 10 108 1010 109 f (GHz) f (Hz)
Fig. 3. Insertion loss; typical values Fig. 4. Insertion loss; typical values
