Datasheet LT3756, LT3756-1, LT3756-2 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 100VIN, 100VOUT LED Controller |
| Pages / Page | 26 / 3 — ORDER INFORMATION AUTOMOTIVE PRODUCTS** LEAD FREE FINISH. TAPE AND REEL. … |
| Revision | C |
| File Format / Size | PDF / 402 Kb |
| Document Language | English |
ORDER INFORMATION AUTOMOTIVE PRODUCTS** LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE
Model Line for this Datasheet
- LT3756EMSE#PBF LT3756EMSE#TRPBF LT3756EMSE#WPBF LT3756EMSE#WTRPBF LT3756EMSE-1#PBF LT3756EMSE-1#TRPBF LT3756EMSE-1#WPBF LT3756EMSE-1#WTRPBF LT3756EMSE-2#PBF LT3756EMSE-2#TRPBF LT3756EMSE-2#WPBF LT3756EMSE-2#WTRPBF LT3756EUD#PBF LT3756EUD#TRPBF LT3756EUD-1#PBF LT3756EUD-1#TRPBF LT3756EUD-2#PBF LT3756EUD-2#TRPBF LT3756HMSE-2#PBF LT3756HMSE-2#TRPBF LT3756HMSE-2#WPBF LT3756HMSE-2#WTRPBF LT3756IMSE#PBF LT3756IMSE#TRPBF LT3756IMSE#WPBF LT3756IMSE#WTRPBF LT3756IMSE-1#PBF LT3756IMSE-1#TRPBF LT3756IMSE-1#WPBF LT3756IMSE-1#WTRPBF LT3756IMSE-2#PBF LT3756IMSE-2#TRPBF LT3756IMSE-2#WPBF LT3756IMSE-2#WTRPBF LT3756IUD#PBF LT3756IUD#TRPBF LT3756IUD-1#PBF LT3756IUD-1#TRPBF LT3756IUD-2#PBF LT3756IUD-2#TRPBF LT3756JMSE-2#PBF LT3756JMSE-2#TRPBF LT3756JMSE-2#WPBF LT3756JMSE-2#WTRPBF
Text Version of Document

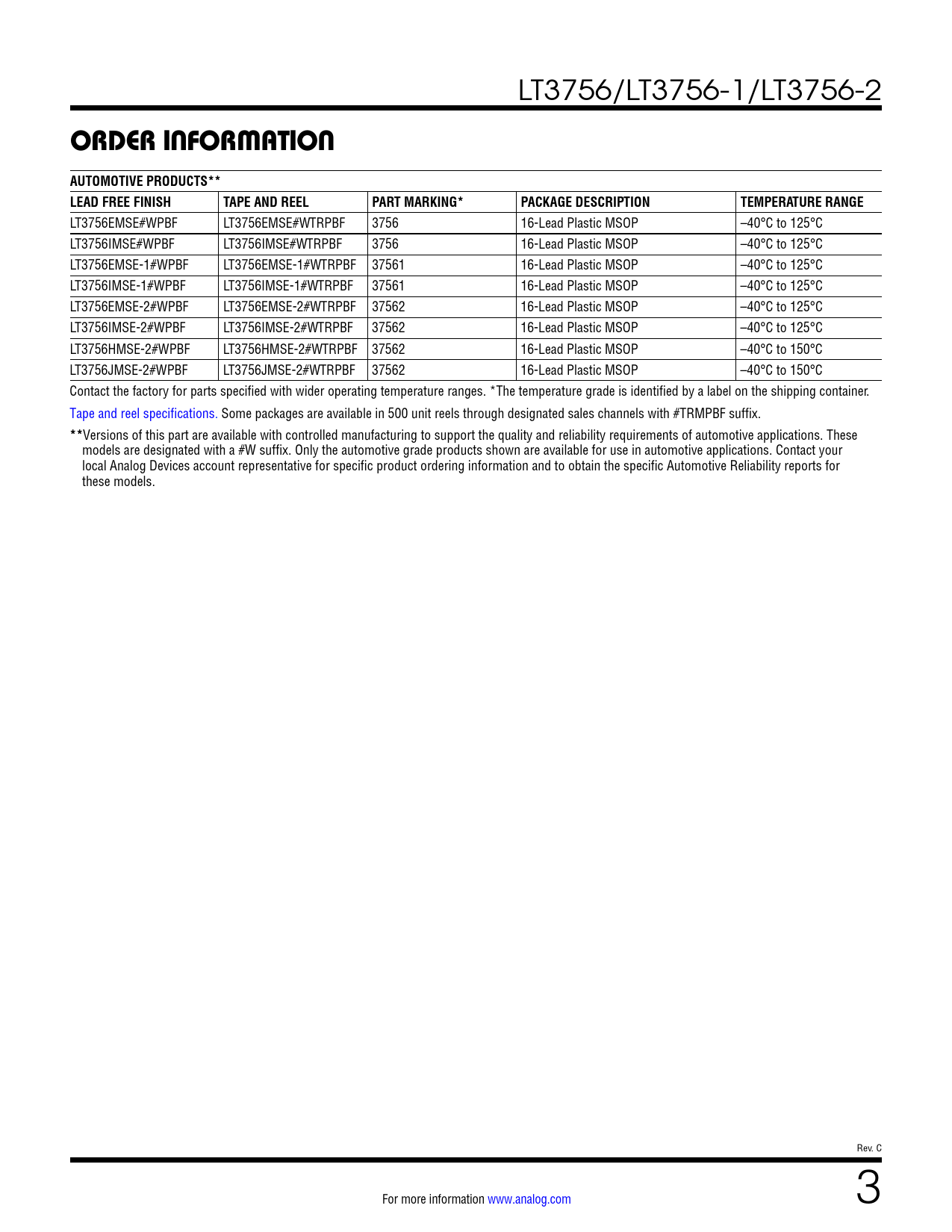

LT3756/LT3756-1/LT3756-2
ORDER INFORMATION AUTOMOTIVE PRODUCTS** LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3756EMSE#WPBF LT3756EMSE#WTRPBF 3756 16-Lead Plastic MSOP –40°C to 125°C LT3756IMSE#WPBF LT3756IMSE#WTRPBF 3756 16-Lead Plastic MSOP –40°C to 125°C LT3756EMSE-1#WPBF LT3756EMSE-1#WTRPBF 37561 16-Lead Plastic MSOP –40°C to 125°C LT3756IMSE-1#WPBF LT3756IMSE-1#WTRPBF 37561 16-Lead Plastic MSOP –40°C to 125°C LT3756EMSE-2#WPBF LT3756EMSE-2#WTRPBF 37562 16-Lead Plastic MSOP –40°C to 125°C LT3756IMSE-2#WPBF LT3756IMSE-2#WTRPBF 37562 16-Lead Plastic MSOP –40°C to 125°C LT3756HMSE-2#WPBF LT3756HMSE-2#WTRPBF 37562 16-Lead Plastic MSOP –40°C to 150°C LT3756JMSE-2#WPBF LT3756JMSE-2#WTRPBF 37562 16-Lead Plastic MSOP –40°C to 150°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. C For more information www.analog.com 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Typical Application Related Parts
