Typical Performance Curves. (Continued). FB = 0V. 8LEDs VIN = 3.3V. ILED = 380mA. FIGURE 25. OVP AND RESET
Model Line for this Datasheet
Text Version of Document
ISL97801

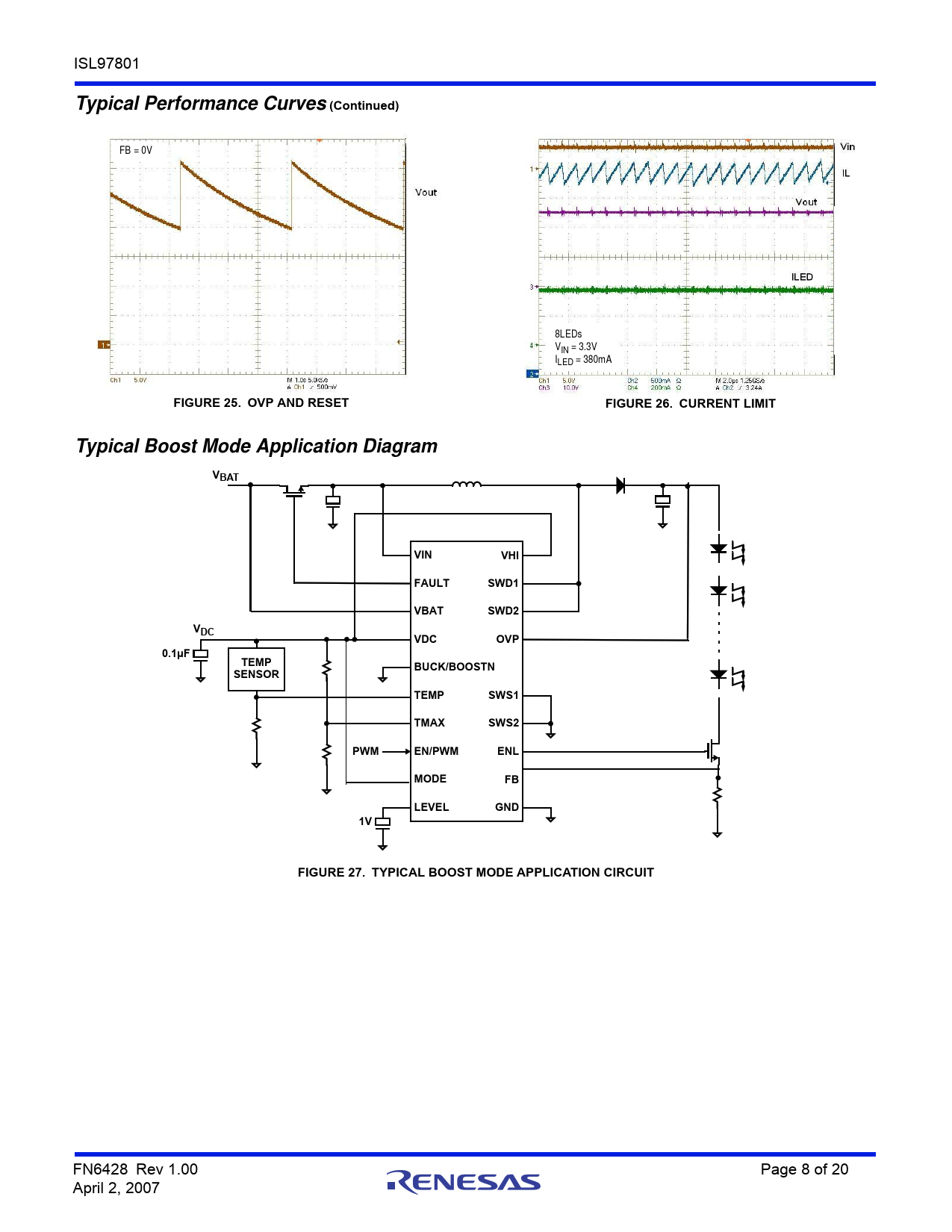

Typical Performance Curves (Continued) FB = 0V 8LEDs VIN = 3.3V ILED = 380mA FIGURE 25. OVP AND RESET FIGURE 26. CURRENT LIMIT Typical Boost Mode Application Diagram VBAT VIN VHI FAULT SWD1 VBAT SWD2 VDC VDC OVP 0.1µF TEMP BUCK/BOOSTN SENSOR TEMP SWS1 TMAX SWS2 PWM EN/PWM ENL MODE FB LEVEL GND 1V FIGURE 27. TYPICAL BOOST MODE APPLICATION CIRCUIT
