Datasheet AD8221-KGD (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Precision Instrumentation Amplifier |
| Pages / Page | 8 / 6 — AD8221-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. … |
| File Format / Size | PDF / 176 Kb |
| Document Language | English |
AD8221-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document

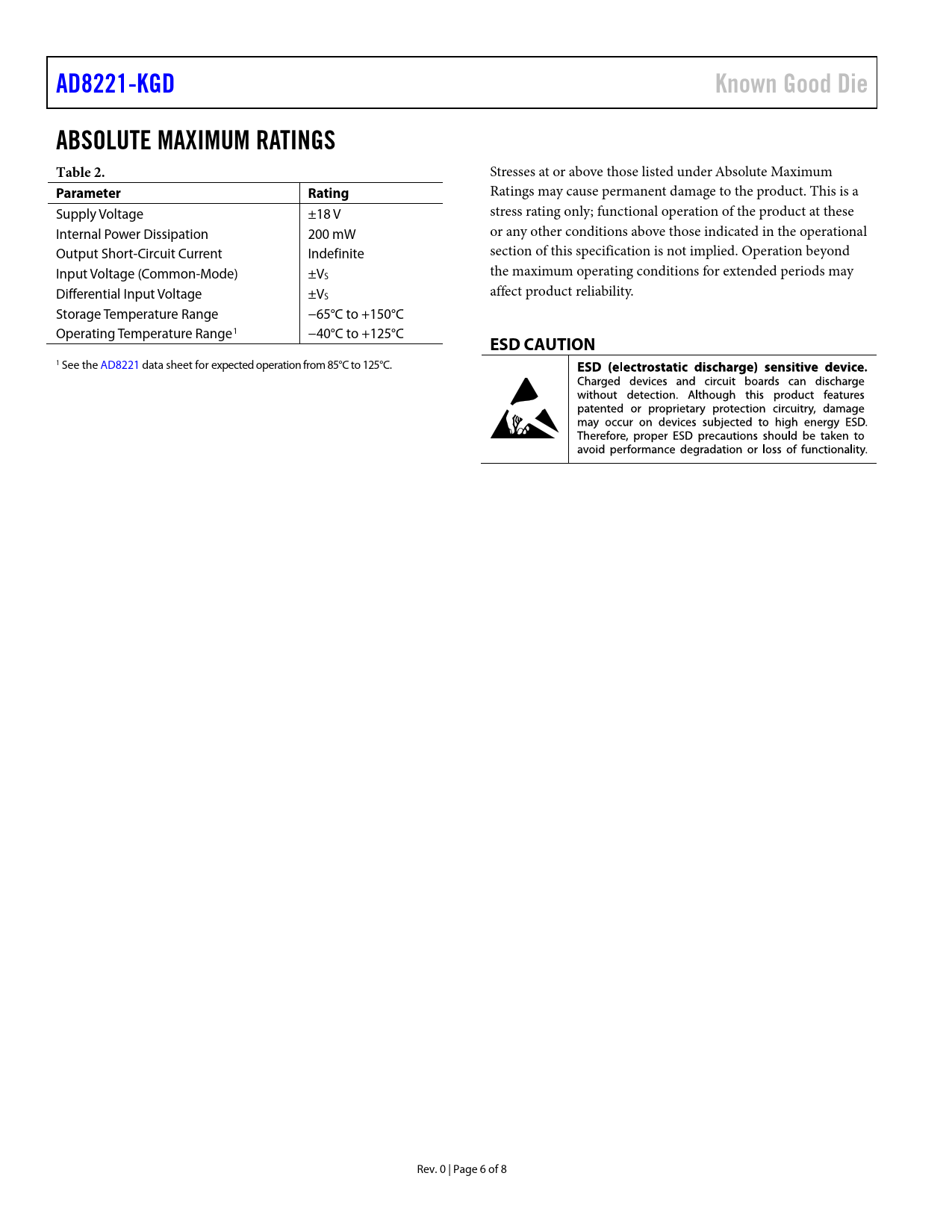

AD8221-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage ±18 V stress rating only; functional operation of the product at these Internal Power Dissipation 200 mW or any other conditions above those indicated in the operational Output Short-Circuit Current Indefinite section of this specification is not implied. Operation beyond Input Voltage (Common-Mode) ±V the maximum operating conditions for extended periods may S Differential Input Voltage ±V affect product reliability. S Storage Temperature Range −65°C to +150°C Operating Temperature Range1 −40°C to +125°C
ESD CAUTION
1 See the AD8221 data sheet for expected operation from 85°C to 125°C. Rev. 0 | Page 6 of 8 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION CONNECTION DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
