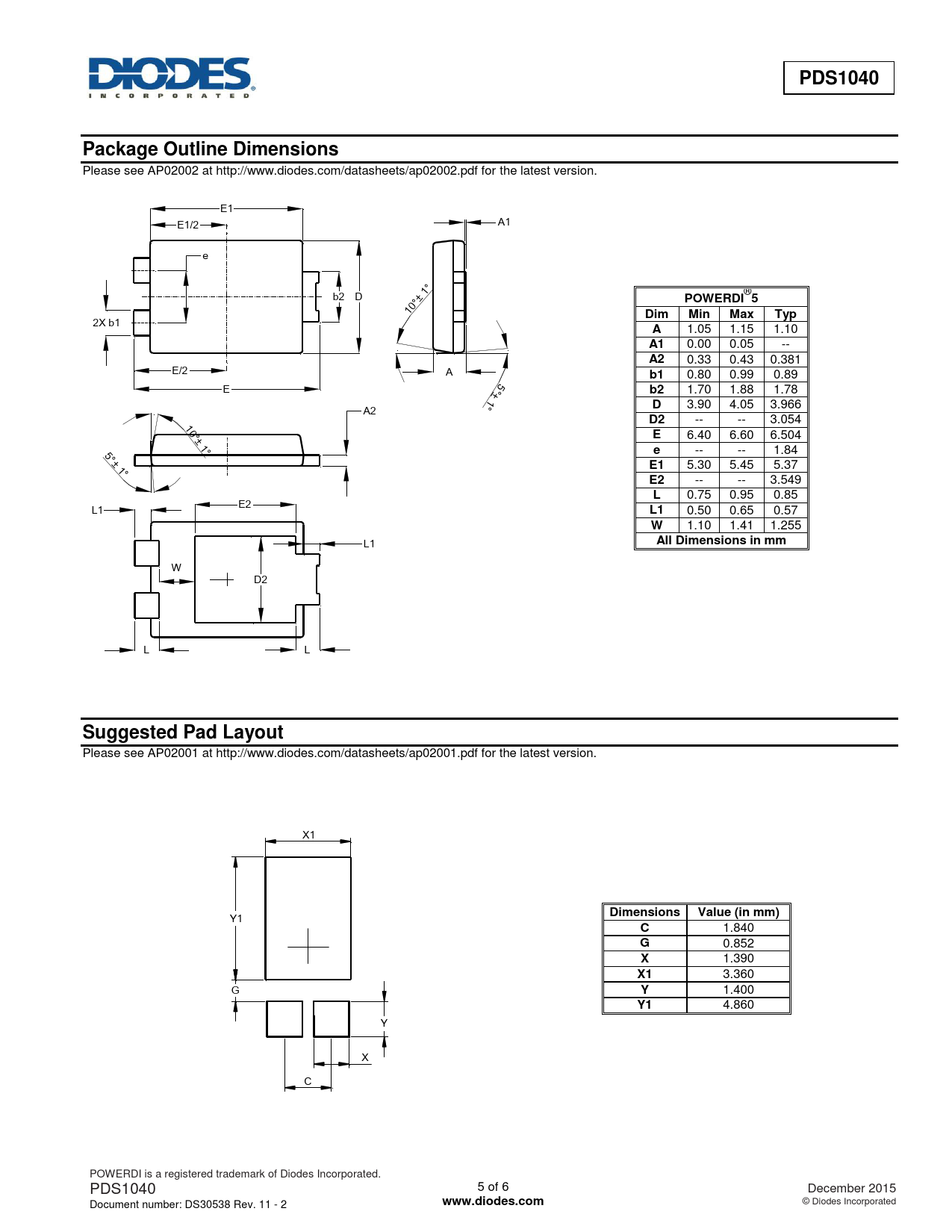

PDS1040 Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.

E1

A1

E1/2

e ° ® b2 D
POWERDI 5
10°± 1
Dim Min Max Typ
2X b1
A
1.05 1.15 1.10
A1
0.00 0.05 --
A2
0.33 0.43 0.381 E/2 A 5
b1
0.80 0.99 0.89 °± E 1°
b2
1.70 1.88 1.78
D
3.90 4.05 3.966 A2
D2
-- -- 3.054 10°± 1
E
6.40 6.60 6.504 °
e
-- -- 1.84 5°±
E1
5.30 5.45 5.37 1°
E2
-- -- 3.549
L
0.75 0.95 0.85 E2 L1
L1
0.50 0.65 0.57
W
1.10 1.41 1.255 L1
All Dimensions in mm
W D2 L L
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version. X1
Dimensions Value (in mm)
Y1
C
1.840
G
0.852
X
1.390
X1
3.360 G
Y
1.400
Y1
4.860 Y X C POWERDI is a registered trademark of Diodes Incorporated. PDS1040 5 of 6 December 2015 Document number: DS30538 Rev. 11 - 2
