Data SheetNo. PD60190-C. IRIS4015(K). INTEGRATED SWITCHER. Features. Packages. Fully Characterized Avalanche Energy. Descriptions

Datasheet IRIS4015 International Rectifier

Model Line for this Datasheet

Text Version of Document

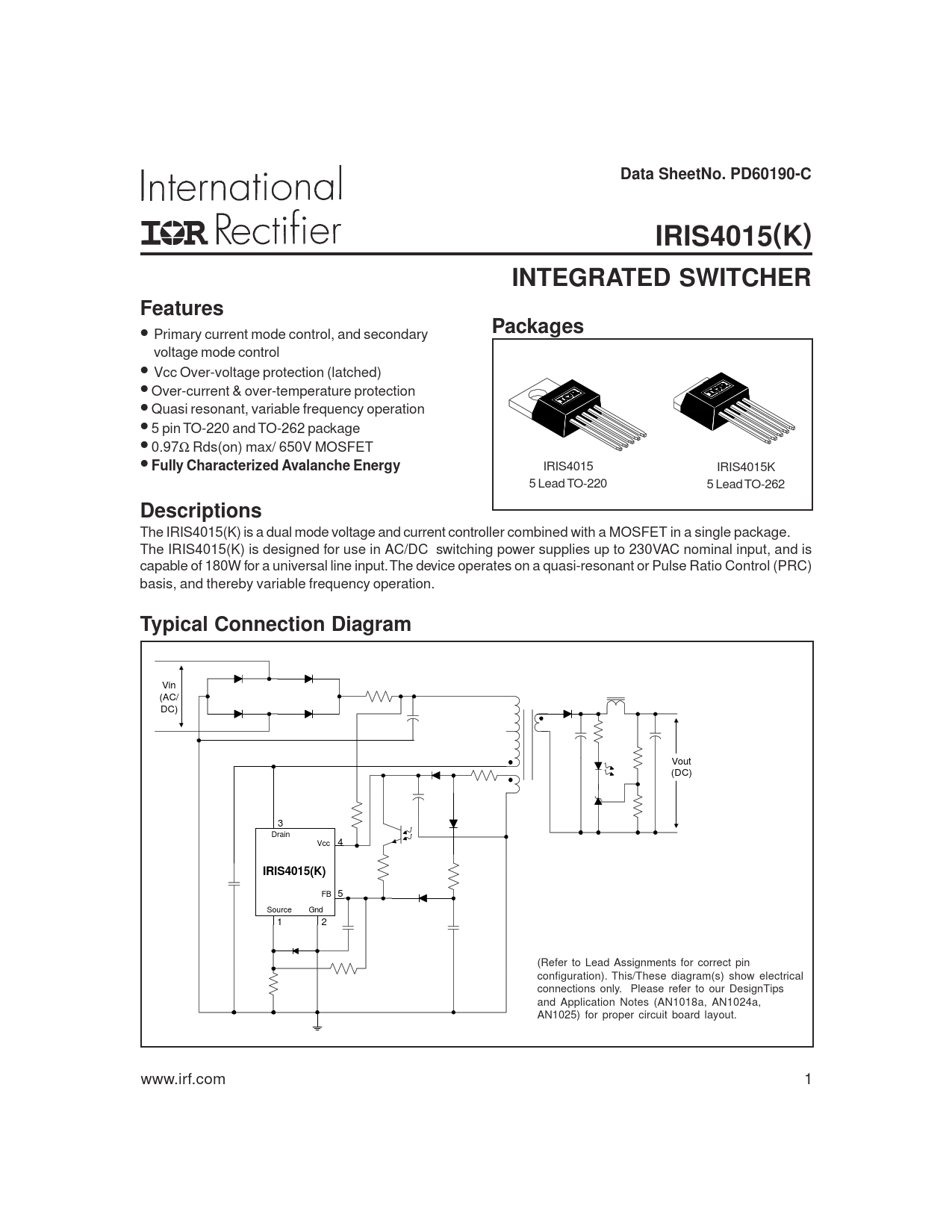

Data SheetNo. PD60190-C IRIS4015(K) INTEGRATED SWITCHER Features

Packages
Primary current mode control, and secondary voltage mode control • Vcc Over-voltage protection (latched) • Over-current & over-temperature protection • Quasi resonant, variable frequency operation • 5 pin TO-220 and TO-262 package • 0.97Ω Rds(on) max/ 650V MOSFET •
Fully Characterized Avalanche Energy
IRIS4015 IRIS4015K 5 Lead TO-220 5 Lead TO-262
Descriptions
The IRIS4015(K) is a dual mode voltage and current controller combined with a MOSFET in a single package. The IRIS4015(K) is designed for use in AC/DC switching power supplies up to 230VAC nominal input, and is capable of 180W for a universal line input. The device operates on a quasi-resonant or Pulse Ratio Control (PRC) basis, and thereby variable frequency operation.
Typical Connection Diagram
Vin (AC/ DC) Vout (DC) 3 Drain Vcc 4
IRIS4015(K)
FB 5 Source Gnd 1 2 (Refer to Lead Assignments for correct pin configuration). This/These diagram(s) show electrical connections only. Please refer to our DesignTips and Application Notes (AN1018a, AN1024a, AN1025) for proper circuit board layout. www.irf.com 1
