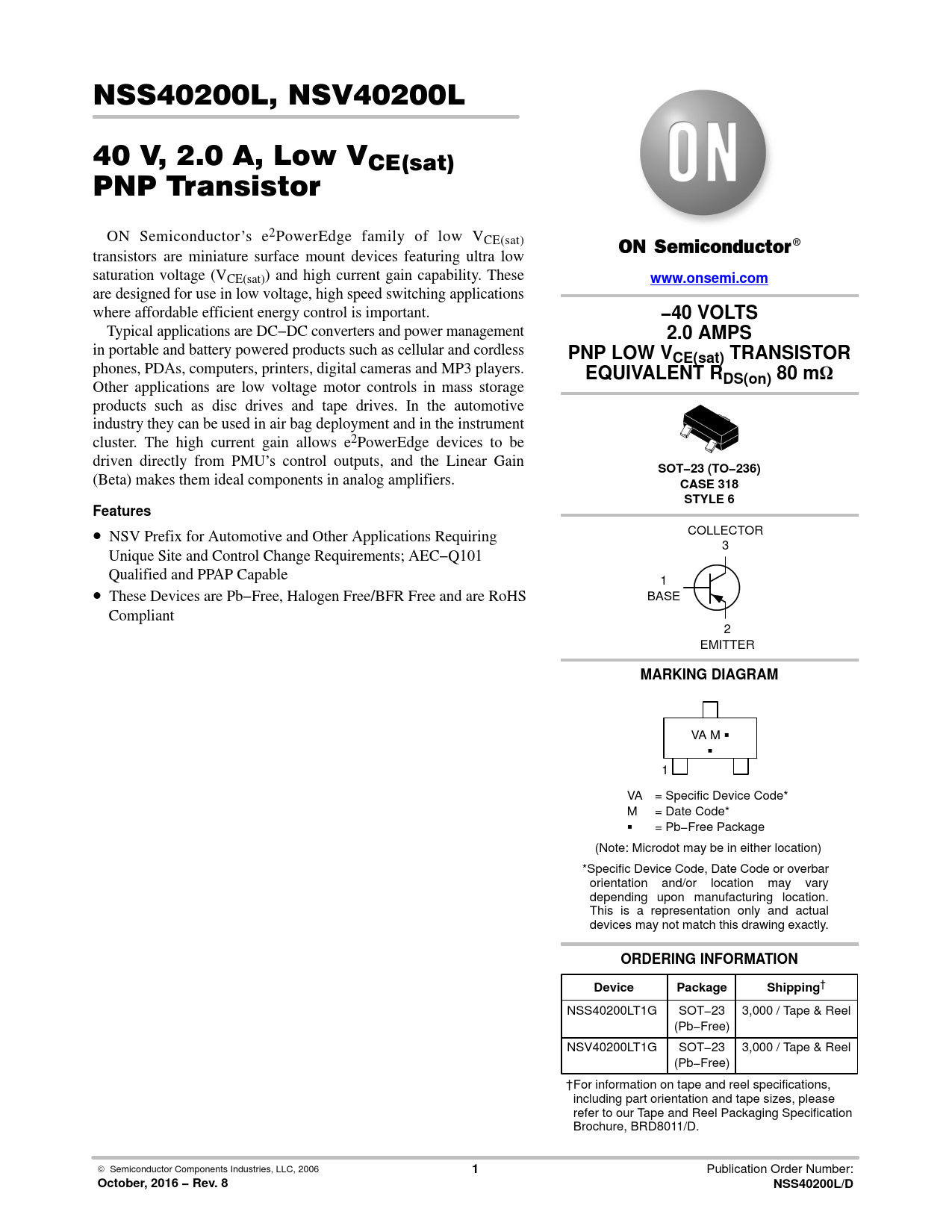

www.onsemi.com. −40 VOLTS. 2.0 AMPS. PNP LOW VCE(sat) TRANSISTOR. EQUIVALENT RDS(on) 80 mW. SOT−23 (TO−236). CASE 318. STYLE 6
Model Line for this Datasheet
Text Version of Document
NSS40200L, NSV40200L 40 V, 2.0 A, Low VCE(sat) PNP Transistor ON Semiconductor’s e2PowerEdge family of low VCE(sat) transistors are miniature surface mount devices featuring ultra low saturation voltage (VCE(sat)) and high current gain capability. These
www.onsemi.com
are designed for use in low voltage, high speed switching applications where affordable efficient energy control is important.
−40 VOLTS
Typical applications are DC−DC converters and power management
2.0 AMPS
in portable and battery powered products such as cellular and cordless
PNP LOW VCE(sat) TRANSISTOR
phones, PDAs, computers, printers, digital cameras and MP3 players.
EQUIVALENT RDS(on) 80 mW
Other applications are low voltage motor controls in mass storage products such as disc drives and tape drives. In the automotive industry they can be used in air bag deployment and in the instrument cluster. The high current gain allows e2PowerEdge devices to be driven directly from PMU’s control outputs, and the Linear Gain
SOT−23 (TO−236)
(Beta) makes them ideal components in analog amplifiers.
CASE 318 STYLE 6 Features
• NSV Prefix for Automotive and Other Applications Requiring COLLECTOR 3 Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable 1 • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS BASE Compliant 2 EMITTER
MARKING DIAGRAM
VA M G G 1 VA = Specific Device Code* M = Date Code* G = Pb−Free Package (Note: Microdot may be in either location) *Specific Device Code, Date Code or overbar orientation and/or location may vary depending upon manufacturing location. This is a representation only and actual devices may not match this drawing exactly.
ORDERING INFORMATION Device Package Shipping
† NSS40200LT1G SOT−23 3,000 / Tape & Reel (Pb−Free) NSV40200LT1G SOT−23 3,000 / Tape & Reel (Pb−Free) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2006
1
Publication Order Number:
October, 2016 − Rev. 8 NSS40200L/D
