Datasheet NST489AMT1G, NSVT489AMT1G (ON Semiconductor) - 3
| Manufacturer | ON Semiconductor |
| Description | High Current Surface Mount NPN Silicon Low VCE(sat) Switching Transistor for Load Management in Portable Applications |
| Pages / Page | 4 / 3 — NST489AMT1G, NSVT489AMT1G. Figure 5. VBE(sat) versus Ic. Figure 6. Safe … |
| Revision | 9 |
| File Format / Size | PDF / 62 Kb |
| Document Language | English |

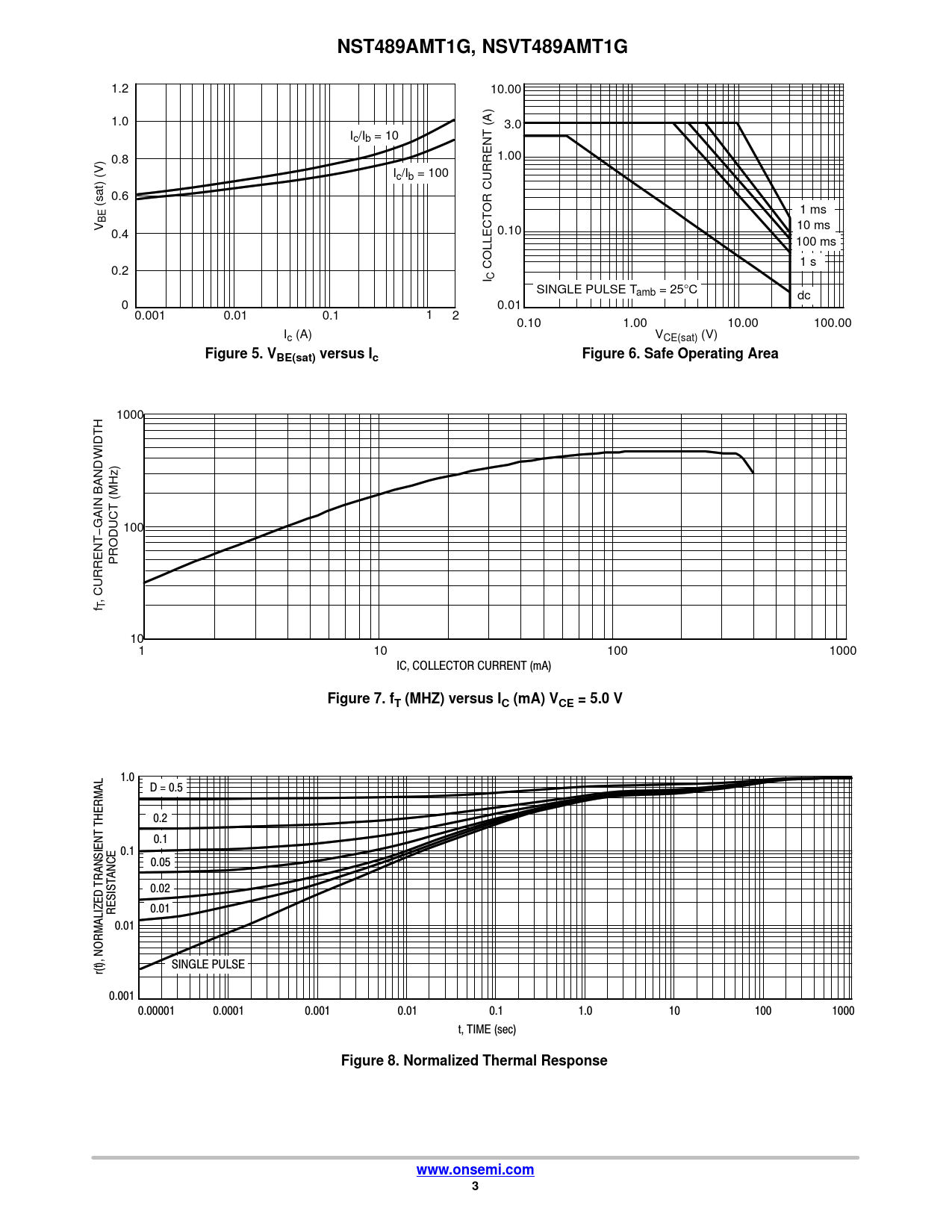

NST489AMT1G, NSVT489AMT1G. Figure 5. VBE(sat) versus Ic. Figure 6. Safe Operating Area
Model Line for this Datasheet
Text Version of Document
NST489AMT1G, NSVT489AMT1G
1.2 10.00 1.0 3.0 Ic/Ib = 10 0.8 1.00 Ic/Ib = 100 0.6 (sat) (V) OR CURRENT (A) 1 ms BEV 10 ms 0.4 0.10 100 ms 1 s 0.2 COLLECT I C SINGLE PULSE Tamb = 25°C dc 0 0.01 0.001 0.01 0.1 1 2 0.10 1.00 10.00 100.00 Ic (A) VCE(sat) (V)
Figure 5. VBE(sat) versus Ic Figure 6. Safe Operating Area
1000 100 PRODUCT (MHz) , CURRENT−GAIN BANDWIDTH f T 10 1 10 100 1000 IC, COLLECTOR CURRENT (mA)
Figure 7. fT (MHZ) versus IC (mA) VCE = 5.0 V
1.0 D = 0.5 0.2 THERMAL 0.1 0.1 0.05 ANCE TRANSIENT 0.02 RESIST 0.01 0.01 SINGLE PULSE r(t), NORMALIZED 0.001 0.00001 0.0001 0.001 0.01 0.1 1.0 10 100 1000 t, TIME (sec)
Figure 8. Normalized Thermal Response www.onsemi.com 3
