Datasheet LTC2063, LTC2064, LTC2065 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 2µA Supply Current, Low IB, Zero-Drift Operational Amplifiers |
| Pages / Page | 32 / 3 — ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. … |
| Revision | C |
| File Format / Size | PDF / 3.1 Mb |
| Document Language | English |
ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE
Model Line for this Datasheet
- LTC2063HS5#TRMPBF LTC2063HS5#TRPBF LTC2063HSC6#TRMPBF LTC2063HSC6#TRPBF LTC2063IS5#TRMPBF LTC2063IS5#TRPBF LTC2063ISC6#TRMPBF LTC2063ISC6#TRPBF
Text Version of Document

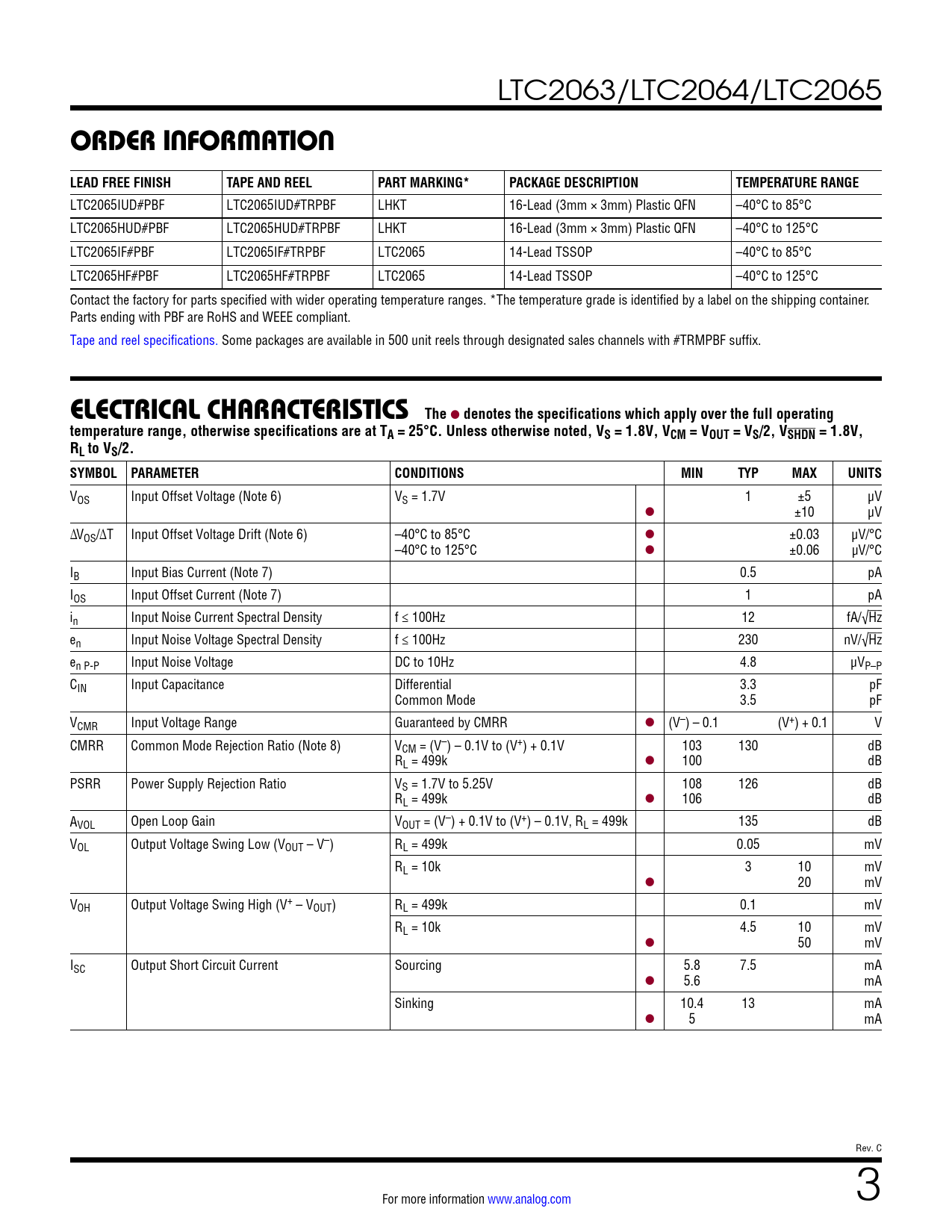

LTC2063/LTC2064/LTC2065
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2065IUD#PBF LTC2065IUD#TRPBF LHKT 16-Lead (3mm × 3mm) Plastic QFN –40°C to 85°C LTC2065HUD#PBF LTC2065HUD#TRPBF LHKT 16-Lead (3mm × 3mm) Plastic QFN –40°C to 125°C LTC2065IF#PBF LTC2065IF#TRPBF LTC2065 14-Lead TSSOP –40°C to 85°C LTC2065HF#PBF LTC2065HF#TRPBF LTC2065 14-Lead TSSOP –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Parts ending with PBF are RoHS and WEEE compliant. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. Unless otherwise noted, VS = 1.8V, VCM = VOUT = VS/2, VSHDN = 1.8V, RL to VS/2. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 6) VS = 1.7V 1 ±5 μV l ±10 μV ΔVOS/ΔT Input Offset Voltage Drift (Note 6) –40°C to 85°C l ±0.03 μV/°C –40°C to 125°C l ±0.06 µV/°C IB Input Bias Current (Note 7) 0.5 pA IOS Input Offset Current (Note 7) 1 pA in Input Noise Current Spectral Density f ≤ 100Hz 12 fA/√Hz en Input Noise Voltage Spectral Density f ≤ 100Hz 230 nV/√Hz en P-P Input Noise Voltage DC to 10Hz 4.8 μVP–P CIN Input Capacitance Differential 3.3 pF Common Mode 3.5 pF VCMR Input Voltage Range Guaranteed by CMRR l (V–) – 0.1 (V+) + 0.1 V CMRR Common Mode Rejection Ratio (Note 8) VCM = (V–) – 0.1V to (V+) + 0.1V 103 130 dB RL = 499k l 100 dB PSRR Power Supply Rejection Ratio VS = 1.7V to 5.25V 108 126 dB RL = 499k l 106 dB AVOL Open Loop Gain VOUT = (V–) + 0.1V to (V+) – 0.1V, RL = 499k 135 dB VOL Output Voltage Swing Low (VOUT – V–) RL = 499k 0.05 mV RL = 10k 3 10 mV l 20 mV VOH Output Voltage Swing High (V+ – VOUT) RL = 499k 0.1 mV RL = 10k 4.5 10 mV l 50 mV ISC Output Short Circuit Current Sourcing 5.8 7.5 mA l 5.6 mA Sinking 10.4 13 mA l 5 mA Rev. C For more information www.analog.com 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
