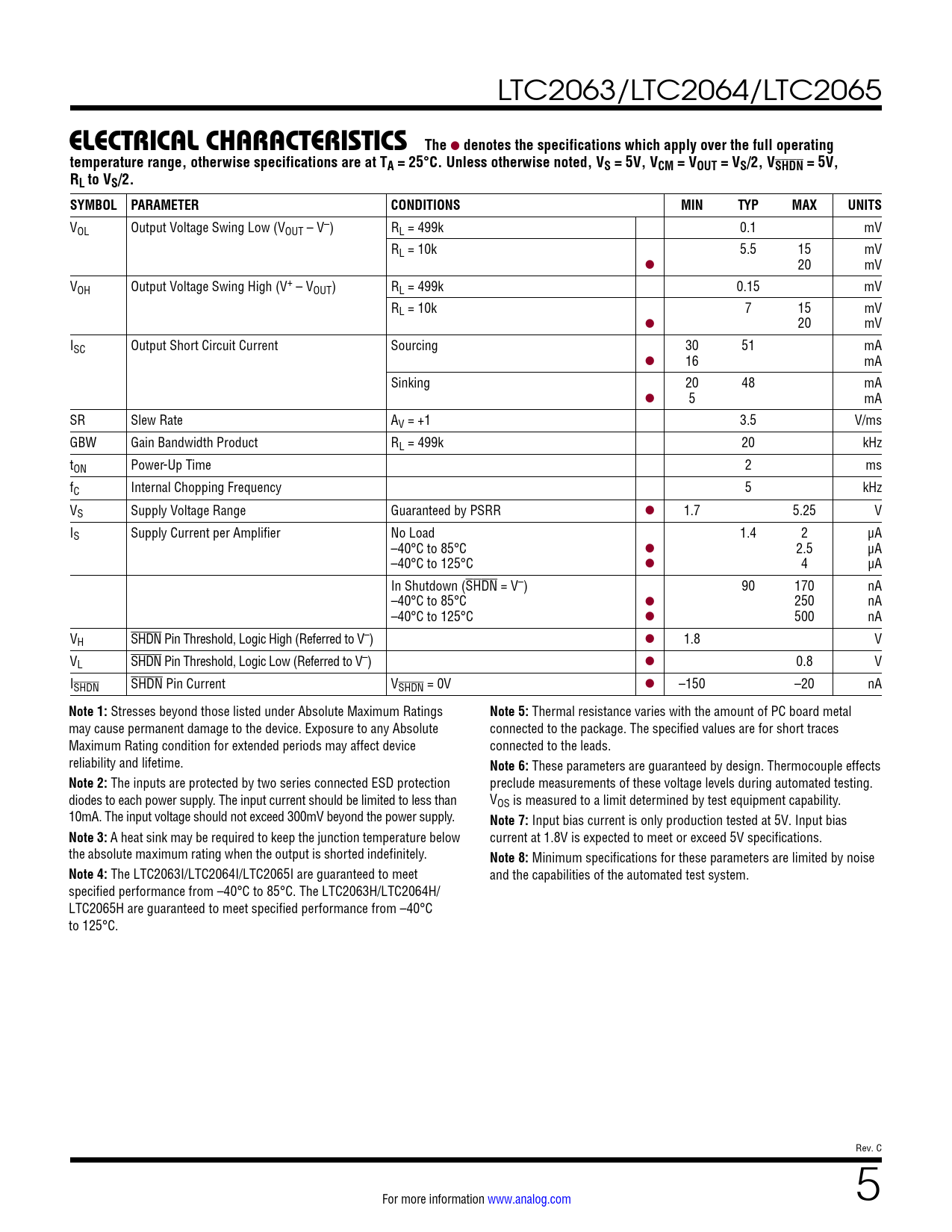

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LTC2063HS5#TRMPBF LTC2063HS5#TRPBF LTC2063HSC6#TRMPBF LTC2063HSC6#TRPBF LTC2063IS5#TRMPBF LTC2063IS5#TRPBF LTC2063ISC6#TRMPBF LTC2063ISC6#TRPBF
Text Version of Document
link to page 2 LTC2063/LTC2064/LTC2065
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. Unless otherwise noted, VS = 5V, VCM = VOUT = VS/2, VSHDN = 5V, RL to VS/2. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOL Output Voltage Swing Low (VOUT – V–) RL = 499k 0.1 mV RL = 10k 5.5 15 mV l 20 mV VOH Output Voltage Swing High (V+ – VOUT) RL = 499k 0.15 mV RL = 10k 7 15 mV l 20 mV ISC Output Short Circuit Current Sourcing 30 51 mA l 16 mA Sinking 20 48 mA l 5 mA SR Slew Rate AV = +1 3.5 V/ms GBW Gain Bandwidth Product RL = 499k 20 kHz tON Power-Up Time 2 ms fC Internal Chopping Frequency 5 kHz VS Supply Voltage Range Guaranteed by PSRR l 1.7 5.25 V IS Supply Current per Amplifier No Load 1.4 2 μA –40°C to 85°C l 2.5 μA –40°C to 125°C l 4 µA In Shutdown (SHDN = V–) 90 170 nA –40°C to 85°C l 250 nA –40°C to 125°C l 500 nA VH SHDN Pin Threshold, Logic High (Referred to V–) l 1.8 V VL SHDN Pin Threshold, Logic Low (Referred to V–) l 0.8 V ISHDN SHDN Pin Current VSHDN = 0V l –150 –20 nA
