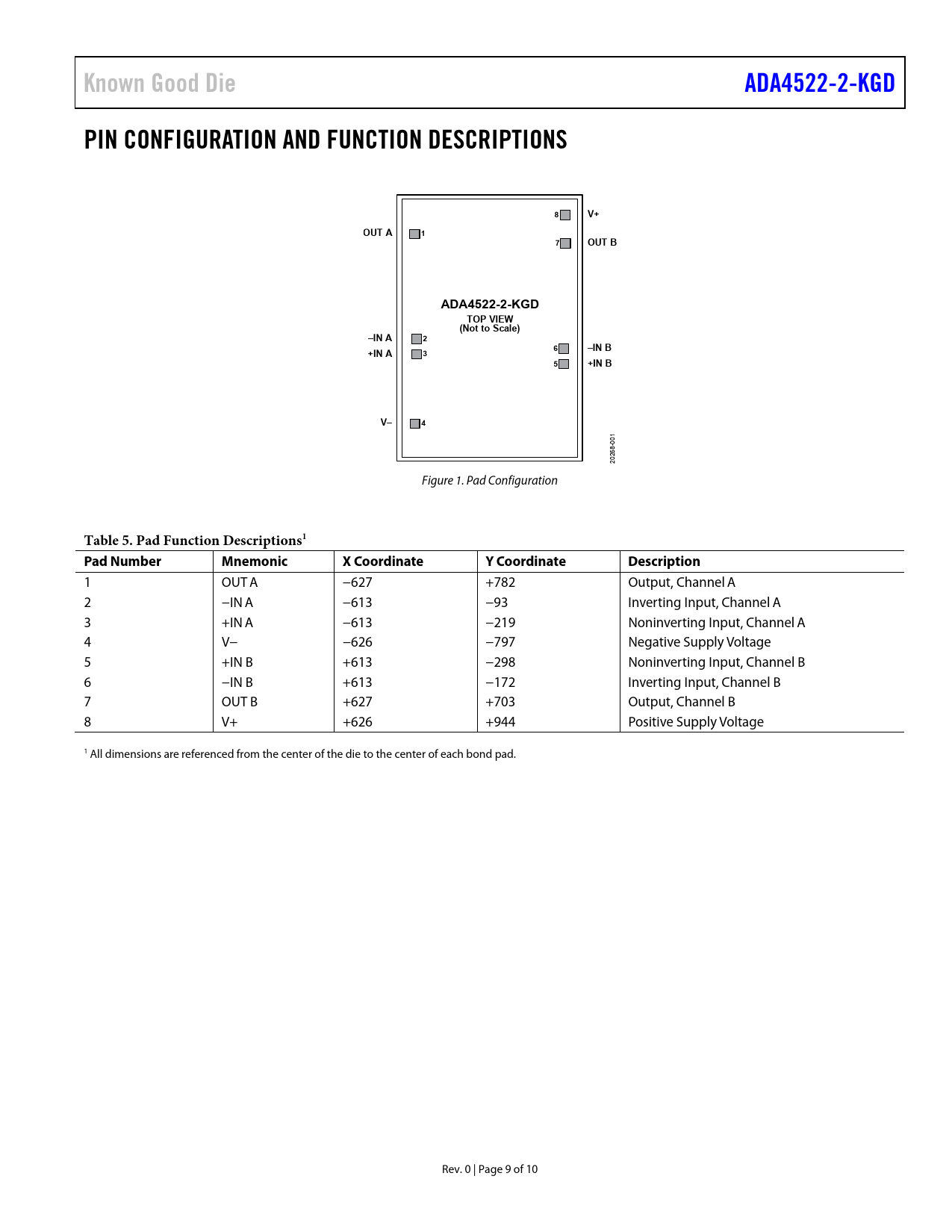

Known Good Die. ADA4522-2-KGD. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. OUT A. OUT B. TOP VIEW. (Not to Scale). –IN A. –IN B. +IN A
Model Line for this Datasheet
Text Version of Document
Known Good Die ADA4522-2-KGD PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 8 V+ OUT A 1 7 OUT B ADA4522-2-KGD TOP VIEW (Not to Scale) –IN A 2 –IN B +IN A 6 3 5 +IN B V– 4
001 68- 202 Figure 1. Pad Configuration
Table 5. Pad Function Descriptions1 Pad Number Mnemonic X Coordinate Y Coordinate Description
1 OUT A −627 +782 Output, Channel A 2 −IN A −613 −93 Inverting Input, Channel A 3 +IN A −613 −219 Noninverting Input, Channel A 4 V− −626 −797 Negative Supply Voltage 5 +IN B +613 −298 Noninverting Input, Channel B 6 −IN B +613 −172 Inverting Input, Channel B 7 OUT B +627 +703 Output, Channel B 8 V+ +626 +944 Positive Supply Voltage 1 All dimensions are referenced from the center of the die to the center of each bond pad. Rev. 0 | Page 9 of 10 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5.0 V OPERATION ELECTRICAL CHARACTERISTICS—30 V OPERATION ELECTRICAL CHARACTERISTICS—55 V OPERATION ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
