Datasheet AD8565, AD8566, AD8567 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 16 V Rail-to-Rail Operational Amplifiers |
| Pages / Page | 13 / 4 — AD8565/AD8566/AD8567. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. … |
| Revision | H |
| File Format / Size | PDF / 335 Kb |
| Document Language | English |

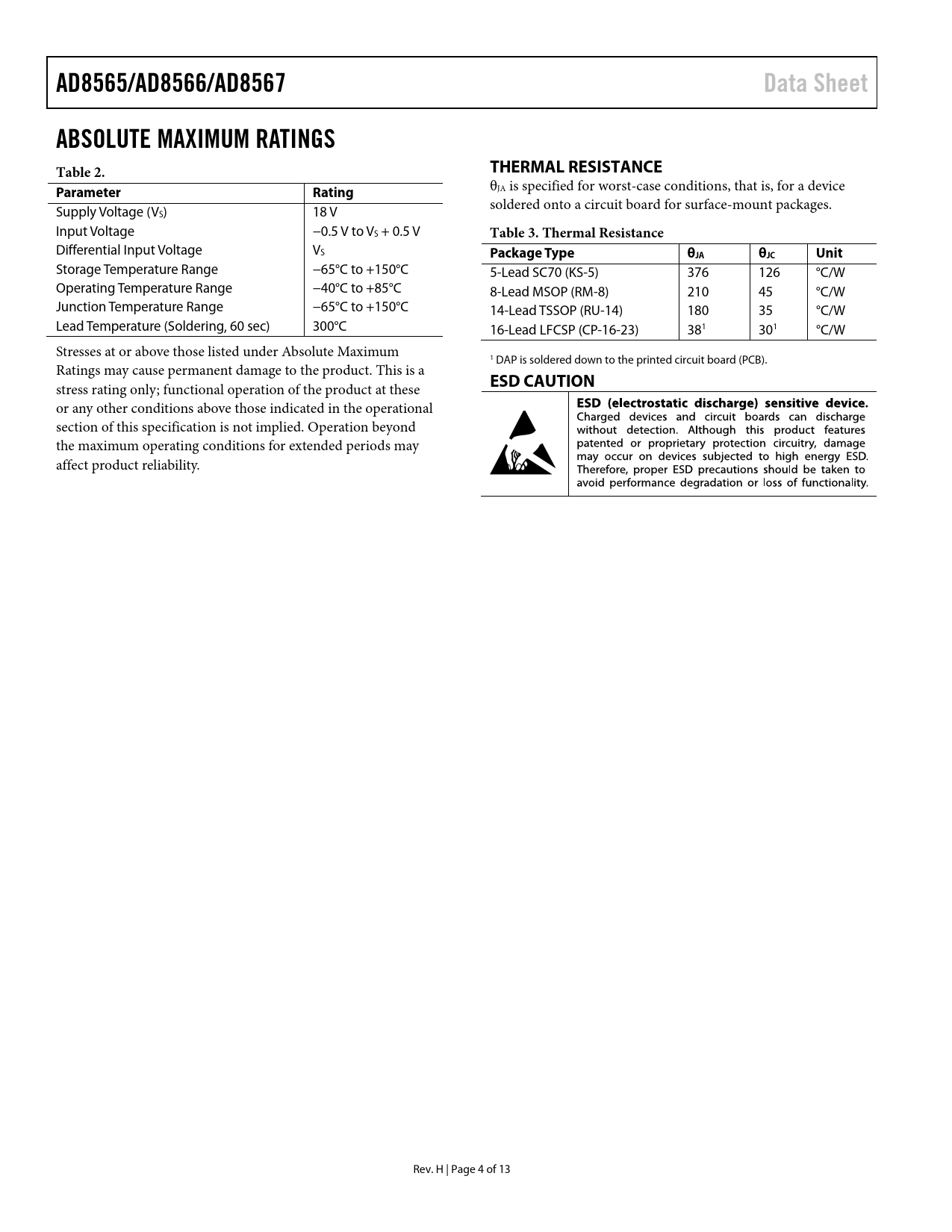

AD8565/AD8566/AD8567. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating
Model Line for this Datasheet
Text Version of Document
AD8565/AD8566/AD8567 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating
θJA is specified for worst-case conditions, that is, for a device Supply Voltage (V soldered onto a circuit board for surface-mount packages. S) 18 V Input Voltage −0.5 V to VS + 0.5 V
Table 3. Thermal Resistance
Differential Input Voltage VS
Package Type θJA θJC Unit
Storage Temperature Range −65°C to +150°C 5-Lead SC70 (KS-5) 376 126 °C/W Operating Temperature Range −40°C to +85°C 8-Lead MSOP (RM-8) 210 45 °C/W Junction Temperature Range −65°C to +150°C 14-Lead TSSOP (RU-14) 180 35 °C/W Lead Temperature (Soldering, 60 sec) 300°C 16-Lead LFCSP (CP-16-23) 381 301 °C/W Stresses at or above those listed under Absolute Maximum 1 DAP is soldered down to the printed circuit board (PCB). Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these
