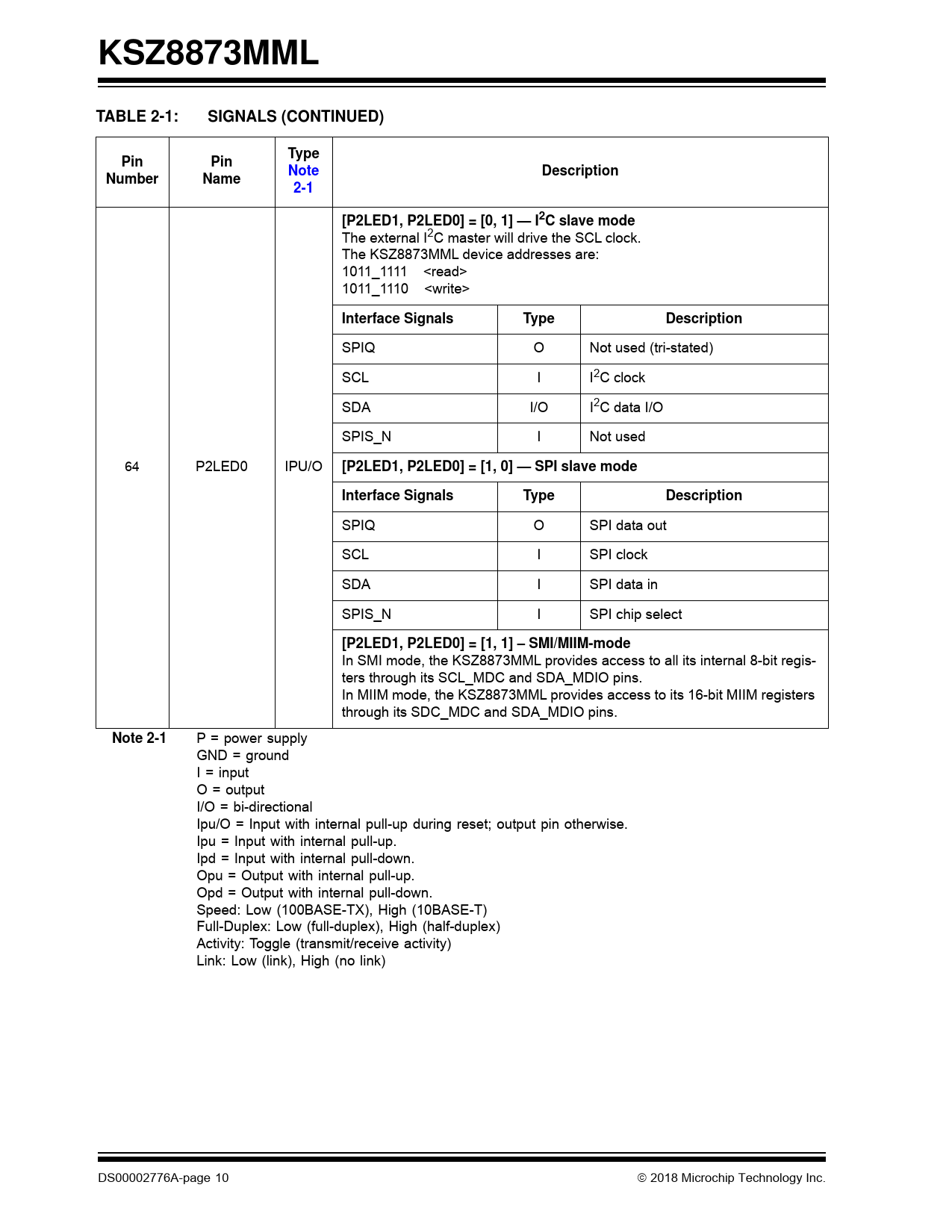

KSZ8873MML. TABLE 2-1:. SIGNALS (CONTINUED). Type. Pin. Note. Description. Number. Name. 2-1. [P2LED1, P2LED0] = [0, 1] — I2C slave mode
Model Line for this Datasheet
Text Version of Document
KSZ8873MML TABLE 2-1: SIGNALS (CONTINUED) Type Pin Pin Note Description Number Name 2-1 [P2LED1, P2LED0] = [0, 1] — I2C slave mode
The external I2C master will drive the SCL clock. The KSZ8873MML device addresses are: 1011_1111 <read> 1011_1110 <write>
Interface Signals Type Description
SPIQ O Not used (tri-stated) SCL I I2C clock SDA I/O I2C data I/O SPIS_N I Not used 64 P2LED0 IPU/O
[P2LED1, P2LED0] = [1, 0] — SPI slave mode Interface Signals Type Description
SPIQ O SPI data out SCL I SPI clock SDA I SPI data in SPIS_N I SPI chip select
[P2LED1, P2LED0] = [1, 1] – SMI/MIIM-mode
In SMI mode, the KSZ8873MML provides access to all its internal 8-bit regis- ters through its SCL_MDC and SDA_MDIO pins. In MIIM mode, the KSZ8873MML provides access to its 16-bit MIIM registers through its SDC_MDC and SDA_MDIO pins.
Note 2-1
P = power supply GND = ground I = input O = output I/O = bi-directional Ipu/O = Input with internal pull-up during reset; output pin otherwise. Ipu = Input with internal pull-up. Ipd = Input with internal pull-down. Opu = Output with internal pull-up. Opd = Output with internal pull-down. Speed: Low (100BASE-TX), High (10BASE-T) Full-Duplex: Low (full-duplex), High (half-duplex) Activity: Toggle (transmit/receive activity) Link: Low (link), High (no link) DS00002776A-page 10
