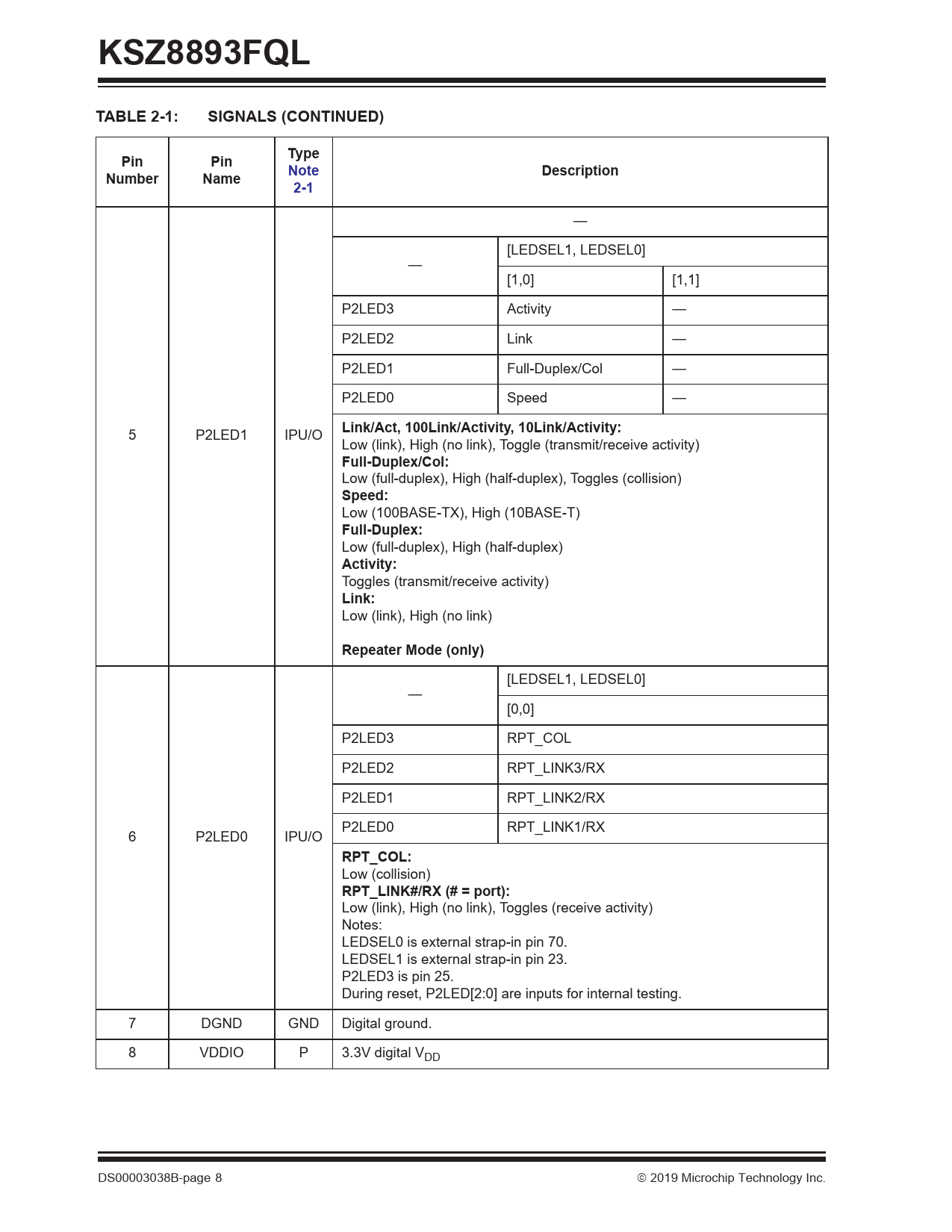

KSZ8893FQL. TABLE 2-1:. SIGNALS (CONTINUED). Type. Pin. Note. Description. Number. Name. 2-1. Link/Act, 100Link/Activity, 10Link/Activity:
Model Line for this Datasheet
Text Version of Document
KSZ8893FQL TABLE 2-1: SIGNALS (CONTINUED) Type Pin Pin Note Description Number Name 2-1
— [LEDSEL1, LEDSEL0] — [1,0] [1,1] P2LED3 Activity — P2LED2 Link — P2LED1 Full-Duplex/Col — P2LED0 Speed — 5 P2LED1 IPU/O
Link/Act, 100Link/Activity, 10Link/Activity:
Low (link), High (no link), Toggle (transmit/receive activity)
Full-Duplex/Col:
Low (full-duplex), High (half-duplex), Toggles (collision)
Speed:
Low (100BASE-TX), High (10BASE-T)
Full-Duplex:
Low (full-duplex), High (half-duplex)
Activity:
Toggles (transmit/receive activity)
Link:
Low (link), High (no link)
Repeater Mode (only)
[LEDSEL1, LEDSEL0] — [0,0] P2LED3 RPT_COL P2LED2 RPT_LINK3/RX P2LED1 RPT_LINK2/RX P2LED0 RPT_LINK1/RX 6 P2LED0 IPU/O
RPT_COL:
Low (collision)
RPT_LINK#/RX (# = port):
Low (link), High (no link), Toggles (receive activity) Notes: LEDSEL0 is external strap-in pin 70. LEDSEL1 is external strap-in pin 23. P2LED3 is pin 25. During reset, P2LED[2:0] are inputs for internal testing. 7 DGND GND Digital ground. 8 VDDIO P 3.3V digital VDD DS00003038B-page 8
