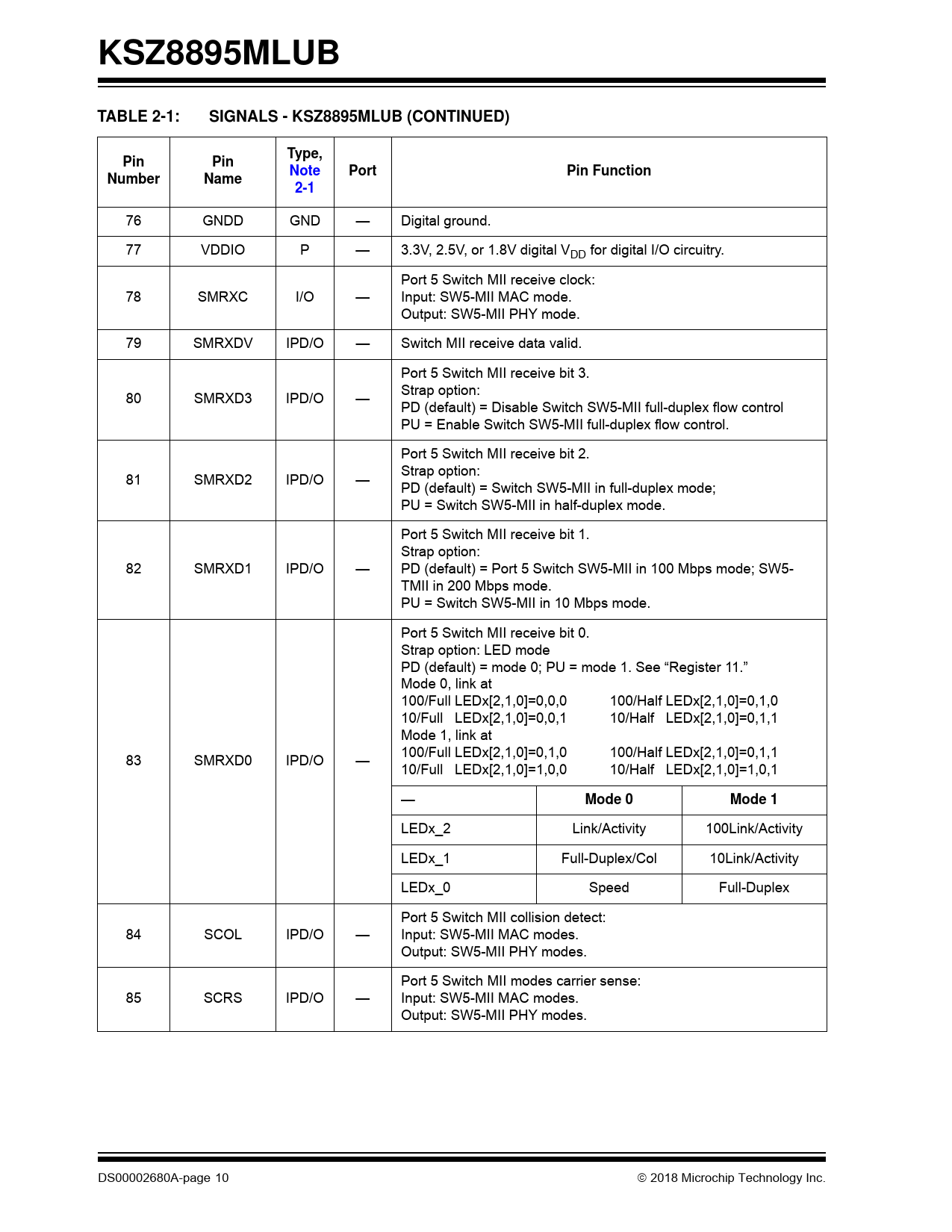

KSZ8895MLUB TABLE 2-1: SIGNALS - KSZ8895MLUB (CONTINUED) Type, Pin Pin Note Port Pin Function Number Name 2-1
76 GNDD GND — Digital ground. 77 VDDIO P — 3.3V, 2.5V, or 1.8V digital VDD for digital I/O circuitry. Port 5 Switch MII receive clock: 78 SMRXC I/O — Input: SW5-MII MAC mode. Output: SW5-MII PHY mode. 79 SMRXDV IPD/O — Switch MII receive data valid. Port 5 Switch MII receive bit 3. Strap option: 80 SMRXD3 IPD/O — PD (default) = Disable Switch SW5-MII full-duplex flow control PU = Enable Switch SW5-MII full-duplex flow control. Port 5 Switch MII receive bit 2. Strap option: 81 SMRXD2 IPD/O — PD (default) = Switch SW5-MII in full-duplex mode; PU = Switch SW5-MII in half-duplex mode. Port 5 Switch MII receive bit 1. Strap option: 82 SMRXD1 IPD/O — PD (default) = Port 5 Switch SW5-MII in 100 Mbps mode; SW5- TMII in 200 Mbps mode. PU = Switch SW5-MII in 10 Mbps mode. Port 5 Switch MII receive bit 0. Strap option: LED mode PD (default) = mode 0; PU = mode 1. See “Register 11.” Mode 0, link at 100/Full LEDx[2,1,0]=0,0,0 100/Half LEDx[2,1,0]=0,1,0 10/Full LEDx[2,1,0]=0,0,1 10/Half LEDx[2,1,0]=0,1,1 Mode 1, link at 83 SMRXD0 IPD/O — 100/Full LEDx[2,1,0]=0,1,0 100/Half LEDx[2,1,0]=0,1,1 10/Full LEDx[2,1,0]=1,0,0 10/Half LEDx[2,1,0]=1,0,1 —
Mode 0 Mode 1
LEDx_2 Link/Activity 100Link/Activity LEDx_1 Full-Duplex/Col 10Link/Activity LEDx_0 Speed Full-Duplex Port 5 Switch MII collision detect: 84 SCOL IPD/O — Input: SW5-MII MAC modes. Output: SW5-MII PHY modes. Port 5 Switch MII modes carrier sense: 85 SCRS IPD/O — Input: SW5-MII MAC modes. Output: SW5-MII PHY modes. DS00002680A-page 10
