0.2 GHz to 8 GHz, GaAs, HBT MMIC,. Divide by 8 Prescaler. Data Sheet. HMC434. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document

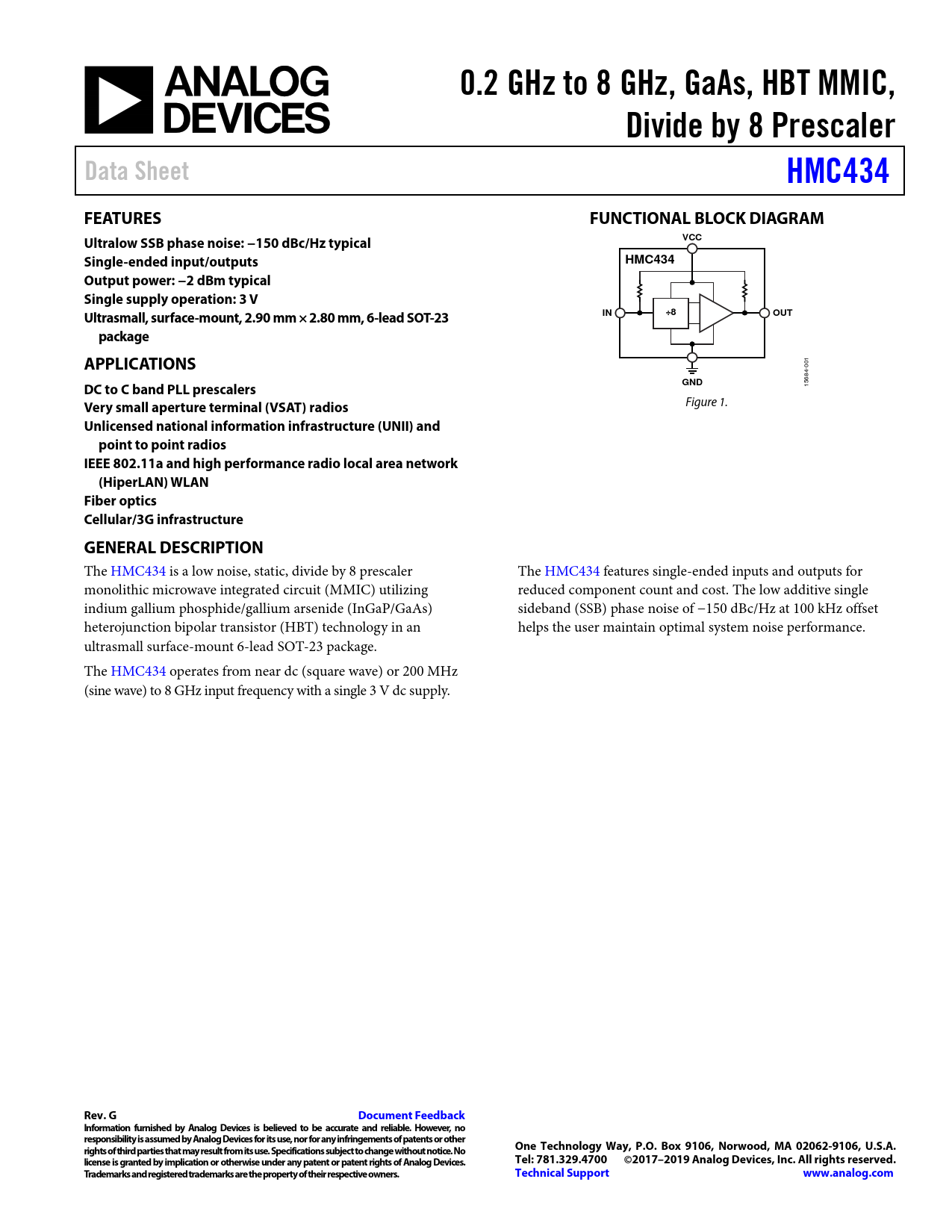

0.2 GHz to 8 GHz, GaAs, HBT MMIC, Divide by 8 Prescaler Data Sheet HMC434 FEATURES FUNCTIONAL BLOCK DIAGRAM Ultralow SSB phase noise: −150 dBc/Hz typical VCC Single-ended input/outputs HMC434 Output power: −2 dBm typical Single supply operation: 3 V Ultrasmall, surface-mount, 2.90 mm × 2.80 mm, 6-lead SOT-23 IN ÷8 OUT package APPLICATIONS
001
DC to C band PLL prescalers GND
15684-
Very small aperture terminal (VSAT) radios
Figure 1.
Unlicensed national information infrastructure (UNII) and point to point radios IEEE 802.11a and high performance radio local area network (HiperLAN) WLAN Fiber optics Cellular/3G infrastructure GENERAL DESCRIPTION
The HMC434 is a low noise, static, divide by 8 prescaler The HMC434 features single-ended inputs and outputs for monolithic microwave integrated circuit (MMIC) utilizing reduced component count and cost. The low additive single indium gal ium phosphide/gal ium arsenide (InGaP/GaAs) sideband (SSB) phase noise of −150 dBc/Hz at 100 kHz offset heterojunction bipolar transistor (HBT) technology in an helps the user maintain optimal system noise performance. ultrasmall surface-mount 6-lead SOT-23 package. The HMC434 operates from near dc (square wave) or 200 MHz (sine wave) to 8 GHz input frequency with a single 3 V dc supply.
