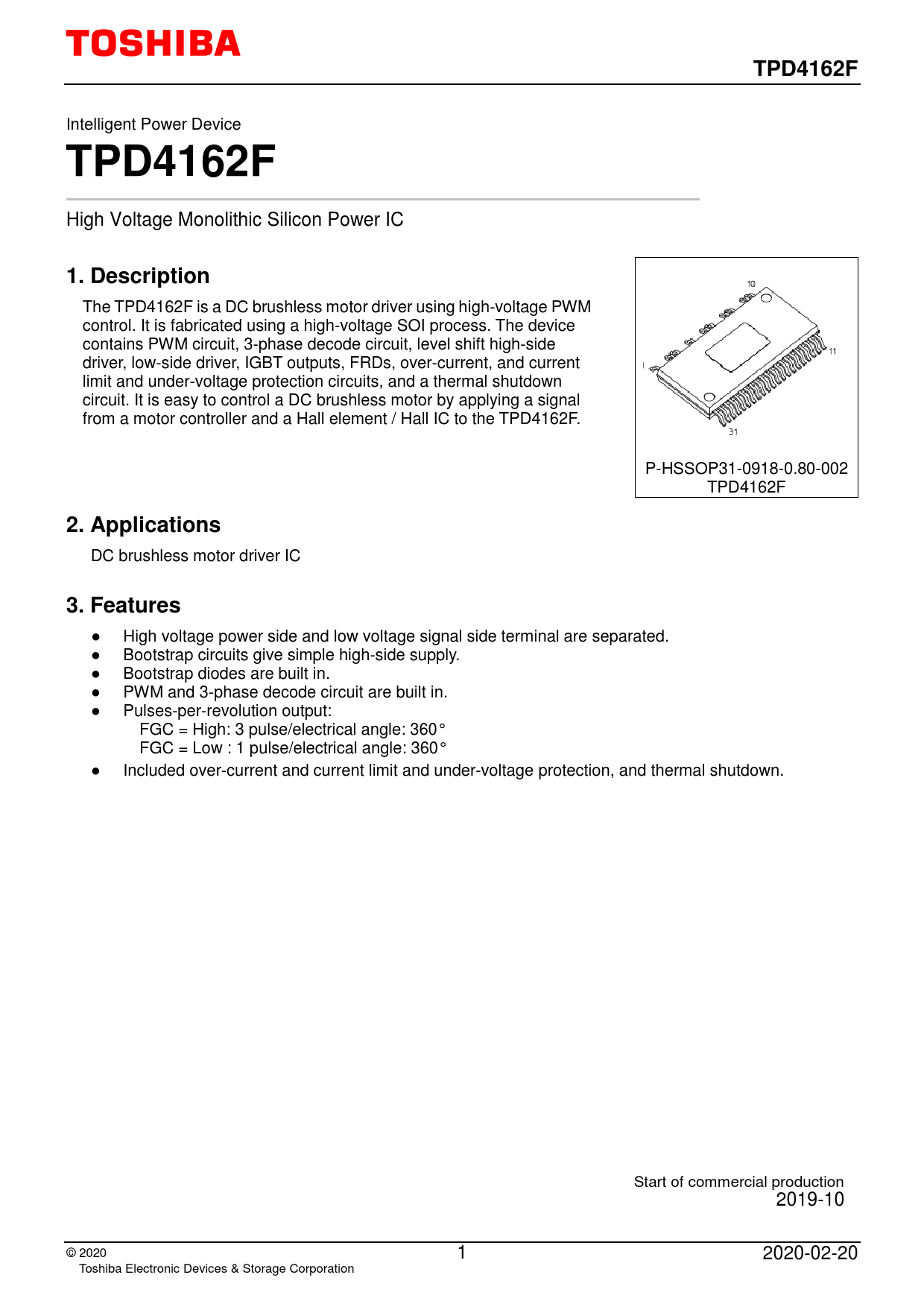

TPD4162F
Intelligent Power Device
TPD4162F
High Voltage Monolithic Silicon Power IC
1. Description
The TPD4162F is a DC brushless motor driver using high-voltage PWM control. It is fabricated using a high-voltage SOI process. The device contains PWM circuit, 3-phase decode circuit, level shift high-side driver, low-side driver, IGBT outputs, FRDs, over-current, and current limit and under-voltage protection circuits, and a thermal shutdown circuit. It is easy to control a DC brushless motor by applying a signal from a motor controller and a Hall element / Hall IC to the TPD4162F. P-HSSOP31-0918-0.80-002 TPD4162F
2. Applications
DC brushless motor driver IC
3. Features
● High voltage power side and low voltage signal side terminal are separated. ● Bootstrap circuits give simple high-side supply. ● Bootstrap diodes are built in. ● PWM and 3-phase decode circuit are built in. ● Pulses-per-revolution output: FGC = High: 3 pulse/electrical angle: 360° FGC = Low : 1 pulse/electrical angle: 360° ● Included over-current and current limit and under-voltage protection, and thermal shutdown. Start of commercial production 2019-10 © 2 020 1 2020-02-20 Toshiba Electronic Devices & Storage Corporation
