Datasheet AD5592R-1-KGD (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 8 Channel, 12-Bit, Configurable ADC/DAC with on-chip Reference, SPI interface |
| Pages / Page | 10 / 7 — Known Good Die. AD5592R-1-KGD. ABSOLUTE MAXIMUM RATINGS. Table 3. … |
| File Format / Size | PDF / 201 Kb |
| Document Language | English |

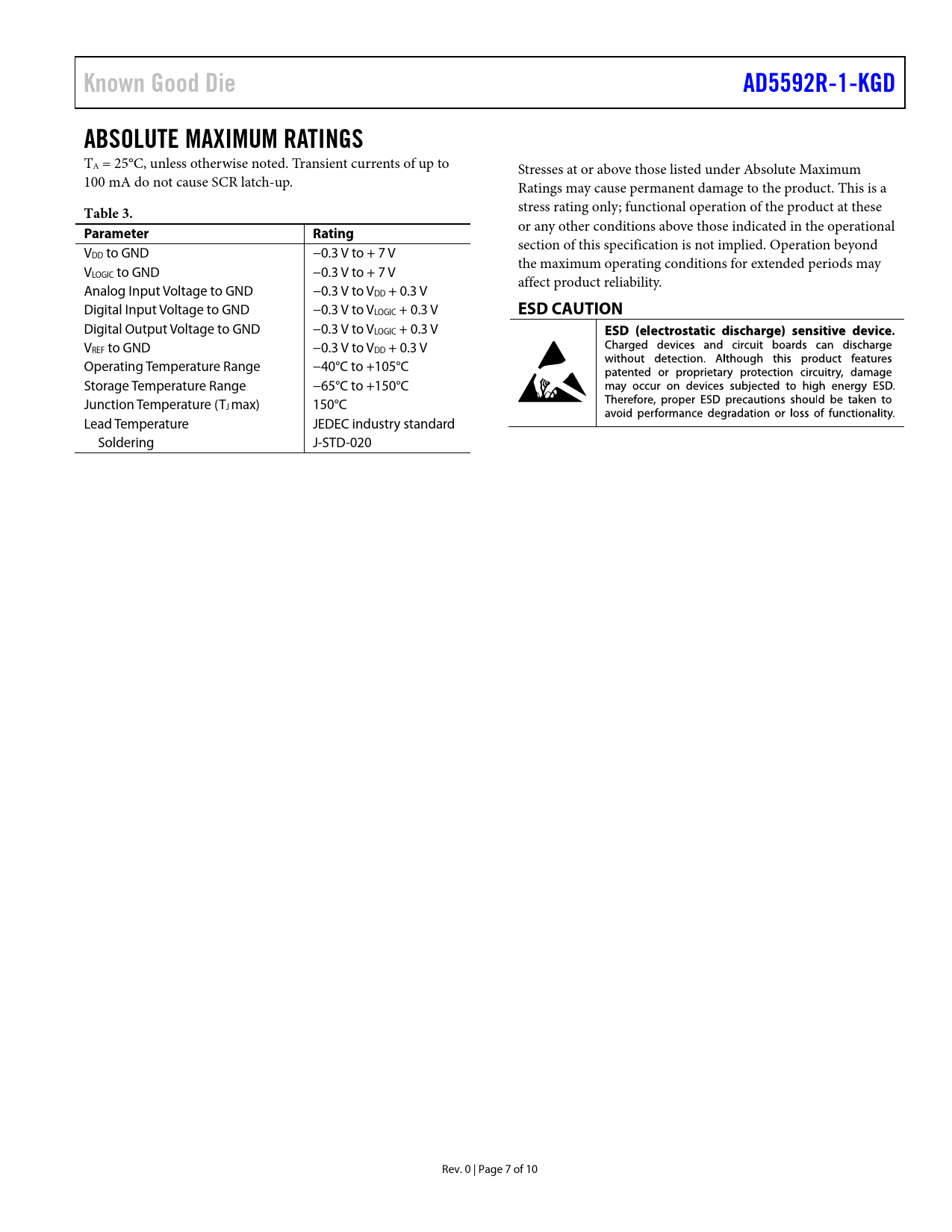

Known Good Die. AD5592R-1-KGD. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Known Good Die AD5592R-1-KGD ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Transient currents of up to Stresses at or above those listed under Absolute Maximum 100 mA do not cause SCR latch-up. Ratings may cause permanent damage to the product. This is a
Table 3.
stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond VDD to GND −0.3 V to + 7 V the maximum operating conditions for extended periods may VLOGIC to GND −0.3 V to + 7 V affect product reliability. Analog Input Voltage to GND −0.3 V to VDD + 0.3 V Digital Input Voltage to GND −0.3 V to VLOGIC + 0.3 V
ESD CAUTION
Digital Output Voltage to GND −0.3 V to VLOGIC + 0.3 V VREF to GND −0.3 V to VDD + 0.3 V Operating Temperature Range −40°C to +105°C Storage Temperature Range −65°C to +150°C Junction Temperature (T J max) 150°C Lead Temperature JEDEC industry standard Soldering J-STD-020 Rev. 0 | Page 7 of 10 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Timing Characteristics Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
