Datasheet TGM-NS, TDM-NE (HALO) - 3
| Manufacturer | HALO |
| Description | 1.5kVrms DC/DC Converter. 6 Pin SMD or DIL Isolation Modules |
| Pages / Page | 3 / 3 — Maxim. MAX253/MAX845. DC/DC. Converter. Application. Note. The. TDM. and. … |
| File Format / Size | PDF / 603 Kb |
| Document Language | English |
Maxim. MAX253/MAX845. DC/DC. Converter. Application. Note. The. TDM. and. TGM. series. of. transformers. have. been. designed. specifically. for. use. with
Model Line for this Datasheet
Text Version of Document

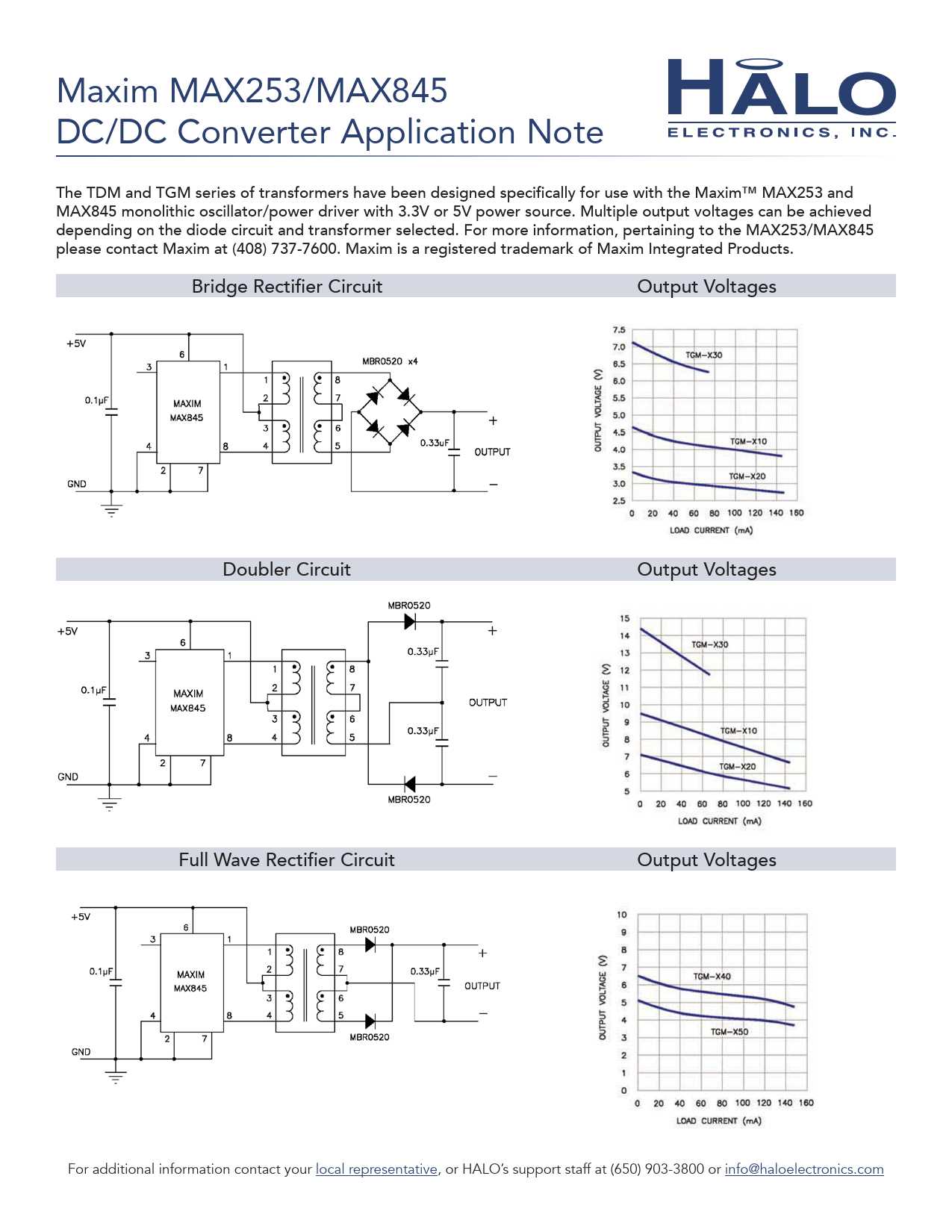

Maxim MAX253/MAX845 DC/DC Converter Appl
ication Note The TDM and TGM series of transformers have been designed specifically for use with the Maxim™ MAX253 and MAX845 monolithic oscillator/power driver with 3.3V or 5V power source. Multiple output voltages can be achieved depending on the diode circuit and transformer selected. For more information, pertaining to the MAX253/MAX845 please contact Maxim at (408) 737-7600. Maxim is a registered trademark of Maxim Integrated Products. Bridge Rectifier Circuit Output Voltages Doubler Circuit Output Voltages Full Wave Rectifier Circuit Output Voltages For additional information contact your local representative, or HALO’s support staff at (650) 903-3800 or info@haloelectronics.com
ication Note The TDM and TGM series of transformers have been designed specifically for use with the Maxim™ MAX253 and MAX845 monolithic oscillator/power driver with 3.3V or 5V power source. Multiple output voltages can be achieved depending on the diode circuit and transformer selected. For more information, pertaining to the MAX253/MAX845 please contact Maxim at (408) 737-7600. Maxim is a registered trademark of Maxim Integrated Products. Bridge Rectifier Circuit Output Voltages Doubler Circuit Output Voltages Full Wave Rectifier Circuit Output Voltages For additional information contact your local representative, or HALO’s support staff at (650) 903-3800 or info@haloelectronics.com
