Datasheet BCR431U (Infineon) - 3
| Manufacturer | Infineon |
| Description | Low Voltage Drop LED Driver IC |
| Pages / Page | 11 / 3 — BCR431U Low Voltage Drop LED Driver IC. Application circuit. N.C. LED. … |
| Revision | 01_00 |
| File Format / Size | PDF / 299 Kb |
| Document Language | English |

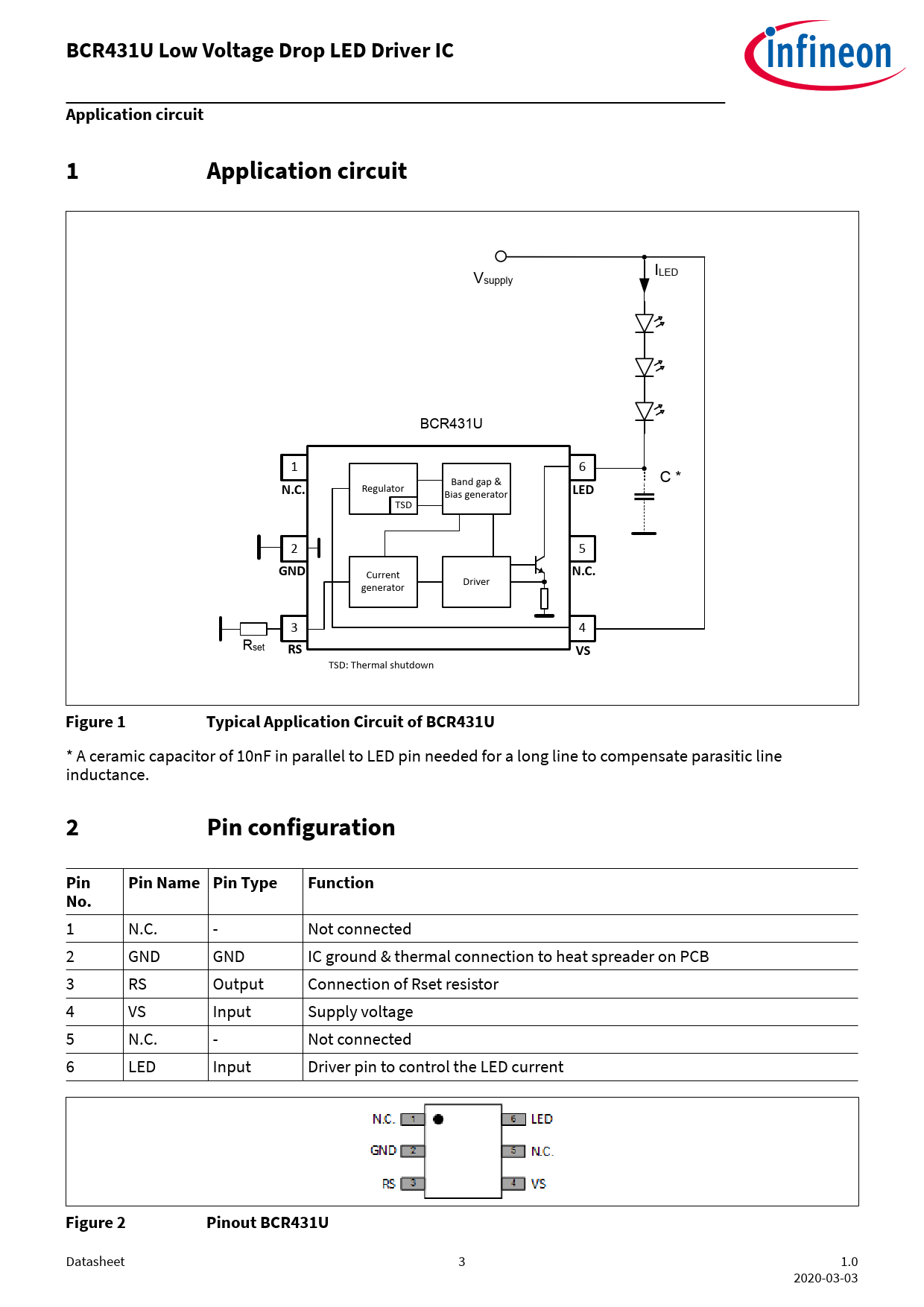

BCR431U Low Voltage Drop LED Driver IC. Application circuit. N.C. LED. GND. Figure 1. Typical Application Circuit of BCR431U
Model Line for this Datasheet
Text Version of Document
BCR431U Low Voltage Drop LED Driver IC Application circuit 1 Application circuit
V ILED supply BCR431U 1 6 C *
N.C.
Regulator Band gap &
LED
С Bias generator TSD 2 5
GND
Current
N.C.
Driver generator 3 4 Rset
RS VS
TSD: Thermal shutdown
Figure 1 Typical Application Circuit of BCR431U
* A ceramic capacitor of 10nF in parallel to LED pin needed for a long line to compensate parasitic line inductance.
2 Pin configuration Pin Pin Name Pin Type Function No.
1 N.C. - Not connected 2 GND GND IC ground & thermal connection to heat spreader on PCB 3 RS Output Connection of Rset resistor 4 VS Input Supply voltage 5 N.C. - Not connected 6 LED Input Driver pin to control the LED current
Figure 2 Pinout BCR431U
