Nexperia. PMEG120G10ELR. 120 V, 1 A Silicon Germanium (SiGe) rectifier. Fig. 7. Average reverse power dissipation as a
Model Line for this Datasheet
Text Version of Document
Nexperia PMEG120G10ELR 120 V, 1 A Silicon Germanium (SiGe) rectifier
aaa-030184 6 aaa-030185 1.5 (1) PR(AV) IF(AV) (mW) (1) (A) 4 (2) 1.0 (2) (3) (3) (4) 2 0.5 (4) 0 0 0 40 80 120 0 50 100 150 200 VR (V) Tamb (°C) Tj = 175 °C FR4 PCB, standard footprint (1) δ = 1; DC Tj = 175 °C (2) δ = 0.9 (1) δ = 1; DC (3) δ = 0.8 (2) δ = 0.5; f = 20 kHz (4) δ = 0.5 (3) δ = 0.2; f = 20 kHz

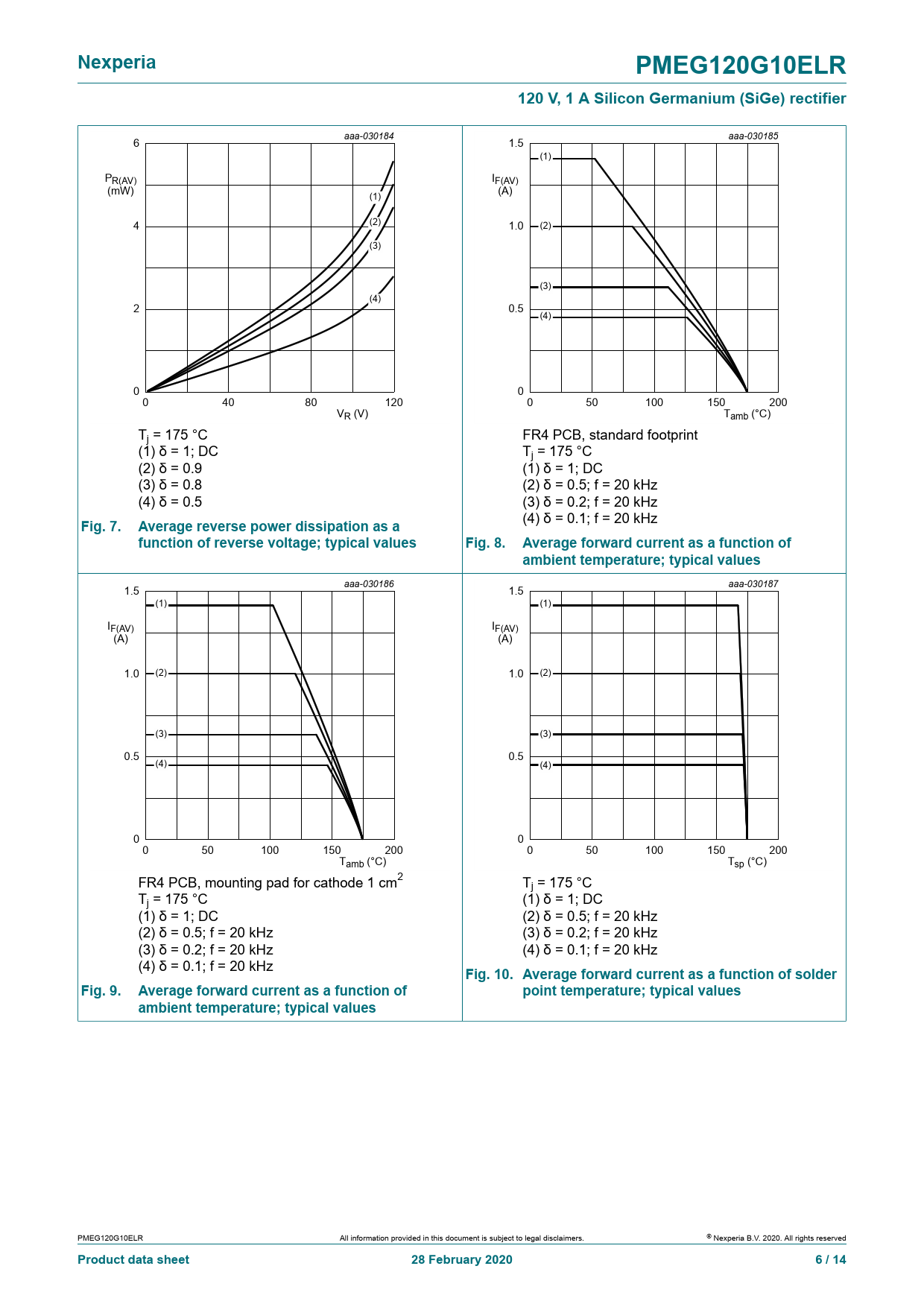

Fig. 7. Average reverse power dissipation as a
(4) δ = 0.1; f = 20 kHz
function of reverse voltage; typical values Fig. 8. Average forward current as a function of ambient temperature; typical values
aaa-030186 1.5 aaa-030187 1.5 (1) (1) IF(AV) IF(AV) (A) (A) 1.0 (2) 1.0 (2) (3) (3) 0.5 0.5 (4) (4) 0 0 0 50 100 150 200 0 50 100 150 200 Tamb (°C) Tsp (°C) FR4 PCB, mounting pad for cathode 1 cm2 Tj = 175 °C Tj = 175 °C (1) δ = 1; DC (1) δ = 1; DC (2) δ = 0.5; f = 20 kHz (2) δ = 0.5; f = 20 kHz (3) δ = 0.2; f = 20 kHz (3) δ = 0.2; f = 20 kHz (4) δ = 0.1; f = 20 kHz (4) δ = 0.1; f = 20 kHz
Fig. 10. Average forward current as a function of solder Fig. 9. Average forward current as a function of point temperature; typical values ambient temperature; typical values
