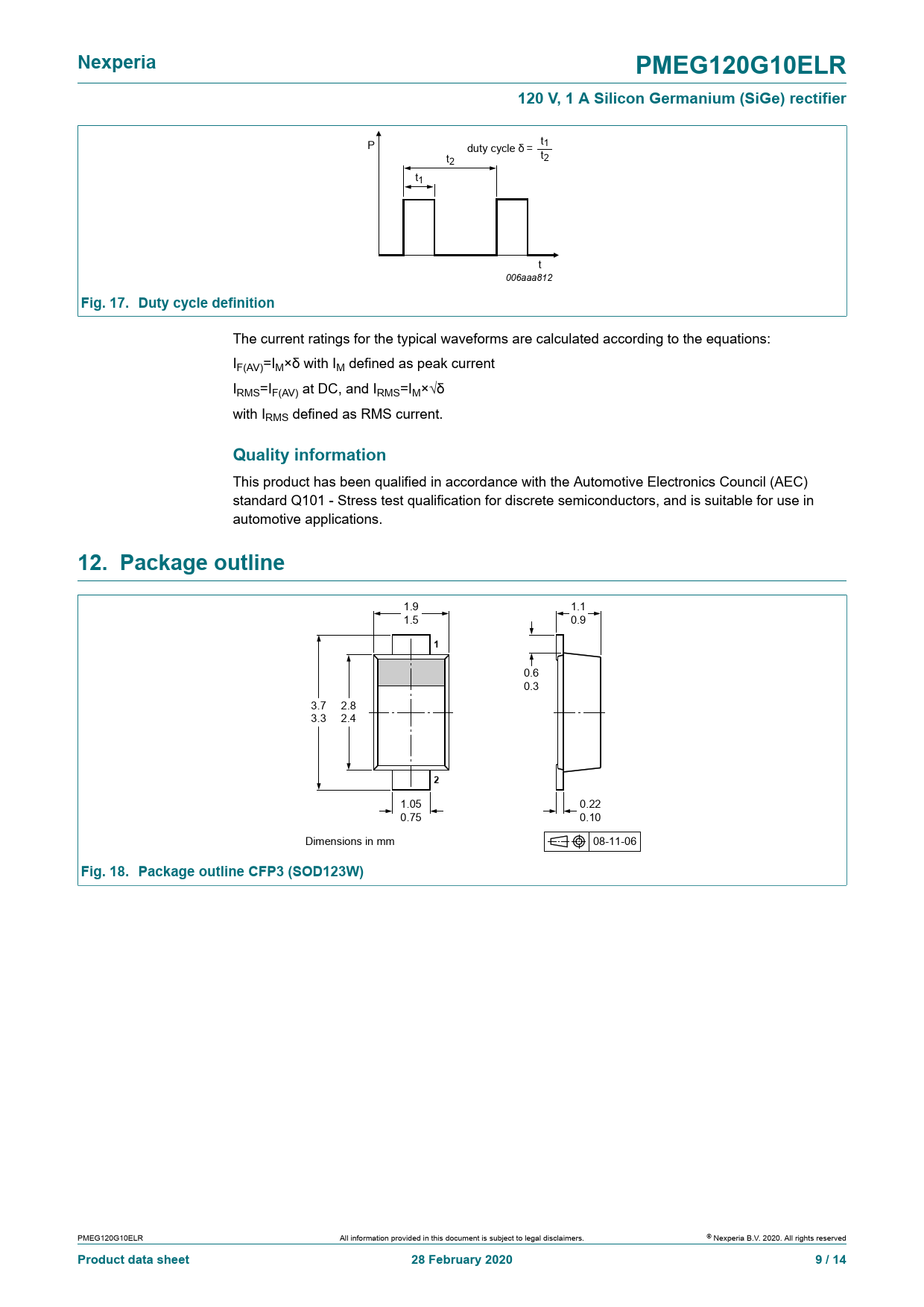

Nexperia. PMEG120G10ELR. 120 V, 1 A Silicon Germanium (SiGe) rectifier. Fig. 17. Duty cycle definition. Quality information
Model Line for this Datasheet
Text Version of Document
Nexperia PMEG120G10ELR 120 V, 1 A Silicon Germanium (SiGe) rectifier
t1 P duty cycle δ = t t 2 2 t1 t 006aaa812
Fig. 17. Duty cycle definition
The current ratings for the typical waveforms are calculated according to the equations: IF(AV)=IM×δ with IM defined as peak current IRMS=IF(AV) at DC, and IRMS=IM×√δ with IRMS defined as RMS current.
Quality information
This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications.
12. Package outline
1.9 1.1 1.5 0.9
1
0.6 0.3 3.7 2.8 3.3 2.4
2
1.05 0.22 0.75 0.10 Dimensions in mm 08-11-06
Fig. 18. Package outline CFP3 (SOD123W)
PMEG120G10ELR All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet 28 February 2020 9 / 14
