DescriptionAutomotive-compliant, 40V, 3.5A Synchronous Buck with Internal Compensation
Pages / Page21 / 6 — AP64352Q. Electrical Characteristics. Symbol. Parameter. Test Conditions. …
File Format / SizePDF / 1.2 Mb
Document LanguageEnglish

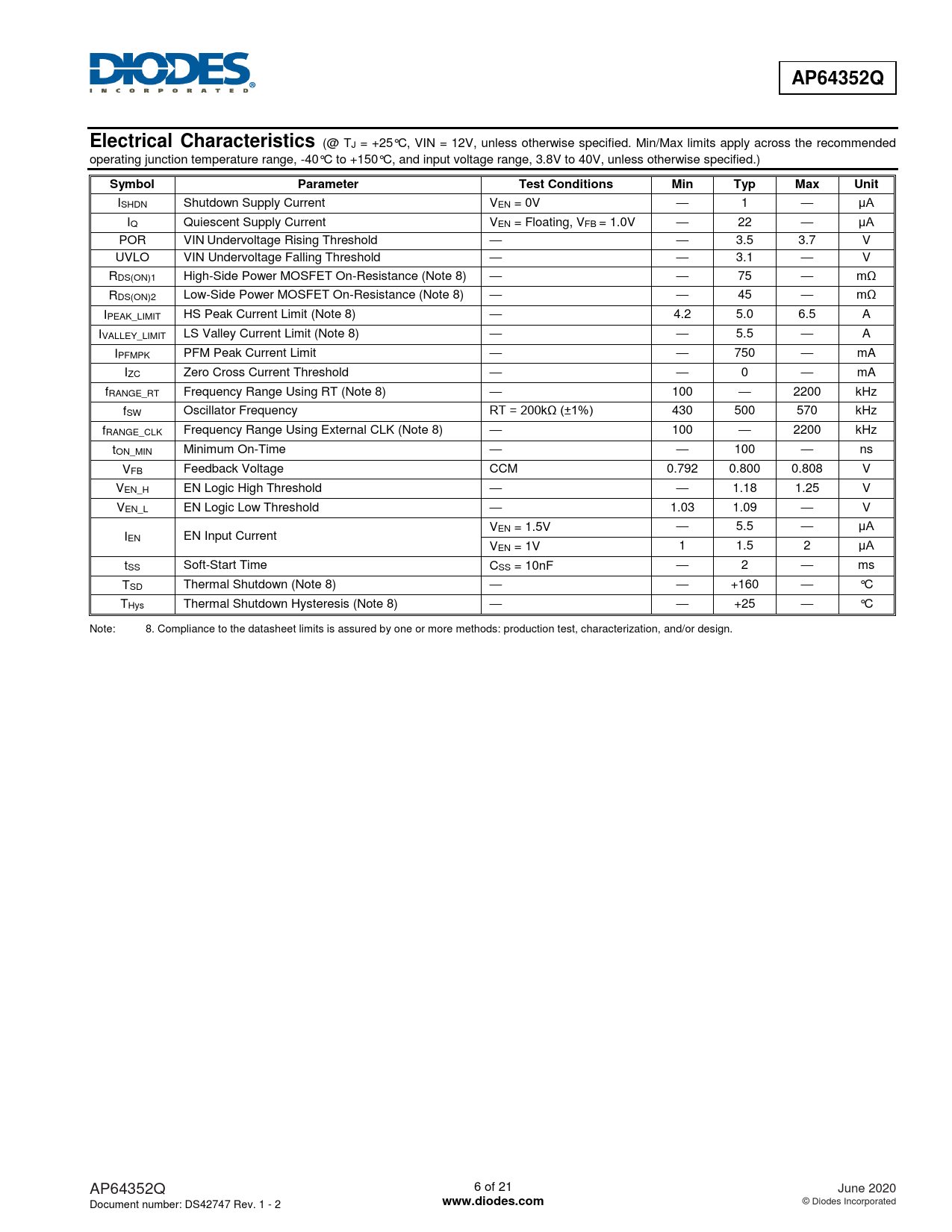

AP64352Q. Electrical Characteristics. Symbol. Parameter. Test Conditions. Min. Typ. Max. Unit. www.diodes.com

AP64352Q Electrical Characteristics Symbol Parameter Test Conditions Min Typ Max Unit www.diodes.com

Model Line for this Datasheet

Text Version of Document

AP64352Q Electrical Characteristics
(@ TJ = +25°C, VIN = 12V, unless otherwise specified. Min/Max limits apply across the recommended operating junction temperature range, -40°C to +150°C, and input voltage range, 3.8V to 40V, unless otherwise specified.)
Symbol Parameter Test Conditions Min Typ Max Unit
ISHDN Shutdown Supply Current VEN = 0V — 1 — μA IQ Quiescent Supply Current VEN = Floating, VFB = 1.0V — 22 — μA POR VIN Undervoltage Rising Threshold — — 3.5 3.7 V UVLO VIN Undervoltage Falling Threshold — — 3.1 — V RDS(ON)1 High-Side Power MOSFET On-Resistance (Note 8) — — 75 — mΩ RDS(ON)2 Low-Side Power MOSFET On-Resistance (Note 8) — — 45 — mΩ IPEAK_LIMIT HS Peak Current Limit (Note 8) — 4.2 5.0 6.5 A IVALLEY_LIMIT LS Valley Current Limit (Note 8) — — 5.5 — A IPFMPK PFM Peak Current Limit — — 750 — mA IZC Zero Cross Current Threshold — — 0 — mA fRANGE_RT Frequency Range Using RT (Note 8) — 100 — 2200 kHz fSW Oscillator Frequency RT = 200kΩ (±1%) 430 500 570 kHz fRANGE_CLK Frequency Range Using External CLK (Note 8) — 100 — 2200 kHz tON_MIN Minimum On-Time — — 100 — ns VFB Feedback Voltage CCM 0.792 0.800 0.808 V VEN_H EN Logic High Threshold — — 1.18 1.25 V VEN_L EN Logic Low Threshold — 1.03 1.09 — V VEN = 1.5V — 5.5 — μA IEN EN Input Current VEN = 1V 1 1.5 2 μA tSS Soft-Start Time CSS = 10nF — 2 — ms TSD Thermal Shutdown (Note 8) — — +160 — °C THys Thermal Shutdown Hysteresis (Note 8) — — +25 — °C Note: 8. Compliance to the datasheet limits is assured by one or more methods: production test, characterization, and/or design. AP64352Q 6 of 21 June 2020 Document number: DS42747 Rev. 1 - 2
