INTEGRATED CIRCUITS DIVISION

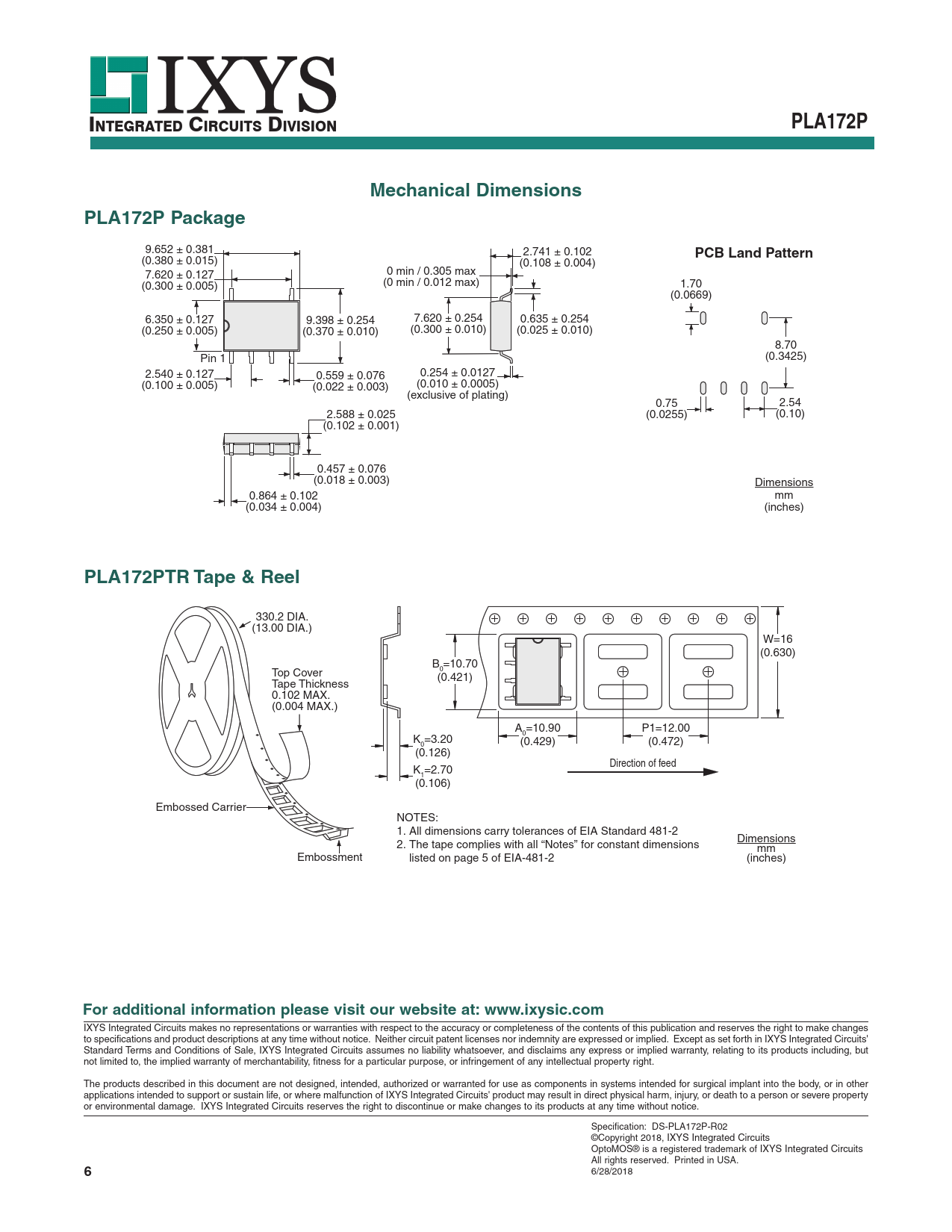

PLA172P Mechanical Dimensions PLA172P Package
9.652 ± 0.381 2.741 ± 0.102
PCB Land Pattern
(0.380 ± 0.015) (0.108 ± 0.004) 0 min / 0.305 max 7.620 ± 0.127 (0 min / 0.012 max) (0.300 ± 0.005) 1.70 (0.0669) 6.350 ± 0.127 9.398 ± 0.254 7.620 ± 0.254 0.635 ± 0.254 (0.250 ± 0.005) (0.370 ± 0.010) (0.300 ± 0.010) (0.025 ± 0.010) 8.70 (0.3425) Pin 1 2.540 ± 0.127 0.559 ± 0.076 0.254 ± 0.0127 (0.100 ± 0.005) (0.022 ± 0.003) (0.010 ± 0.0005) (exclusive of plating) 0.75 2.54 2.588 ± 0.025 (0.0255) (0.10) (0.102 ± 0.001) 0.457 ± 0.076 (0.018 ± 0.003) Dimensions 0.864 ± 0.102 mm (0.034 ± 0.004) (inches)
PLA172PTR Tape & Reel
330.2 DIA. (13.00 DIA.) W=16 (0.630) B =10.70 Top Cover 0 (0.421) Tape Thickness 0.102 MAX. (0.004 MAX.) A =10.90 P1=12.00 0 K =3.20 0 (0.429) (0.472) (0.126) Direction of feed K =2.70 1 (0.106) Embossed Carrier NOTES: 1. All dimensions carry tolerances of EIA Standard 481-2 Dimensions 2. The tape complies with all “Notes” for constant dimensions mm Embossment listed on page 5 of EIA-481-2 (inches)
