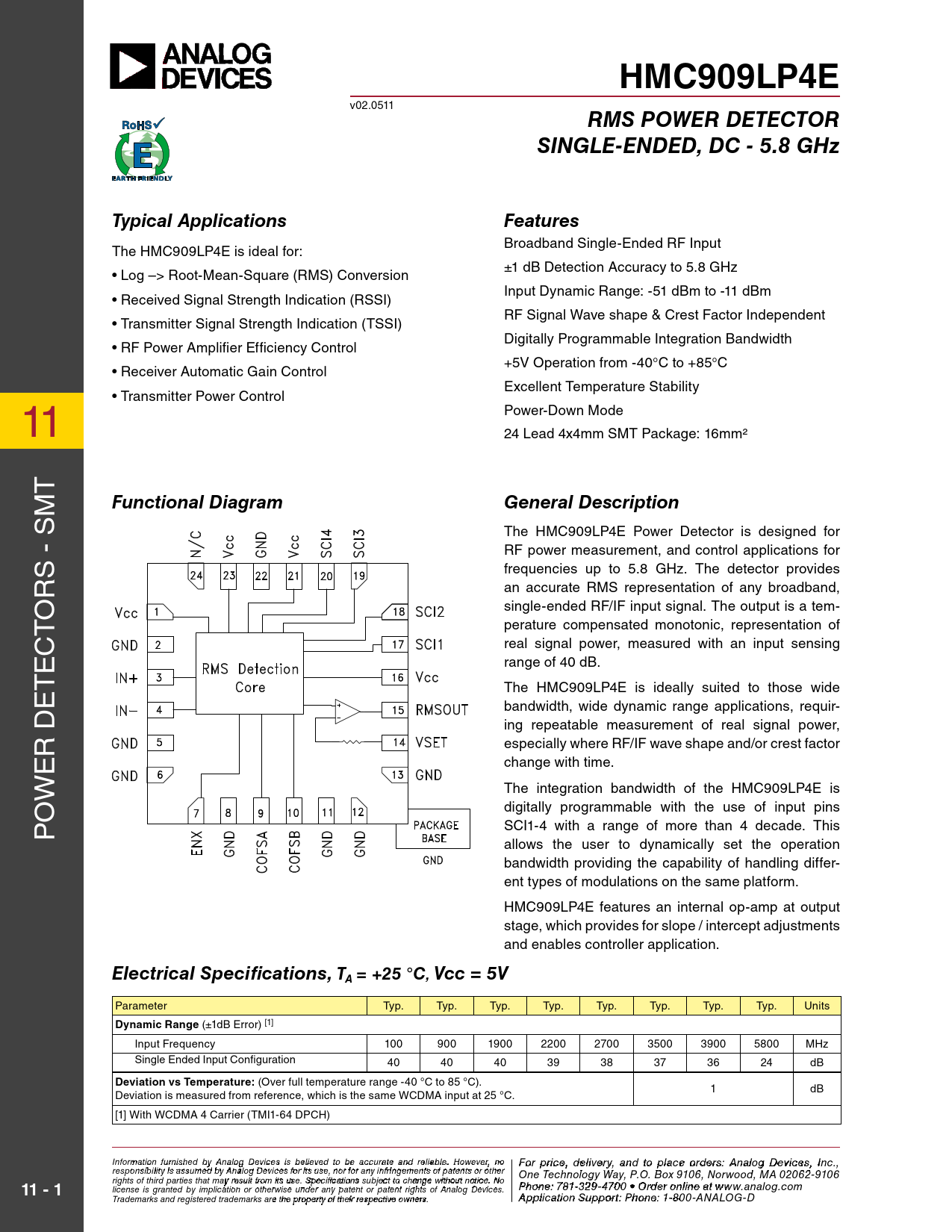

HMC909LP4E
v02.0511
RMS POWER DETECTOR SINGLE-ENDED, DC - 5.8 GHz Typical Applications Features
Broadband single-ended rF Input the HMc909LP4e is ideal for: ±1 dB Detection Accuracy to 5.8 GHz • Log –> Root-Mean-Square (RMS) Conversion Input Dynamic range: -51 dBm to -11 dBm • Received Signal Strength Indication (RSSI) rF signal wave shape & crest Factor Independent • Transmitter Signal Strength Indication (TSSI) Digital y Programmable Integration Bandwidth • RF Power Amplifier Efficiency Control +5V operation from -40°c to +85°c • Receiver Automatic Gain Control excellent temperature stability • Transmitter Power Control 11 Power-Down Mode 24 Lead 4x4mm sMt Package: 16mm² t M
Functional Diagram General Description
s the HMc909LP4e Power Detector is designed for - rF power measurement, and control applications for frequencies up to 5.8 GHz. the detector provides rs an accurate rMs representation of any broadband, o single-ended rF/IF input signal. the output is a tem- t perature compensated monotonic, representation of c real signal power, measured with an input sensing e range of 40 dB. t e the HMc909LP4e is ideal y suited to those wide bandwidth, wide dynamic range applications, requir- D ing repeatable measurement of real signal power, r especial y where rF/IF wave shape and/or crest factor e change with time. w the integration bandwidth of the HMc909LP4e is o digital y programmable with the use of input pins P scI1-4 with a range of more than 4 decade. this al ows the user to dynamical y set the operation bandwidth providing the capability of handling differ- ent types of modulations on the same platform. HMc909LP4e features an internal op-amp at output stage, which provides for slope / intercept adjustments and enables control er application.
Electrical Specifications, TA = +25 °C, Vcc = 5V
Parameter typ. typ. typ. typ. typ. typ. typ. typ. Units
Dynamic Range
(±1dB Error)

[1] Input Frequency 100 900 1900 2200 2700 3500 3900 5800 MHz Single Ended Input Configuration 40 40 40 39 38 37 36 24 dB
Deviation vs Temperature:
(Over full temperature range -40 °C to 85 °C). 1 dB Deviation is measured from reference, which is the same wcDMA input at 25 °c. [1] With WCDMA 4 Carrier (TMI1-64 DPCH) Info F rmoatr p ion rfiurcne is , d hed ebly ivAe n r al y a og D n evd t ice o p s is bla eli c eve o ed t rd o b e e ras: H ccuratite tiatne M d reli iac bl reo . w Ho av wev e C er, n o o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rporation, 20 Alpha Road, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd ho e ne r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o tniltie n .c e ao t m
