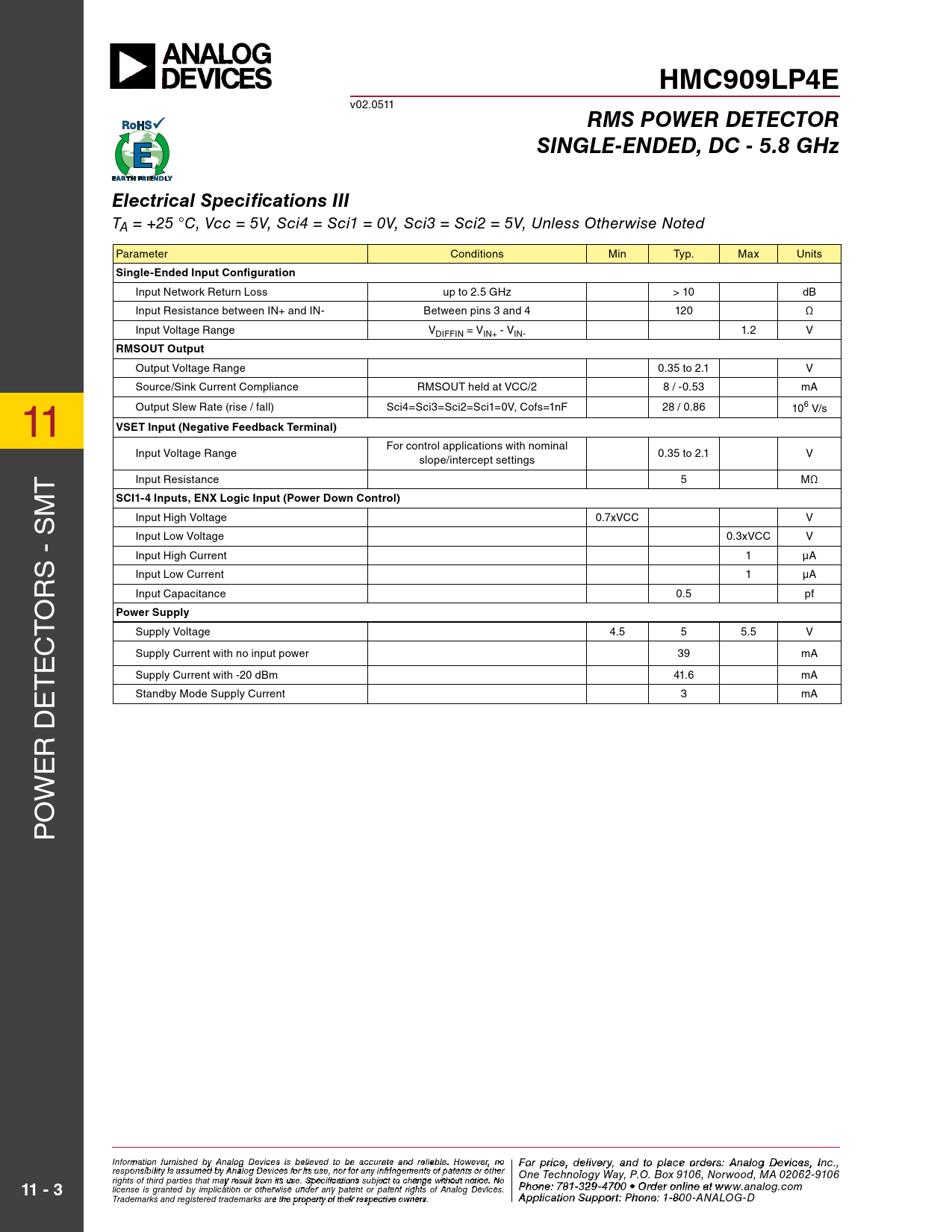

HMC909LP4E. RMS POWER DETECTOR. SINGLE-ENDED, DC - 5.8 GHz. Electrical Specifications III. Single-Ended Input Configuration
Model Line for this Datasheet
Text Version of Document
HMC909LP4E
v02.0511
RMS POWER DETECTOR SINGLE-ENDED, DC - 5.8 GHz Electrical Specifications III
TA = +25 °C, Vcc = 5V, Sci4 = Sci1 = 0V, Sci3 = Sci2 = 5V, Unless Otherwise Noted Parameter conditions Min typ. Max Units
Single-Ended Input Configuration
Input Network return Loss up to 2.5 GHz > 10 dB Input resistance between IN+ and IN- Between pins 3 and 4 120 Ω Input Voltage range VDIFFIN = VIN+ - VIN- 1.2 V
RMSOUT Output
output Voltage range 0.35 to 2.1 V source/sink current compliance rMsoUt held at Vcc/2 8 / -0.53 mA 11 Output Slew Rate (rise / fall) sci4=sci3=sci2=sci1=0V, cofs=1nF 28 / 0.86 106 V/s
VSET Input (Negative Feedback Terminal)
For control applications with nominal Input Voltage range 0.35 to 2.1 V slope/intercept settings t Input resistance 5 MΩ M
SCI1-4 Inputs, ENX Logic Input (Power Down Control)
s Input High Voltage 0.7xVcc V - Input Low Voltage 0.3xVcc V Input High current 1 μA rs Input Low current 1 μA Input capacitance 0.5 pf o t
Power Supply
c supply Voltage 4.5 5 5.5 V e supply current with no input power 39 mA t supply current with -20 dBm 41.6 mA e standby Mode supply current 3 mA D r e w o P Info F rmoatr p ion rfiurcne is , d hed ebly ivAe n r al y a og D n evd t ice o p s is bla eli c eve o ed t rd o b e e ras: H ccuratite tiatne M d reli iac bl reo . w Ho av wev e C er, n o o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rporation, 20 Alpha Road, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd ho e ne r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o tniltie n .c e ao t m
