Datasheet ADCMP361 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Single 0.275% Comparator and Reference with Dual Polarity Outputs |
| Pages / Page | 12 / 5 — Data Sheet. ADCMP361. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. OUT. … |
| Revision | B |
| File Format / Size | PDF / 296 Kb |
| Document Language | English |
Data Sheet. ADCMP361. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. OUT. GND. TOP VIEW. (Not to Scale)
Model Line for this Datasheet
Text Version of Document

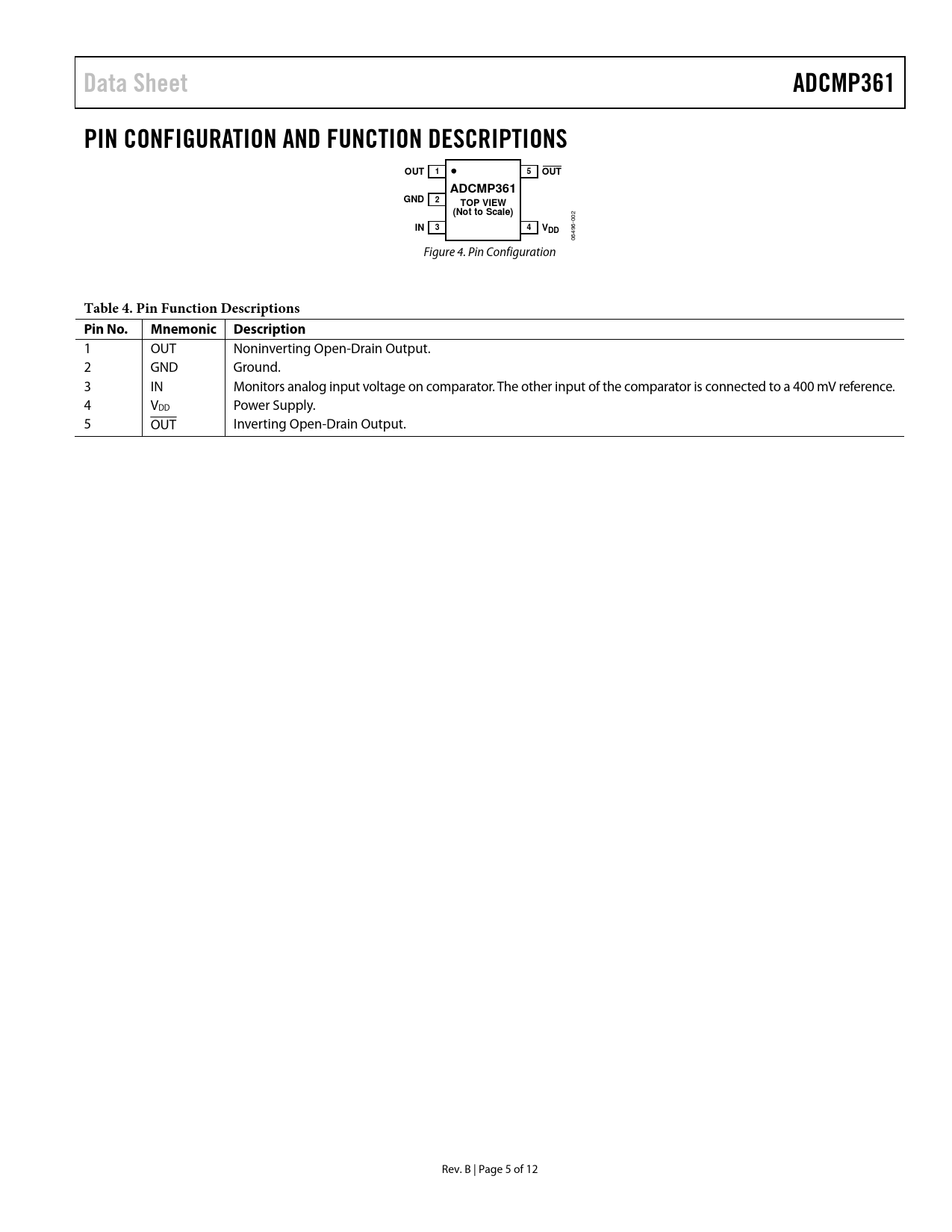

Data Sheet ADCMP361 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUT 1 5 OUT ADCMP361 GND 2 TOP VIEW (Not to Scale)
2 00
IN 3 4 V
6-
DD
49 06 Figure 4. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 OUT Noninverting Open-Drain Output. 2 GND Ground. 3 IN Monitors analog input voltage on comparator. The other input of the comparator is connected to a 400 mV reference. 4 VDD Power Supply. 5 OUT Inverting Open-Drain Output. Rev. B | Page 5 of 12 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings Thermal Characteristics ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Application Information Comparators and Internal Reference Power Supply Inputs Outputs Adding Hysteresis Outline Dimensions Ordering Guide Automative Products
