Datasheet ADP322, ADP323 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | Triple, 200 mA, Low Noise, High PSRR Voltage Regulator |
| Pages / Page | 24 / 1 — Triple, 200 mA, Low Noise,. High PSRR Voltage Regulator. Data Sheet. … |
| Revision | E |
| File Format / Size | PDF / 854 Kb |
| Document Language | English |

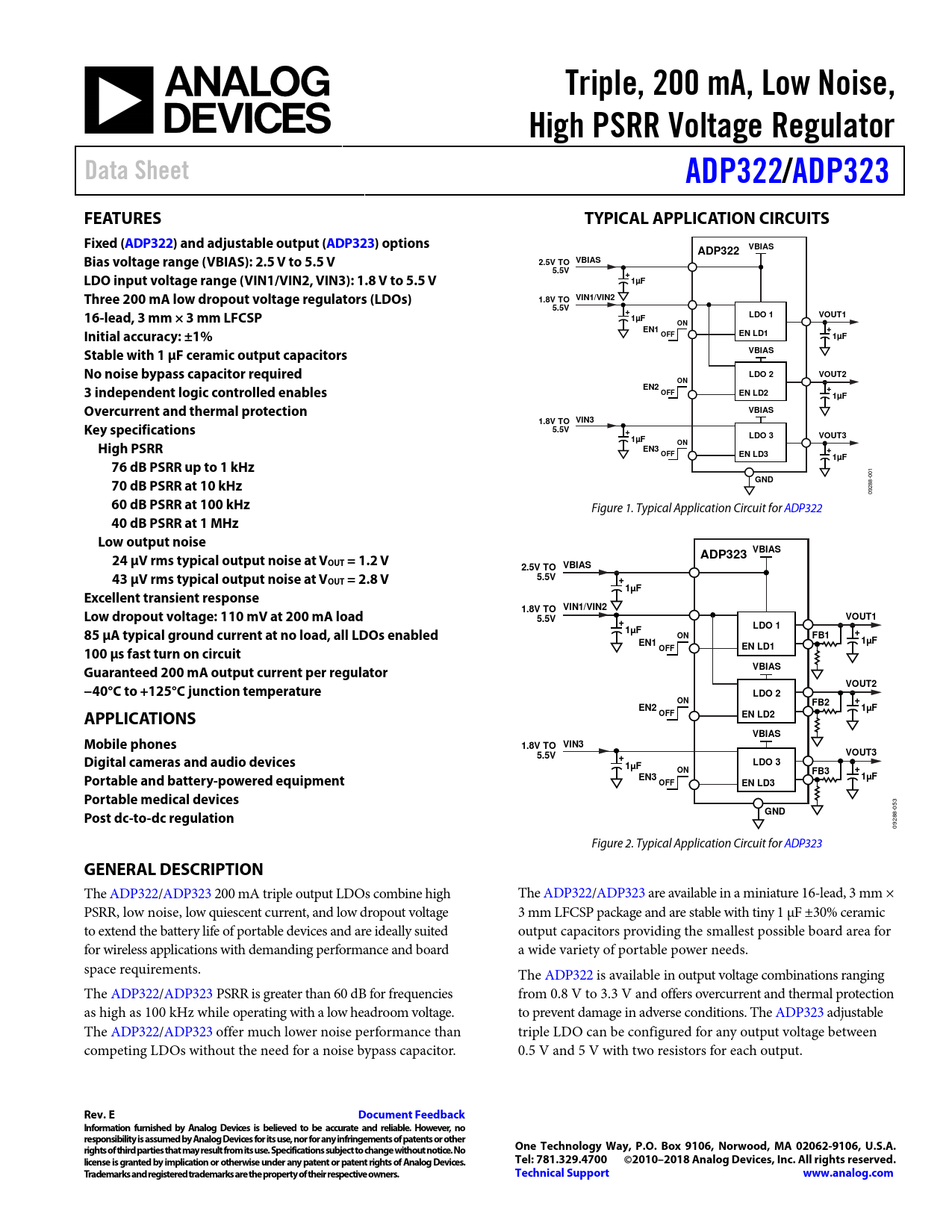

Triple, 200 mA, Low Noise,. High PSRR Voltage Regulator. Data Sheet. ADP322/. ADP323. FEATURES. TYPICAL APPLICATION CIRCUITS
Model Line for this Datasheet
Text Version of Document
Triple, 200 mA, Low Noise, High PSRR Voltage Regulator Data Sheet ADP322/ ADP323 FEATURES TYPICAL APPLICATION CIRCUITS Fixed (ADP322) and adjustable output (ADP323) options ADP322 VBIAS Bias voltage range (VBIAS): 2.5 V to 5.5 V VBIAS 2.5V TO 5.5V LDO input voltage range (VIN1/VIN2, VIN3): 1.8 V to 5.5 V + 1µF Three 200 mA low dropout voltage regulators (LDOs) VIN1/VIN2 1.8V TO 5.5V 16-lead, 3 mm × 3 mm LFCSP + LDO 1 VOUT1 1µF ON Initial accuracy: ±1% EN1 + OFF EN LD1 1µF Stable with 1 µF ceramic output capacitors VBIAS No noise bypass capacitor required LDO 2 VOUT2 ON 3 independent logic controlled enables EN2 + OFF EN LD2 1µF Overcurrent and thermal protection VBIAS VIN3 1.8V TO Key specifications 5.5V + LDO 3 VOUT3 1µF High PSRR ON EN3 + OFF EN LD3 1µF 76 dB PSRR up to 1 kHz
001
70 dB PSRR at 10 kHz GND
09288-
60 dB PSRR at 100 kHz
Figure 1. Typical Application Circuit for ADP322
40 dB PSRR at 1 MHz Low output noise VBIAS 24 µV rms typical output noise at V ADP323 OUT = 1.2 V VBIAS 2.5V TO 43 µV rms typical output noise at VOUT = 2.8 V 5.5V + 1µF Excellent transient response VIN1/VIN2 Low dropout voltage: 110 mV at 200 mA load 1.8V TO VOUT1 5.5V + LDO 1 85 µA typical ground current at no load, all LDOs enabled 1µF ON + FB1 1µF EN1 100 µs fast turn on circuit OFF EN LD1 Guaranteed 200 mA output current per regulator VBIAS −40°C to +125°C junction temperature VOUT2 LDO 2 ON + FB2 EN2 1µF APPLICATIONS OFF EN LD2 VBIAS Mobile phones VIN3 1.8V TO VOUT3 Digital cameras and audio devices 5.5V + LDO 3 1µF ON FB3 + Portable and battery-powered equipment EN3 1µF OFF EN LD3 Portable medical devices
053
Post dc-to-dc regulation GND
09288- Figure 2. Typical Application Circuit for ADP323
GENERAL DESCRIPTION
The ADP322/ADP323 200 mA triple output LDOs combine high The ADP322/ADP323 are available in a miniature 16-lead, 3 mm × PSRR, low noise, low quiescent current, and low dropout voltage 3 mm LFCSP package and are stable with tiny 1 µF ±30% ceramic to extend the battery life of portable devices and are ideally suited output capacitors providing the smallest possible board area for for wireless applications with demanding performance and board a wide variety of portable power needs. space requirements. The ADP322 is available in output voltage combinations ranging The ADP322/ADP323 PSRR is greater than 60 dB for frequencies from 0.8 V to 3.3 V and offers overcurrent and thermal protection as high as 100 kHz while operating with a low headroom voltage. to prevent damage in adverse conditions. The ADP323 adjustable The ADP322/ADP323 offer much lower noise performance than triple LDO can be configured for any output voltage between competing LDOs without the need for a noise bypass capacitor. 0.5 V and 5 V with two resistors for each output.
