Datasheet RH1086M (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 0.5A and 1.5A Low Dropout Positive Adjustable Regulators |
| Pages / Page | 6 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS. Reference Voltage. Ripple Rejection. … |
| Revision | D |
| File Format / Size | PDF / 150 Kb |
| Document Language | English |

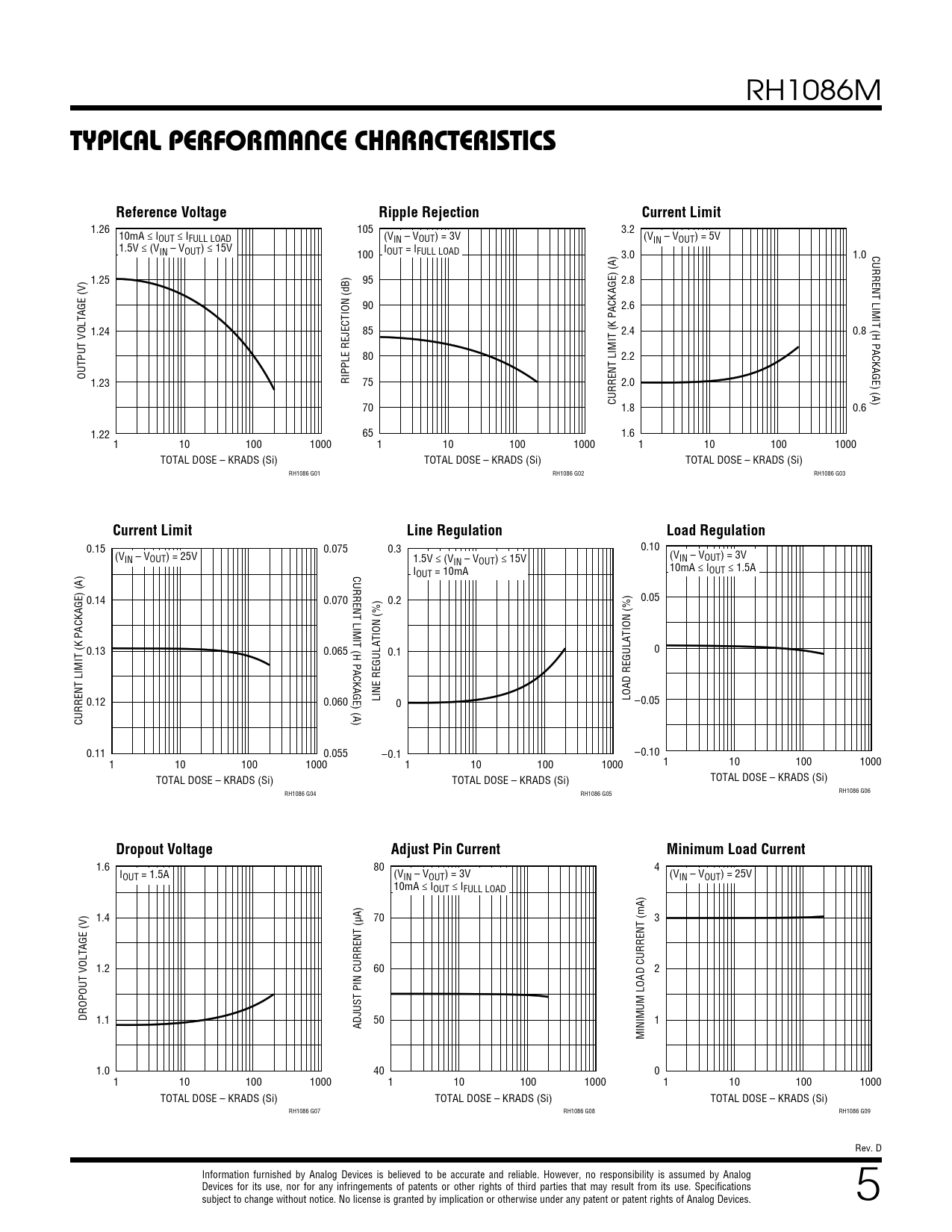

TYPICAL PERFORMANCE CHARACTERISTICS. Reference Voltage. Ripple Rejection. Current Limit. Line Regulation. Load Regulation
Model Line for this Datasheet
Text Version of Document
RH1086M
TYPICAL PERFORMANCE CHARACTERISTICS Reference Voltage Ripple Rejection Current Limit
1.26 105 3.2 10mA ≤ IOUT ≤ IFULL LOAD (VIN – VOUT) = 3V (VIN – VOUT) = 5V 1.5V ≤ (VIN – VOUT) ≤ 15V 100 IOUT = IFULL LOAD 3.0 1.0 CURRENT LIMIT (H PACKAGE) (A) 1.25 95 2.8 90 2.6 1.24 85 2.4 0.8 80 2.2 OUTPUT VOLTAGE (V) 1.23 RIPPLE REJECTION (dB) 75 2.0 70 CURRENT LIMIT (K PACKAGE) (A) 1.8 0.6 1.22 65 1.6 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE – KRADS (Si) TOTAL DOSE – KRADS (Si) TOTAL DOSE – KRADS (Si) RH1086 G01 RH1086 G02 RH1086 G03
Current Limit Line Regulation Load Regulation
0.15 0.075 0.10 0.3 (VIN – VOUT) = 25V (V 1.5V ≤ (V IN – VOUT) = 3V IN – VOUT) ≤ 15V CURRENT LIMIT (H PACKAGE) (A) 10mA ≤ I I OUT ≤ 1.5A OUT = 10mA 0.14 0.070 0.05 0.2 0.13 0.065 0 0.1 0.12 0.060 LINE REGULATION (%) LOAD REGULATION (%) –0.05 0 CURRENT LIMIT (K PACKAGE) (A) 0.11 0.055 –0.10 –0.1 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE – KRADS (Si) TOTAL DOSE – KRADS (Si) TOTAL DOSE – KRADS (Si) RH1086 G04 RH1086 G06 RH1086 G05
Dropout Voltage Adjust Pin Current Minimum Load Current
1.6 80 4 IOUT = 1.5A (VIN – VOUT) = 3V (VIN – VOUT) = 25V 10mA ≤ IOUT ≤ IFULL LOAD 1.4 70 3 1.2 60 2 DROPOUT VOLTAGE (V) 1.1 ADJUST PIN CURRENT (µA) 50 1 MINIMUM LOAD CURRENT (mA) 1.0 40 0 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE – KRADS (Si) TOTAL DOSE – KRADS (Si) TOTAL DOSE – KRADS (Si) RH1086 G07 RH1086 G08 RH1086 G09 Rev. D Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license F o is r more granted in by f ormation implication w orw w.a other nalo wise g.com under any patent or patent rights of Analog Devices. 5 Document Outline Description Burn-In Circuit Package Information Absolute Maximum Ratings Preconditioning Table 1: Electrical Characteristics Table 1a: Electrical Characteristics Table 2: Electrical Test Requirements Total Dose Bias Circuit Typical Performance Characteristics Revision History
