Datasheet EFM8LB1 (Silicon Labs) - 5
| Manufacturer | Silicon Labs |
| Description | EFM8 Laser Bee Family |
| Pages / Page | 77 / 5 — Ordering Part Number. Flash Memory (kB). RAM (Bytes). Digital Port I/Os … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |
Ordering Part Number. Flash Memory (kB). RAM (Bytes). Digital Port I/Os (Total). ADC0 Channels. Voltage DACs. Comparator 0 Inputs
Model Line for this Datasheet
- EFM8LB10F16E-C-QFN24 EFM8LB10F16E-C-QFN32 EFM8LB10F16E-C-QFP32 EFM8LB10F16E-C-QSOP24 EFM8LB10F16ES0-C-QFN24 EFM8LB10F16ES0-C-QFN32 EFM8LB10F16ES1-C-QFN24 EFM8LB10F16ES1-C-QFN32 EFM8LB11F16E-C-QFN24 EFM8LB11F16E-C-QFN32 EFM8LB11F16E-C-QFP32 EFM8LB11F16E-C-QSOP24 EFM8LB11F16ES0-C-QFN24 EFM8LB11F16ES0-C-QFN32 EFM8LB11F16ES1-C-QFN24 EFM8LB11F16ES1-C-QFN32 EFM8LB11F32E-C-QFN24 EFM8LB11F32E-C-QFN32 EFM8LB11F32E-C-QFP32 EFM8LB11F32E-C-QSOP24 EFM8LB11F32ES0-C-QFN24 EFM8LB11F32ES0-C-QFN32 EFM8LB11F32ES1-C-QFN24 EFM8LB11F32ES1-C-QFN32 EFM8LB12F32E-C-QFN24 EFM8LB12F32E-C-QFN32 EFM8LB12F32E-C-QFP32 EFM8LB12F32E-C-QSOP24 EFM8LB12F32ES0-C-QFN24 EFM8LB12F32ES0-C-QFN32 EFM8LB12F32ES1-C-QFN24 EFM8LB12F32ES1-C-QFN32 EFM8LB12F64E-C-QFN24 EFM8LB12F64E-C-QFN32 EFM8LB12F64E-C-QFP32 EFM8LB12F64E-C-QSOP24 EFM8LB12F64ES0-C-QFN24 EFM8LB12F64ES0-C-QFN32 EFM8LB12F64ES1-C-QFN24 EFM8LB12F64ES1-C-QFN32
Text Version of Document

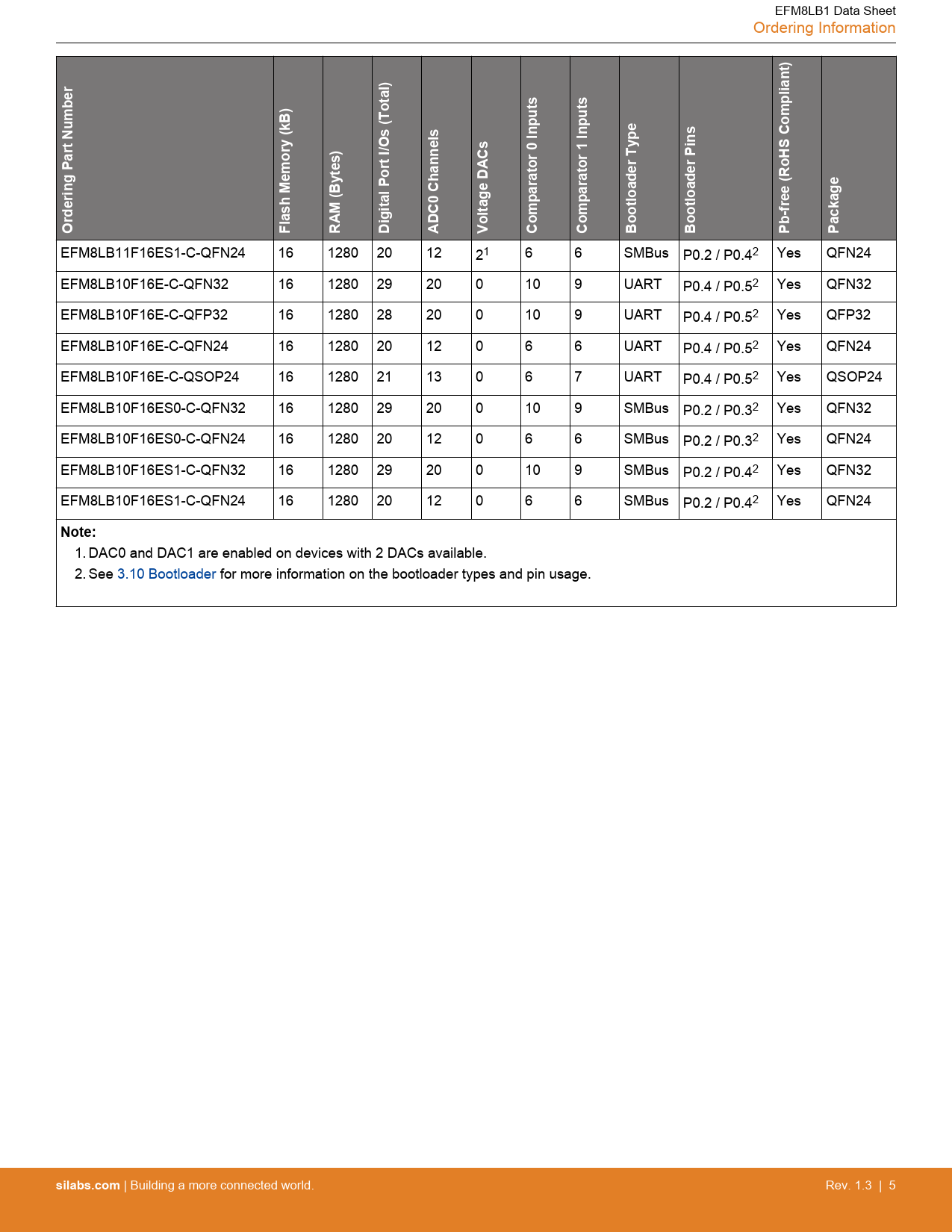

link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 16 EFM8LB1 Data Sheet Ordering Information
Ordering Part Number Flash Memory (kB) RAM (Bytes) Digital Port I/Os (Total) ADC0 Channels Voltage DACs Comparator 0 Inputs Comparator 1 Inputs Bootloader Type Bootloader Pins Pb-free (RoHS Compliant) Package
EFM8LB11F16ES1-C-QFN24 16 1280 20 12 21 6 6 SMBus P0.2 / P0.42 Yes QFN24 EFM8LB10F16E-C-QFN32 16 1280 29 20 0 10 9 UART P0.4 / P0.52 Yes QFN32 EFM8LB10F16E-C-QFP32 16 1280 28 20 0 10 9 UART P0.4 / P0.52 Yes QFP32 EFM8LB10F16E-C-QFN24 16 1280 20 12 0 6 6 UART P0.4 / P0.52 Yes QFN24 EFM8LB10F16E-C-QSOP24 16 1280 21 13 0 6 7 UART P0.4 / P0.52 Yes QSOP24 EFM8LB10F16ES0-C-QFN32 16 1280 29 20 0 10 9 SMBus P0.2 / P0.32 Yes QFN32 EFM8LB10F16ES0-C-QFN24 16 1280 20 12 0 6 6 SMBus P0.2 / P0.32 Yes QFN24 EFM8LB10F16ES1-C-QFN32 16 1280 29 20 0 10 9 SMBus P0.2 / P0.42 Yes QFN32 EFM8LB10F16ES1-C-QFN24 16 1280 20 12 0 6 6 SMBus P0.2 / P0.42 Yes QFN24
Note:
1. DAC0 and DAC1 are enabled on devices with 2 DACs available. 2. See 3.10 Bootloader for more information on the bootloader types and pin usage.
