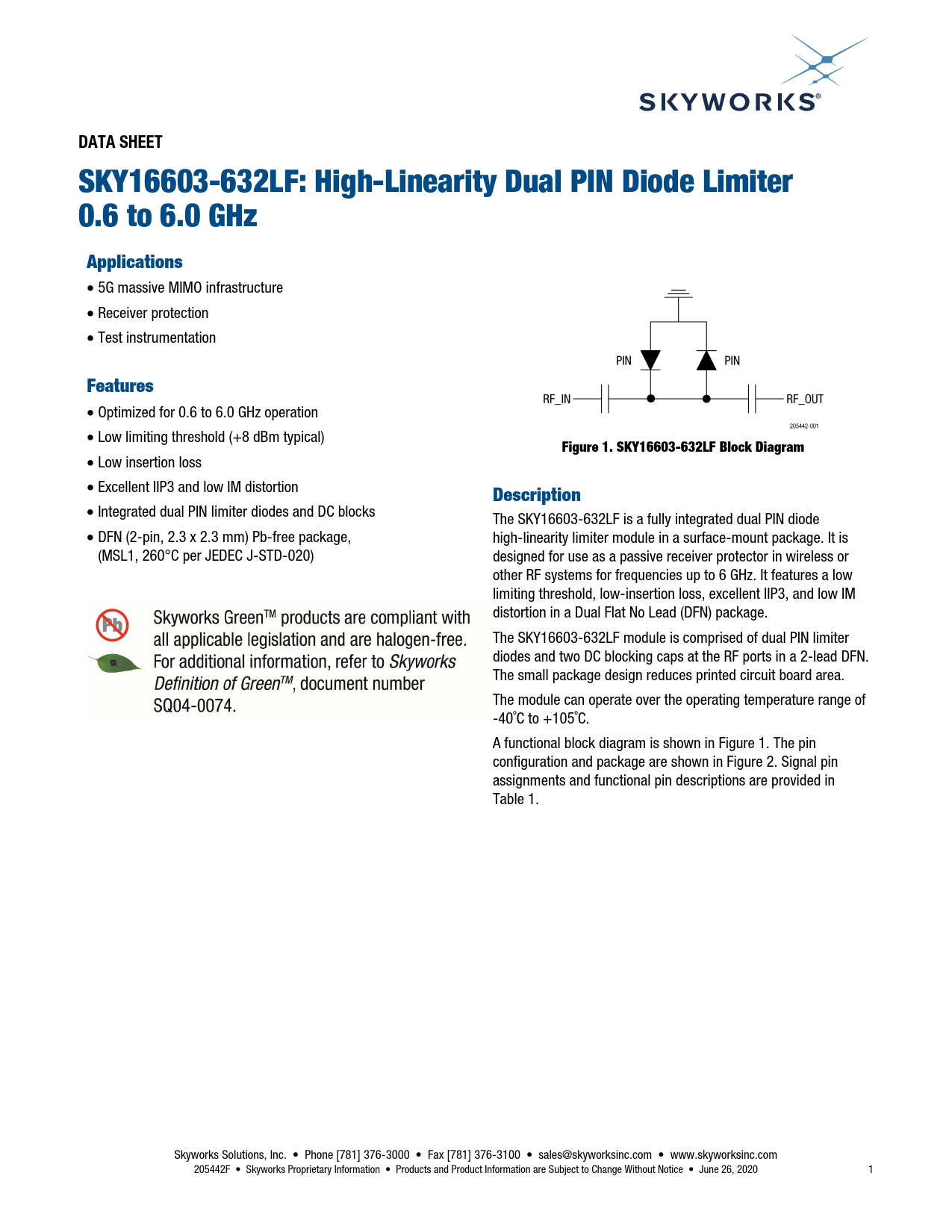

DATA SHEET. SKY16603-632LF: High-Linearity Dual PIN Diode Limiter 0.6 to 6.0 GHz. Applications. Features
Model Line for this Datasheet
Text Version of Document
DATA SHEET SKY16603-632LF: High-Linearity Dual PIN Diode Limiter 0.6 to 6.0 GHz Applications
• 5G massive MIMO infrastructure • Receiver protection • Test instrumentation
Features
• Optimized for 0.6 to 6.0 GHz operation • Low limiting threshold (+8 dBm typical)
Figure 1. SKY16603-632LF Block Diagram
• Low insertion loss • Excellent IIP3 and low IM distortion
Description
• Integrated dual PIN limiter diodes and DC blocks The SKY16603-632LF is a fully integrated dual PIN diode • DFN (2-pin, 2.3 x 2.3 mm) Pb-free package, high-linearity limiter module in a surface-mount package. It is (MSL1, 260°C per JEDEC J-STD-020) designed for use as a passive receiver protector in wireless or other RF systems for frequencies up to 6 GHz. It features a low
limiting threshold, low-insertion loss, excellent IIP3, and low IM distortion in a Dual Flat No Lead (DFN) package. The SKY16603-632LF module is comprised of dual PIN limiter diodes and two DC blocking caps at the RF ports in a 2-lead DFN. The small package design reduces printed circuit board area. The module can operate over the operating temperature range of -40˚C to +105˚C. A functional block diagram is shown in Figure 1. The pin configuration and package are shown in Figure 2. Signal pin assignments and functional pin descriptions are provided in Table 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 205442F • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • June 26, 2020 1
