Datasheet SKY16603-632LF (Skyworks) - 2
| Manufacturer | Skyworks |
| Description | High-Linearity Dual PIN Diode Limiter |
| Pages / Page | 10 / 2 — DATA SHEET ● SKY16603-632LF: High-Linearity Dual PIN Diode Limiter 0.6 to … |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |

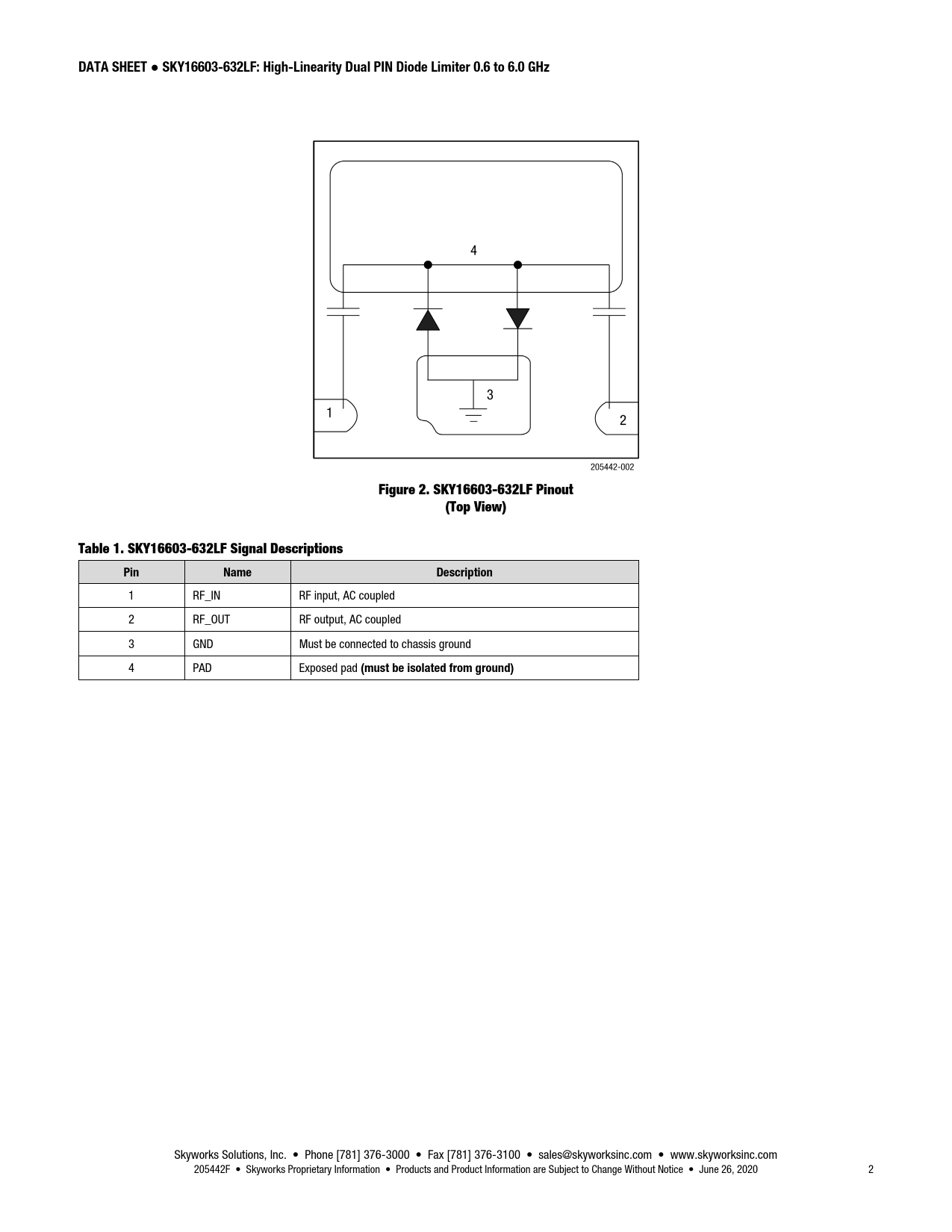

DATA SHEET ● SKY16603-632LF: High-Linearity Dual PIN Diode Limiter 0.6 to 6.0 GHz. Figure 2. SKY16603-632LF Pinout
Model Line for this Datasheet
Text Version of Document
DATA SHEET ● SKY16603-632LF: High-Linearity Dual PIN Diode Limiter 0.6 to 6.0 GHz Figure 2. SKY16603-632LF Pinout (Top View) Table 1. SKY16603-632LF Signal Descriptions Pin Name Description
1 RF_IN RF input, AC coupled 2 RF_OUT RF output, AC coupled 3 GND Must be connected to chassis ground 4 PAD Exposed pad
(must be isolated from ground)
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 205442F • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • June 26, 2020 2
1 RF_IN RF input, AC coupled 2 RF_OUT RF output, AC coupled 3 GND Must be connected to chassis ground 4 PAD Exposed pad
